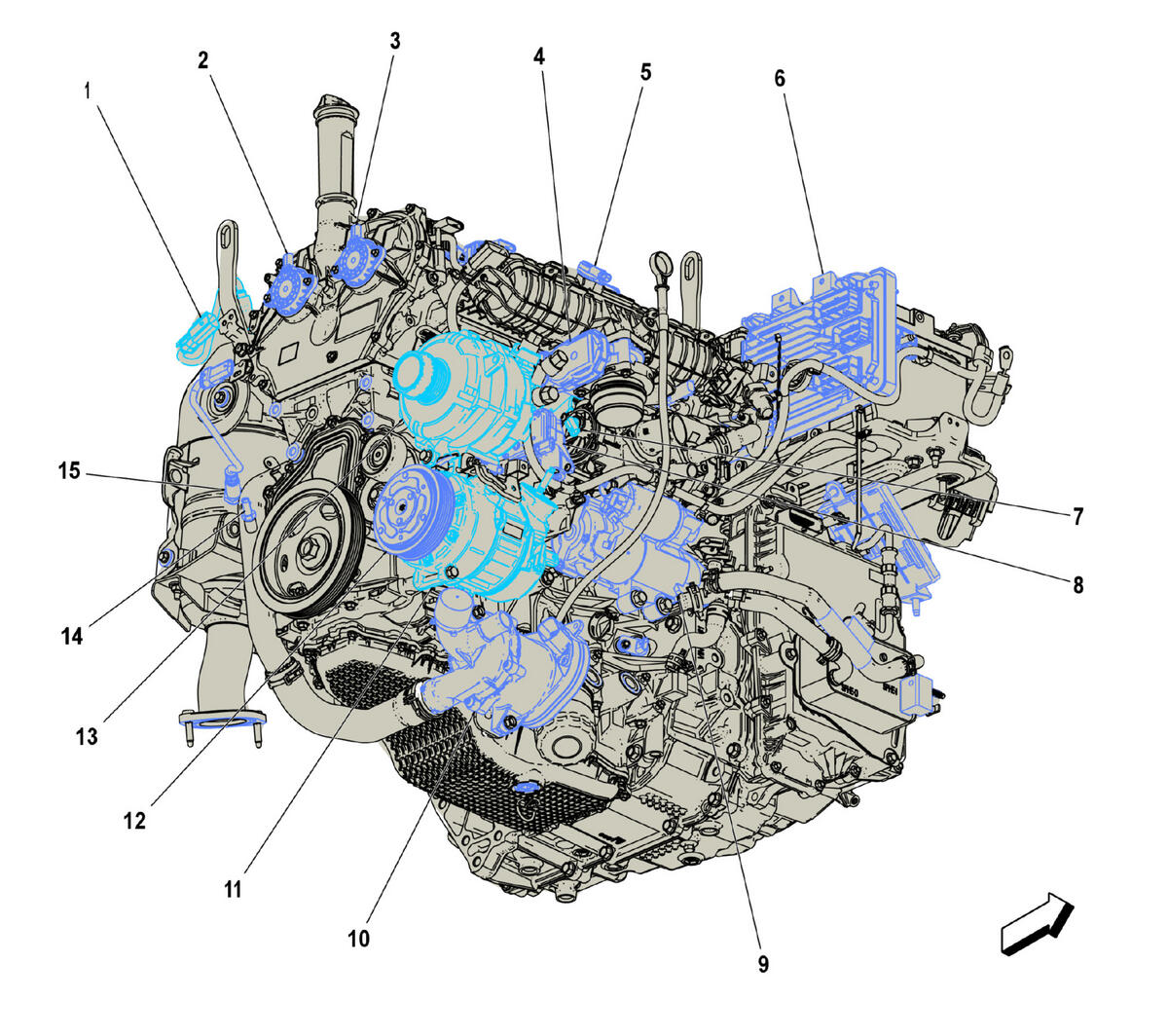

Left Side of Engine Components

Courtesy of GENERAL MOTORS COMPANY

Components
1. B52A Heated Oxygen Sensor 1 (LSY) B52A Heated Oxygen Sensor 1 (LSY)
2. Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY) Q6E Camshaft Position Actuator Solenoid Valve - Exhaust (LSY)
3. Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY) Q6F Camshaft Position Actuator Solenoid Valve - Intake (LSY)
4. Q38 Throttle Body Q38 Throttle Body
5. B65 Intake Manifold Pressure and Air Temperature Sensor B65 Intake Manifold Pressure and Air Temperature Sensor (LSY)
6. K20 Engine Control Module K20 Engine Control Module X1 (LGX) , or K20 Engine Control Module X1 (LSY) , or K20 Engine Control Module X2 (LGX) , or K20 Engine Control Module X2 (LSY) , or K20 Engine Control Module X3 (LGX) , or K20 Engine Control Module X3 (LSY) .
7. B34B Engine Coolant Temperature Sensor 2 (LSY) B34B Engine Coolant Temperature Sensor 2 (LSY)
8. Q97 Engine Coolant Flow Control Valve (LSY) Q97 Engine Coolant Flow Control Valve (LSY)
9. M64 Starter Motor M64 Starter Motor X1 , or M64 Starter Motor X2
10. G59 Engine Coolant Pump G59 Engine Coolant Pump (LSY)
11. Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve
12. Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch
13. G13 Generator (LSY/LGX) G13 Generator X1 , or G13 Generator X2 (LGX) , or G13 Generator X2 (LSY) .
14. B34A Engine Coolant Temperature Sensor 1 (LSY) B34A Engine Coolant Temperature Sensor 1 (LSY)
15. B52B Heated Oxygen Sensor 2 (LSY) B52B Heated Oxygen Sensor 2 (LSY)
