Rear Closure Hands Free Module Replacement

Courtesy of GENERAL MOTORS COMPANY

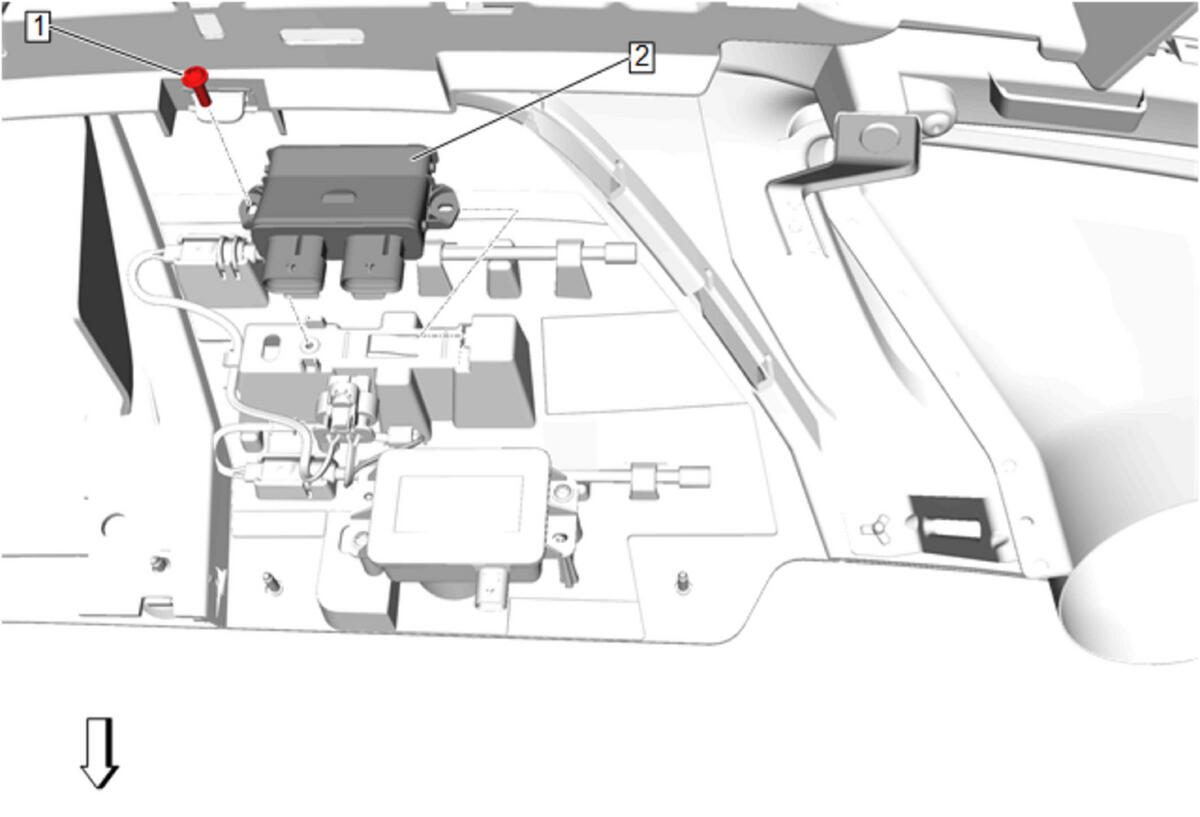

Callout	Component Name
Preliminary Procedure
1	Rear Closure Hands Free Module Bolt CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Rear Closure Hands Free Module Procedure Disconnect all electrical connectors. Release the retaining tab and slide the module to the left and remove.

Callout

Component Name

Preliminary Procedure

Rear Closure Hands Free Module Bolt

CAUTION:

Tighten
2.5 N.m (22 lb in)

Rear Closure Hands Free Module

Procedure
