Radio Control Assembly Replacement

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

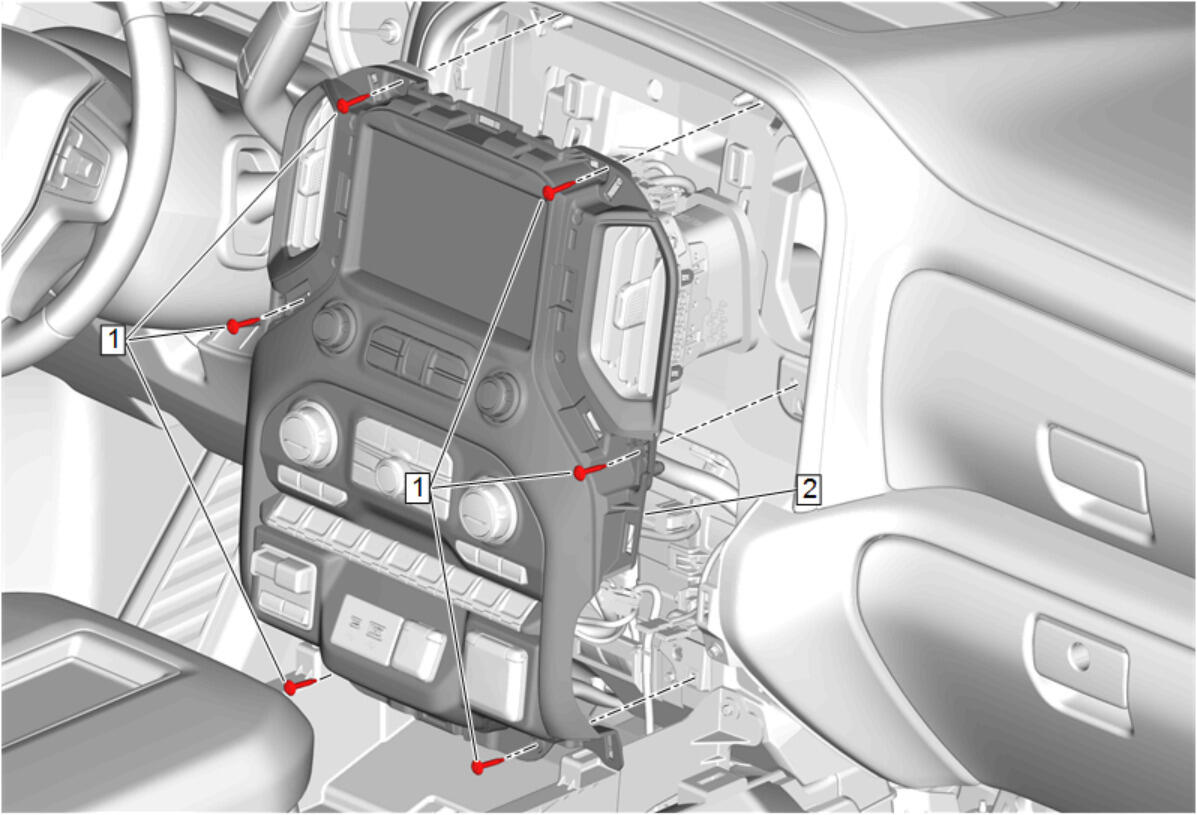

Callout	Component Name
Preliminary Procedures Instrument Panel Trim Plate Replacement Instrument Panel Lower Trim Panel Replacement (with Front Floor Console)Instrument Panel Lower Trim Panel Replacement (without Front Floor Console)
1	Radio Control Bolt [6x] CAUTION: Fastener Caution tighten 2.5N.m (22 lb in)
2	Radio Control Assembly Procedure Disconnect the electrical connectors. Transfer components as necessary.

Callout

Component Name

Preliminary Procedures

Instrument Panel Trim Plate Replacement
Instrument Panel Lower Trim Panel Replacement (with Front Floor Console)Instrument Panel Lower Trim Panel Replacement (without Front Floor Console)

Radio Control Bolt [6x]

CAUTION:

Fastener Caution

tighten
2.5N.m (22 lb in)

Radio Control Assembly

Procedure

Disconnect the electrical connectors.
Transfer components as necessary.
