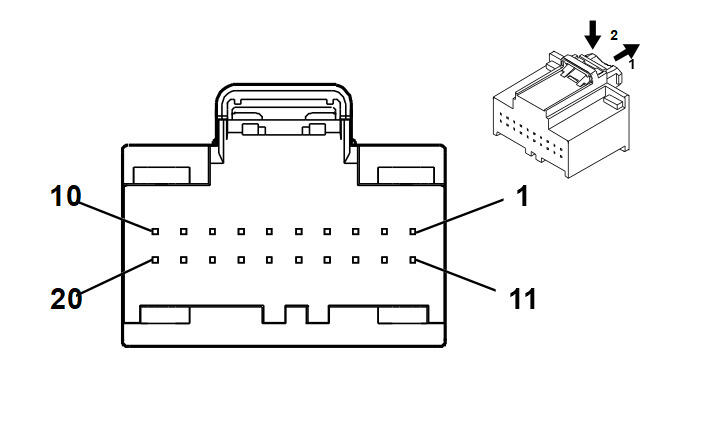

K84 Keyless Entry Control Module X1

WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Connector Part Information

Harness Type: Body
OEM Connector: 13525992
Service Connector: 13525992
Description: 20-Way F 0.64 Series (BN)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray Name	Core Crimp	Insulation Crimp
I	13575742	J-35616-64B (LT BU)	J-38125-215A	SAIT-A03T-M064	Yazaki 14	P	P
II	13575867	J-35616-64B (LT BU)	J-38125-215A	SAIT-A03T-M064	Yazaki 14	P	P

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	0.35	GN/PU	1601	Steering Column Lock Signal	II	BTM+N06
2	0.5	RD/YE	4340	Secondary Fused Battery Positive Voltage 43	I	-
3	0.35	GN	5060	Low Speed GMLAN Serial Data	II	BTM
4	-	-	-	Not Occupied	-	-
5	0.35	PU/YE	4	Accessory Voltage	II	BTM
6	-	-	-	Not Occupied	-	-
7	0.35	GY/GN	4083	Retained Accessory Power Relay 2 Coil Control	II	BTM
8	-	-	-	Not Occupied	-	-
9	0.35	WH/YE	3574	Driver Door Open Switch Signal	II	BTM+(EPH/N06)
10	0.35	YE/BU	4086	Ignition Mode Switch Challenge Active Signal	II	BTM
11	0.35	GN/BK	3558	Ignition Mode Switch Signal 2	II	BTM
12	0.35	BK/GY	3559	Passive Start Switch 2 Low Reference	II	BTM
13	0.35	PU/BK	3	Run/Crank Ignition 1 Voltage	II	BTM
14	0.75	BK/WH	1351	Ground 13	I	-
15	0.35	GY/BK	3555	Interior Keyless Entry Antenna 2 Low Signal	II	-
16	0.35	BN/BK	3552	Interior Keyless Entry Antenna 1 High Signal	II	BTM
17	0.35	WH	3553	Interior Keyless Entry Antenna 1 Low Signal	II	BTM
18	0.5	WH/GN	3556	Interior Keyless Entry Antenna 3 High Signal	I	BTM
19	0.5	GN	3557	Interior Keyless Entry Antenna 3 Low Signal	I	BTM
20	0.35	BU	3554	Interior Keyless Entry Antenna 2 High Signal	II	-
