K85 Passenger Presence Module
WARNING: This page is about a different car, the 2020 Cadillac XT5. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

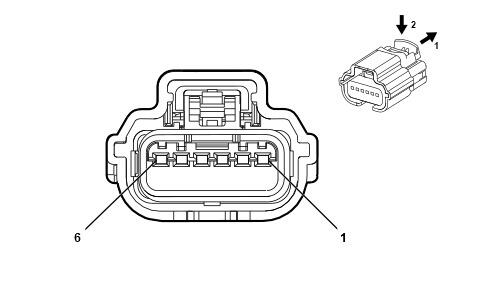

Connector Part Information
- Harness Type: Passenger Seat
- OEM Connector: 31404-7132
- Service Connector: Service by Harness - See Part Catalog
- Description: 6-Way F 64 Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
No Tool Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
RD/WH |
2040 |
Secondary Fused Battery Positive Voltage 20 |
I |
- |
| 2 |
0.35 |
GN |
5060 |
Low Speed GMLAN Serial Data |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
BK/WH |
651 |
Ground 6 |
I |
- |
| 5 |
0.35 |
BU/RD |
5612 |
Passenger Seat Belt Tension Sensor Voltage Reference |
I |
- |
| 6 |
0.35 |
PU/OG |
5611 |
Passenger Seat Belt Tension Sensor Signal |
I |
- |
