Serial Data Gateway Module Replacement

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

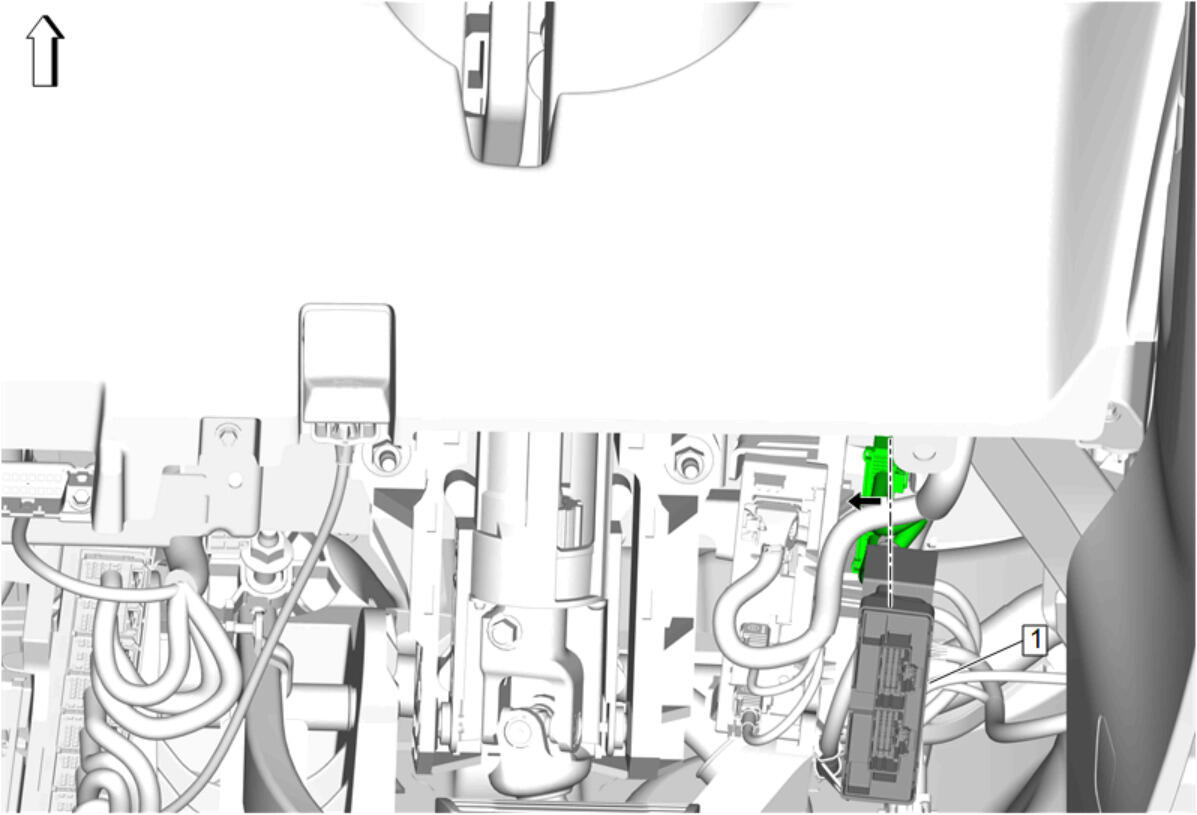

Callout	Component Name
Preliminary Procedure Floor Front Air Outlet Duct Replacement - Left Side
1	Serial Data Gateway Module Procedure Disconnect the electrical connectors. Release the retaining tab. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Floor Front Air Outlet Duct Replacement - Left Side

Serial Data Gateway Module

Procedure

Disconnect the electrical connectors.
Release the retaining tab.
Perform the necessary programming and setup procedure:Control Module References
