Video Processing Module Replacement

WARNING: This page is about a different car, the 2021 GMC Sierra 3500 HD and 2021 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

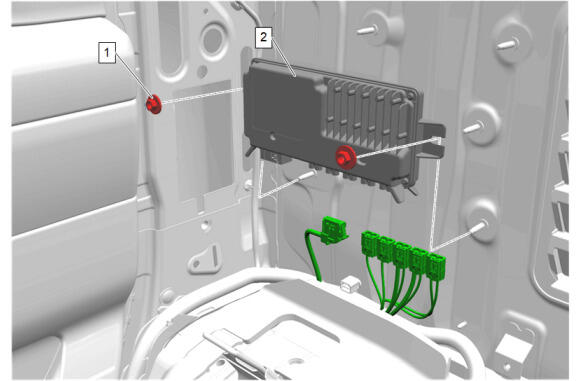

Callout	Component Name
Preliminary Procedure Body Lock Pillar Garnish Molding Replacement (Crew Cab, Double Cab)Body Lock Pillar Garnish Molding Replacement (Regular Cab)
1	Video Processing Module Nut[ 2x ] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Video Processing Module Procedure Disconnect the electrical connectors. Reposition the wiring harness. Perform the necessary programming and setup procedure:Control Module References

Callout

Component Name

Preliminary Procedure
Body Lock Pillar Garnish Molding Replacement (Crew Cab, Double Cab)Body Lock Pillar Garnish Molding Replacement (Regular Cab)

Video Processing Module Nut[ 2x ]

CAUTION:

Fastener Caution

Tighten
9 N.m (80 lb in)

Video Processing Module

Procedure

Disconnect the electrical connectors.
Reposition the wiring harness.
Perform the necessary programming and setup procedure:Control Module References
