Radio Control Assembly Replacement (IOS, IOT)
WARNING: This page is about a different car, the 2021 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.

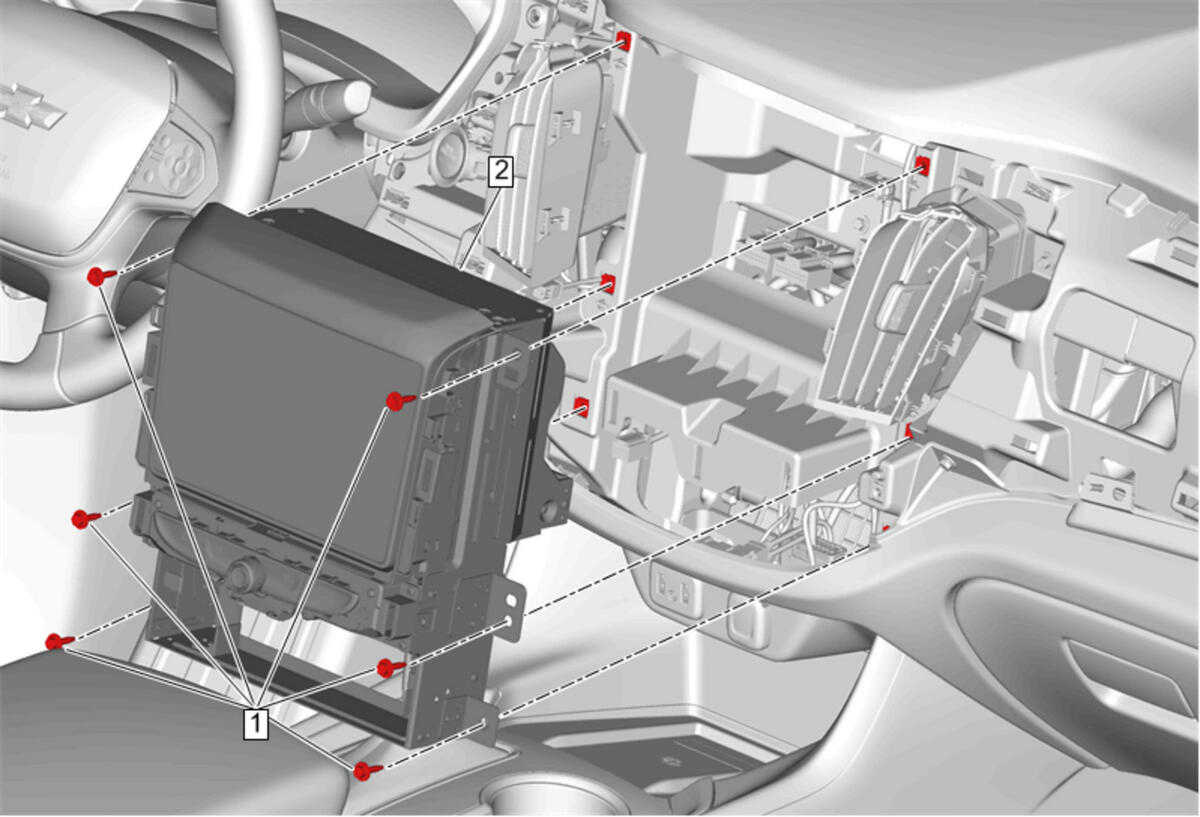

| Callout | Component Name |
|---|---|
| Preliminary Procedure Heater and Air Conditioning User Interface Control Replacement |
|
| 1 | Radio Control Bolt [ 6x ]
CAUTION:
Tighten 2.5 N.m (22 lb in) |
| 2 | Radio Control Assembly Procedure Disconnect the electrical connectors. |
