M17 Liftgate Motor Assembly (TB5/TC2)
WARNING: This page is about a different car, the 2021 Chevrolet Traverse. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

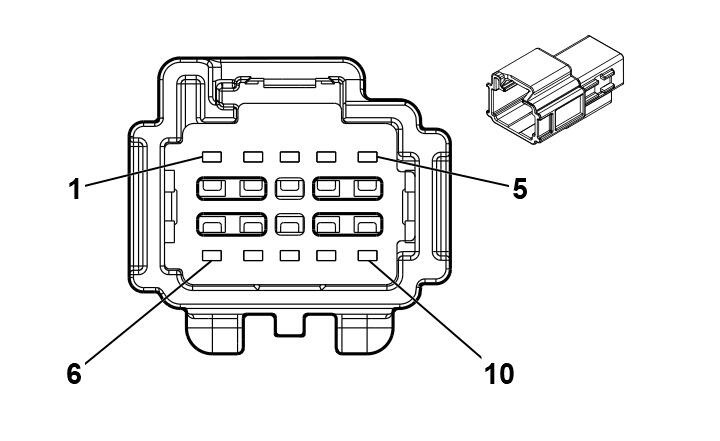

Connector Part Information
- Harness Type: Body
- OEM Connector: 13530136
- Service Connector: 13530136
- Description: 10-Way M 1.2 MCON Series (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
84726946 |
J-35616-17 (LT GN) |
J-38125-215A |
| II |
84726946 |
J-35616-17 (LT GN) |
J-38125-36 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
1.5 |
BN / WH |
5799 |
Liftgate Motor Close Control |
II |
TB5/TC2 |
| 2 |
0.35 |
BN / RD |
5803 |
Liftgate Position Sensor Voltage Reference |
I |
TB5/TC2 |
| 3 |
0.35 |
BK / GN |
5804 |
Liftgate Position Sensor Low Reference |
I |
TB5/TC2 |
| 4 |
0.35 |
BU / WH |
5805 |
Liftgate Position Sensor Signal 1 |
I |
TB5/TC2 |
| 5 |
1.5 |
WH |
5798 |
Liftgate Motor Open Control |
II |
TB5/TC2 |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
BN / YE |
5806 |
Liftgate Position Sensor Signal 2 |
I |
TB5/TC2 |
| 8 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
