Night Vision Control Module Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Knee Bolster Replacement

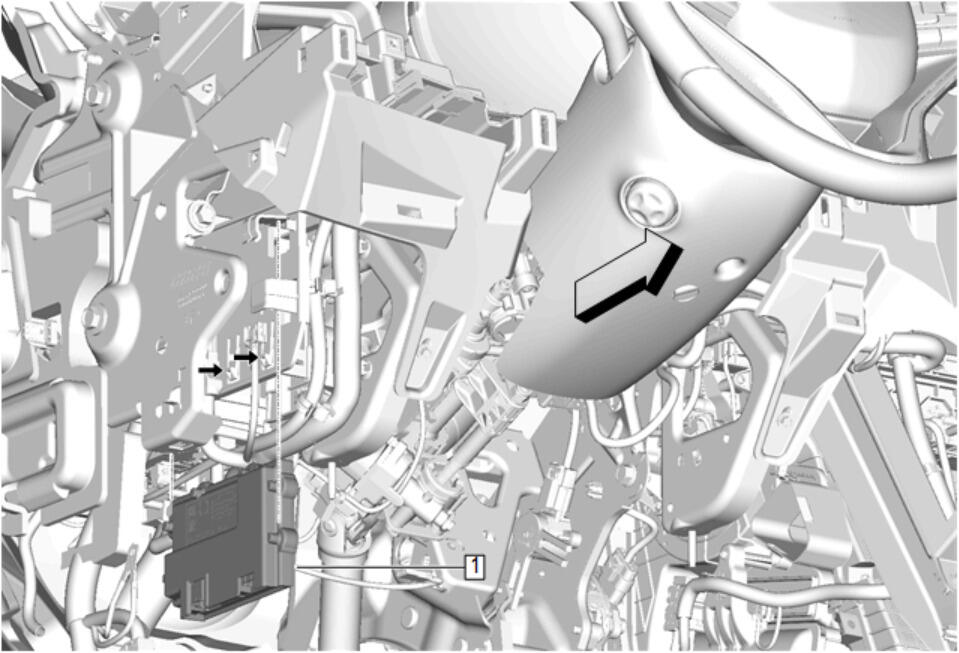

1	Night Vision Module Procedure Disconnect the electrical Connector s. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Instrument Panel Knee Bolster Replacement

Night Vision Module

Procedure

Disconnect the electrical Connector s.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
