Restraints Control Module Replacement

WARNING: This page is about a different car, the 2021 Cadillac XT6. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

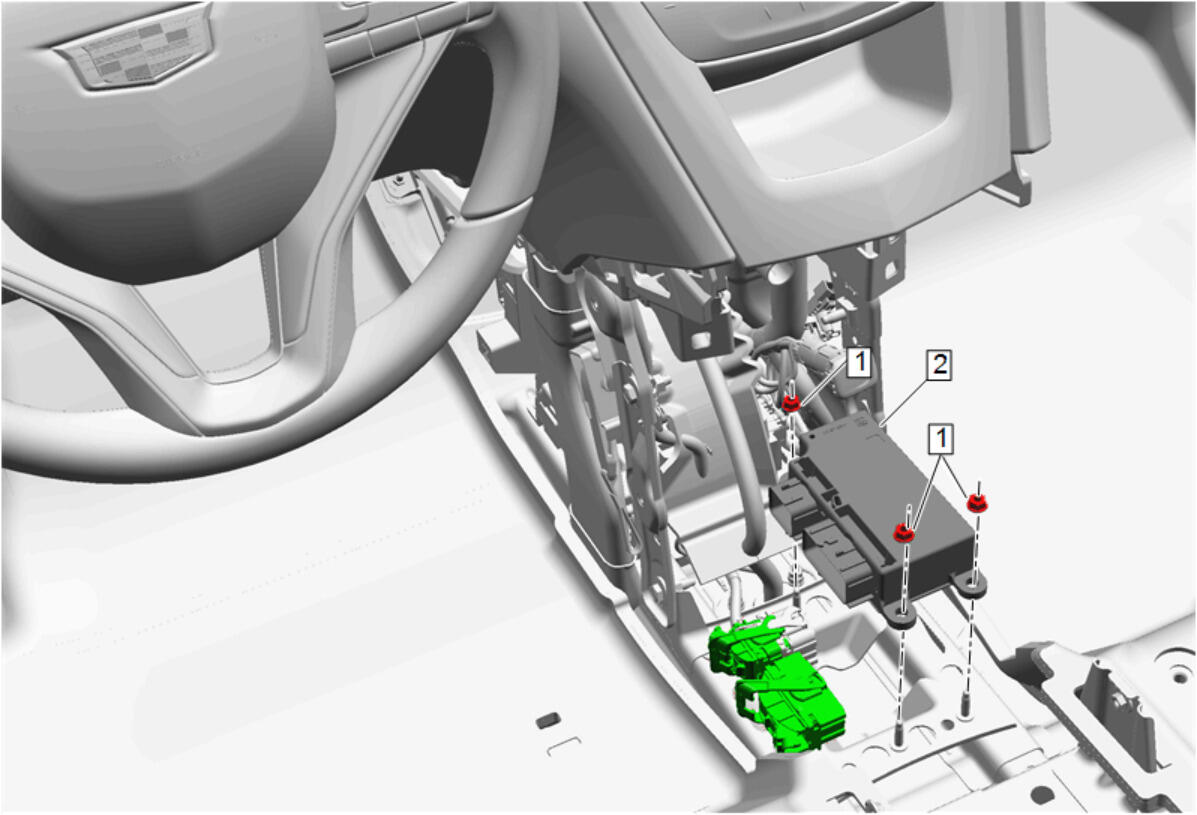

Callout	Component Name
WARNING: Do not strike or jolt the Restraints Control Module (RCM). Before applying power to the RCM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs. WARNING: Refer to SIR Warning . Preliminary Procedures Disable the SIR system. SIR Disabling and Enabling Front Floor Console Replacement
1	Airbag Sensing and Diagnostic Module Nut[ 3x ] CAUTION: Refer to Fastener Caution . tighten 9 N.m (80 lb in)
2	Restraints Control Module Procedure Disconnect the electrical connectors. Perform the necessary programming and setup procedure:Control Module References Enable the SIR System. SIR Disabling and Enabling

Callout

Component Name

WARNING:

Do not strike or jolt the Restraints Control Module (RCM). Before applying power to the RCM, make sure that it is securely fastened. Failure to observe the correct installation procedure could cause Supplemental Inflatable Restraint (SIR) deployment, personal injury, or unnecessary SIR system repairs.

WARNING:

Refer to SIR Warning .

Preliminary Procedures

Disable the SIR system. SIR Disabling and Enabling
Front Floor Console Replacement

Airbag Sensing and Diagnostic Module Nut[ 3x ]

CAUTION:

Refer to Fastener Caution .

tighten
9 N.m (80 lb in)

Restraints Control Module

Procedure

Disconnect the electrical connectors.
Perform the necessary programming and setup procedure:Control Module References
Enable the SIR System. SIR Disabling and Enabling
