Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

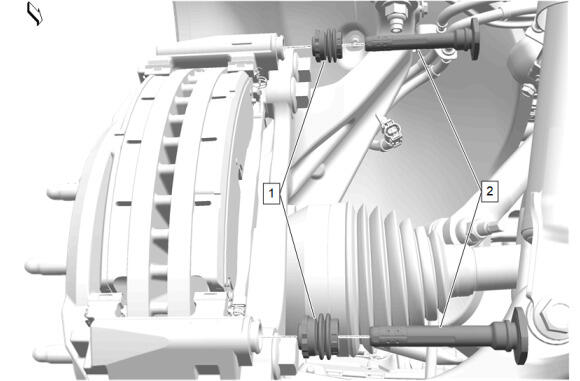

Front Brake Caliper Guide Pin Boot (1) - Install [2x]
- Front Brake Caliper Guide Pin (2) - Install [2x]

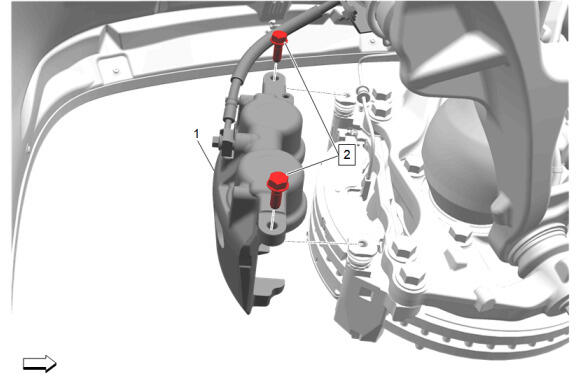

Front Brake Caliper (1) - Install
- Front Brake Caliper Guide Pin Bolt (2) - Install and tighten [2x] - Fastener Specifications

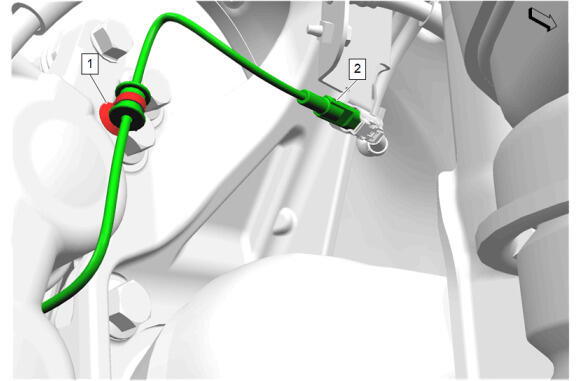

Front Disc Brake Pad Wear Sensor (1) @Front Brake Caliper - Install
- Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Front with DZW) , or Tire and Wheel Removal and Installation (SRW)
CAUTION:
NOTE:
DO NOT use any air tools to remove or install the guide pin bolts. Use hand tools ONLY.
