Installation Procedure
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

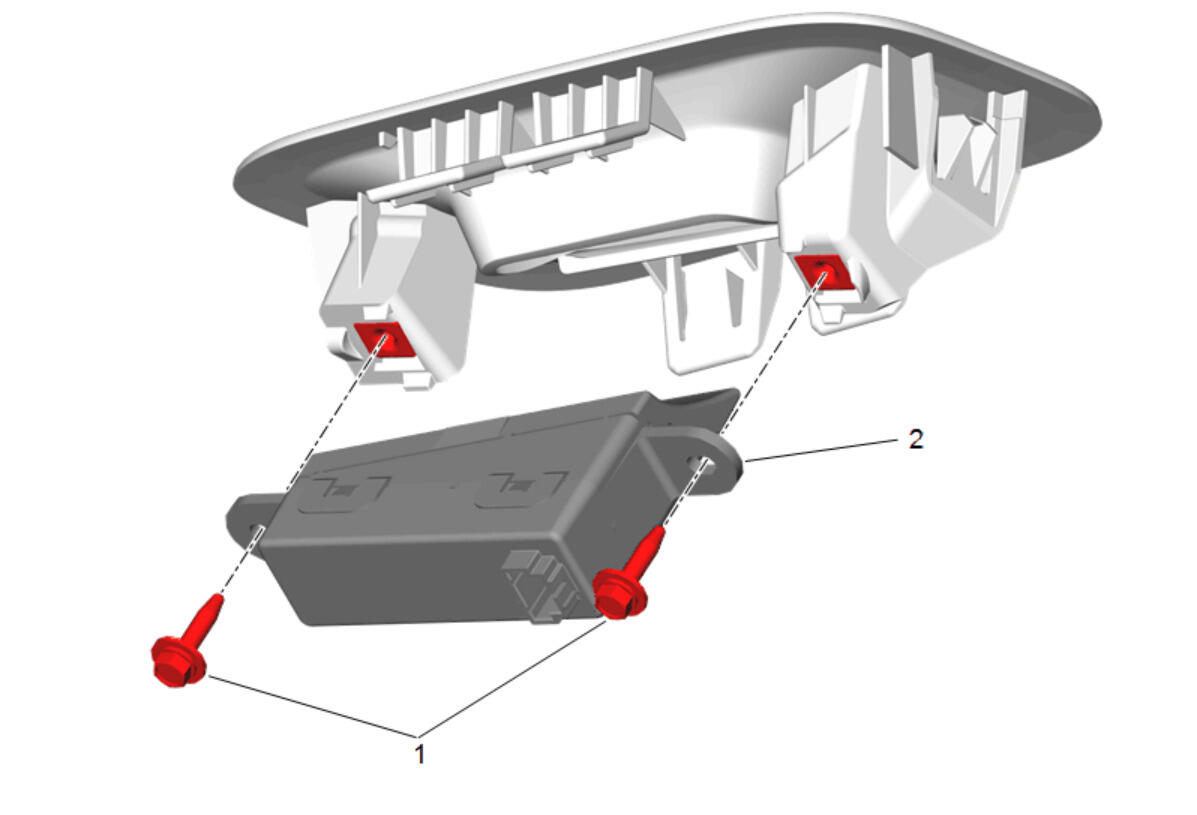

Forward Collision Alert Display (2) - Install
- Forward Collision Alert Display Bolt (1) - Install and tighten [2x] - Fastener Specifications
- Connect the electrical connector.
Connect the electrical connector.

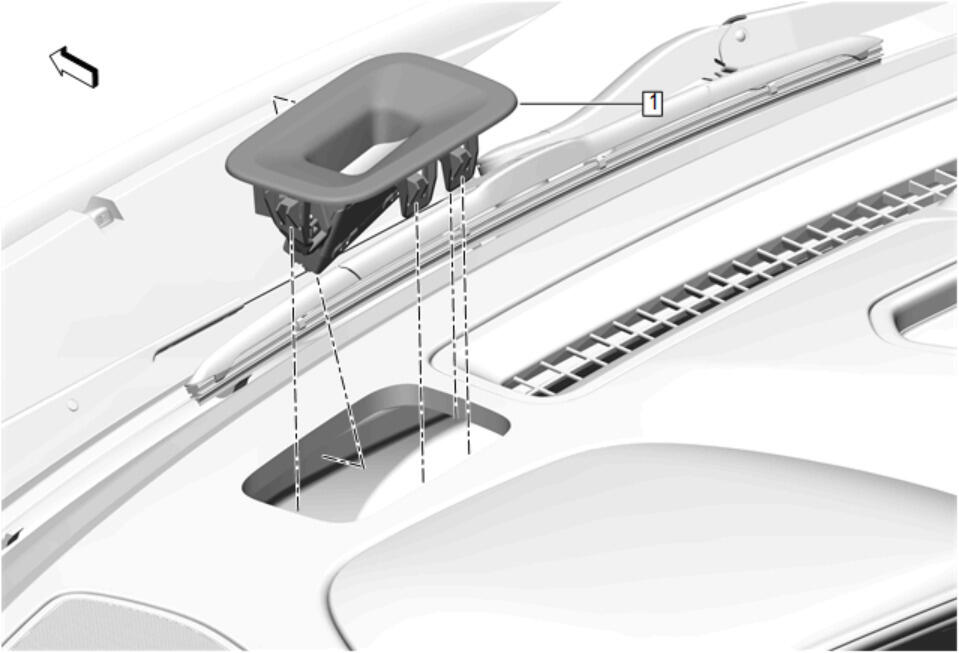

- Forward Collision Alert Display Bezel (1) - Install
CAUTION:
Refer to Fastener Caution .
