K157 Video Processing Control Module X5 (UVS)
WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of GENERAL MOTORS COMPANY
|

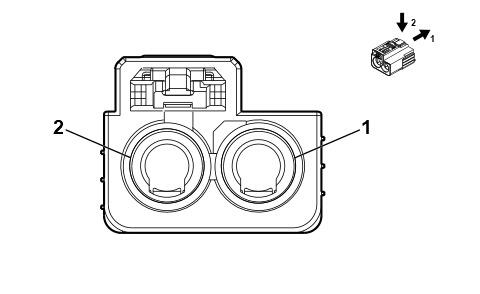

Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 33340382
- Service Connector: Service by Cable Assembly - See Part Catalog
- Description: 2-Way F Coax Type (GN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
2628 |
Left Sideview Camera Video Signal [+] |
I |
- |
| 2 |
- |
- |
6972 |
Rearview Camera Signal [+] |
I |
- |
| 1-GN |
- |
|
Coax Cable |
Coax Cable |
I |
- |
| 2-GN |
- |
|
Coax Cable |
Coax Cable |
I |
- |
