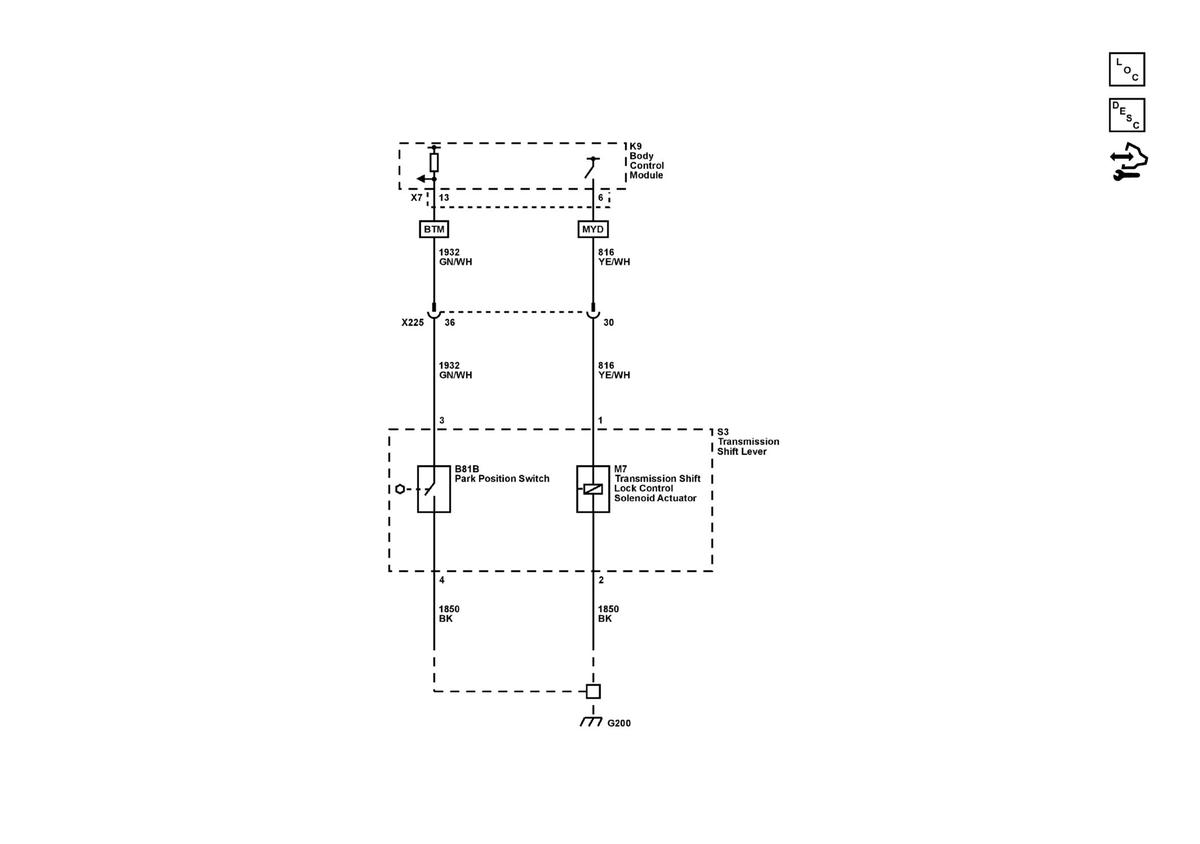

Shift Lock Control

WARNING: This page is about a different car, the 2023 GMC Sierra 3500 HD and 2023 GMC Sierra 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
GM5995629Courtesy of GENERAL MOTORS COMPANY
