Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

Communication Interface Module Bracket (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

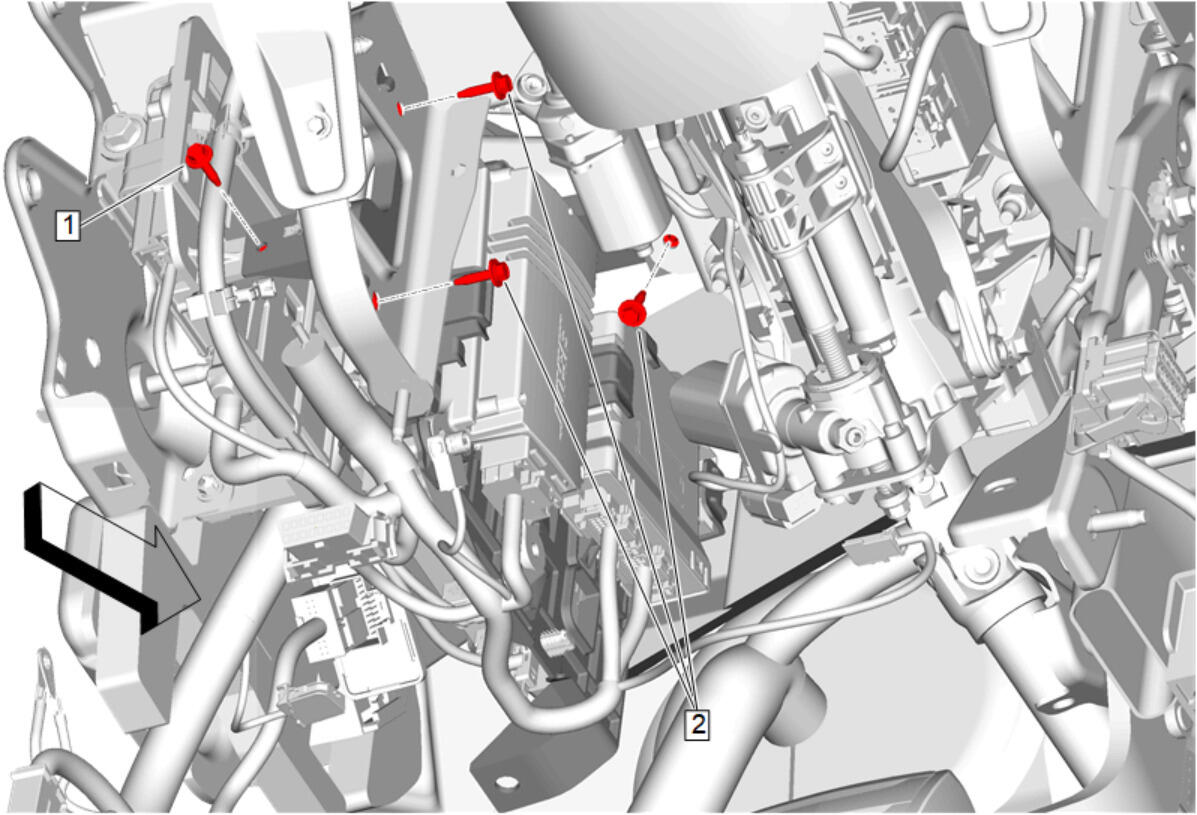

Night Vision Module Bracket Bolt (1) - Install and tighten 2.5 N.m (22 lb in)
Communication Interface Module Bracket Bolt (2) - Install and tighten [ 3x ] 2.5 N.m (22 lb in)
Connect and position the wiring harness.
Courtesy of GENERAL MOTORS COMPANY

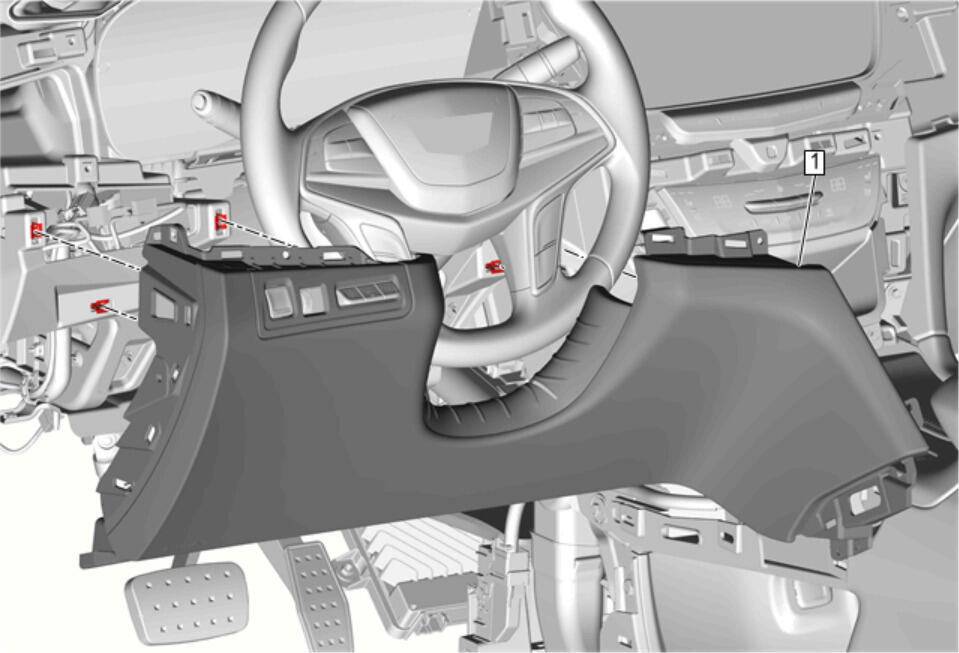

Instrument Panel Knee Bolster (1) - Install - Instrument Panel Knee Bolster Replacement
Courtesy of GENERAL MOTORS COMPANY

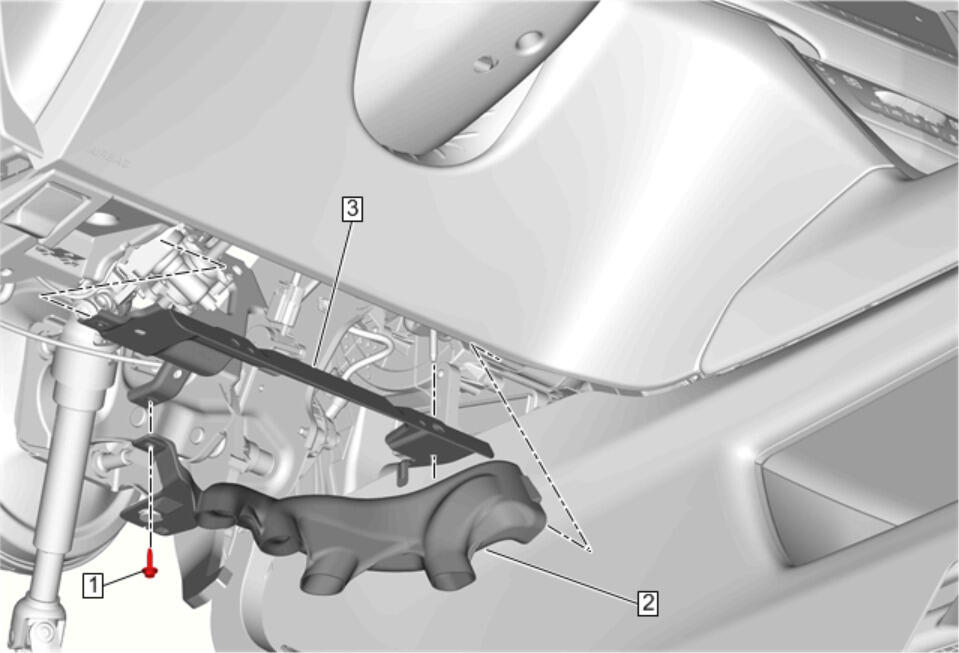

Instrument Panel Knee Bolster Deflector (3) - Install - Instrument Panel Knee Bolster Deflector Replacement
