Home
>>
Cadillac
>>
2022
>>
CT4 V, 4WD
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Shift Lock Control System
>>
Schematic and Routing Diagrams
>>
Shift Lock Control Schematics
>>
Shift Lock Control
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

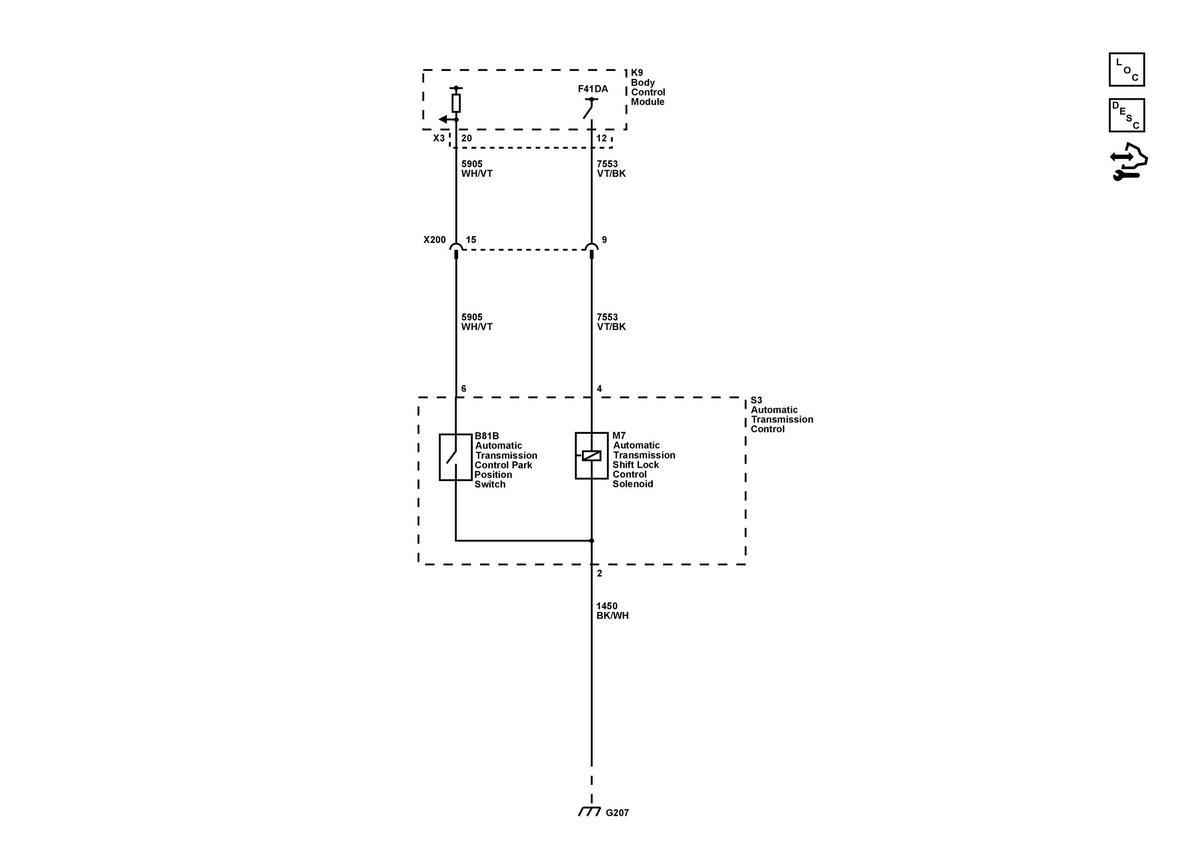

Shift Lock Control
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
