Installation Procedure

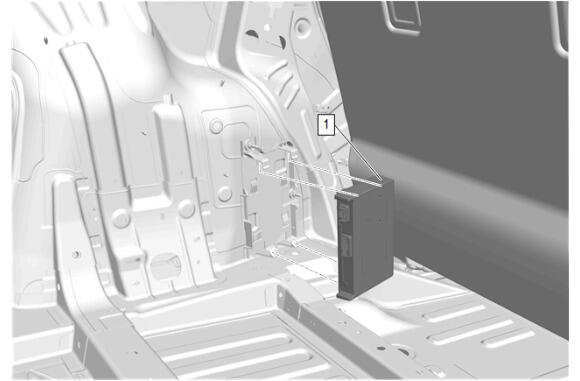

Automated Driving Mapping Module (1) - Install
- Secure the retaining tabs.
- Connect the electrical connectors.

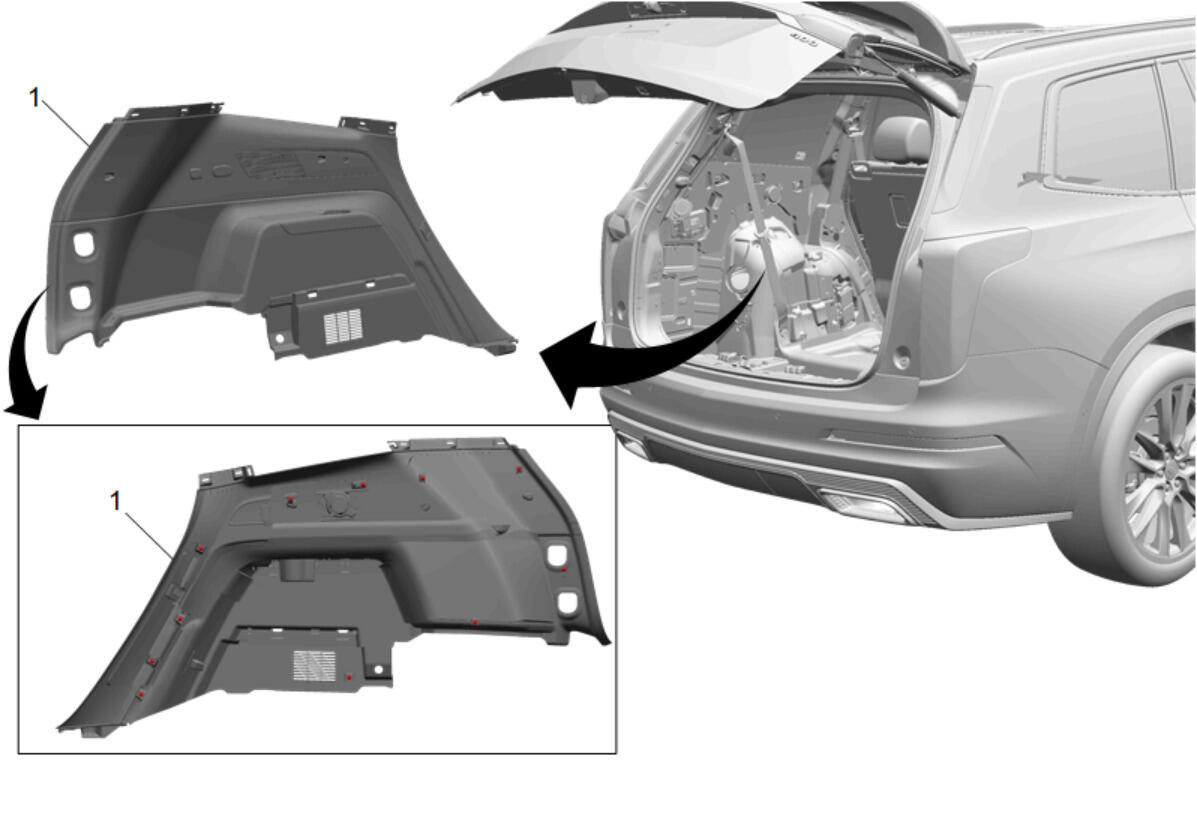

Quarter Lower Rear Trim Panel (1) - Install - Quarter Lower Rear Trim Panel Replacement - Left Side

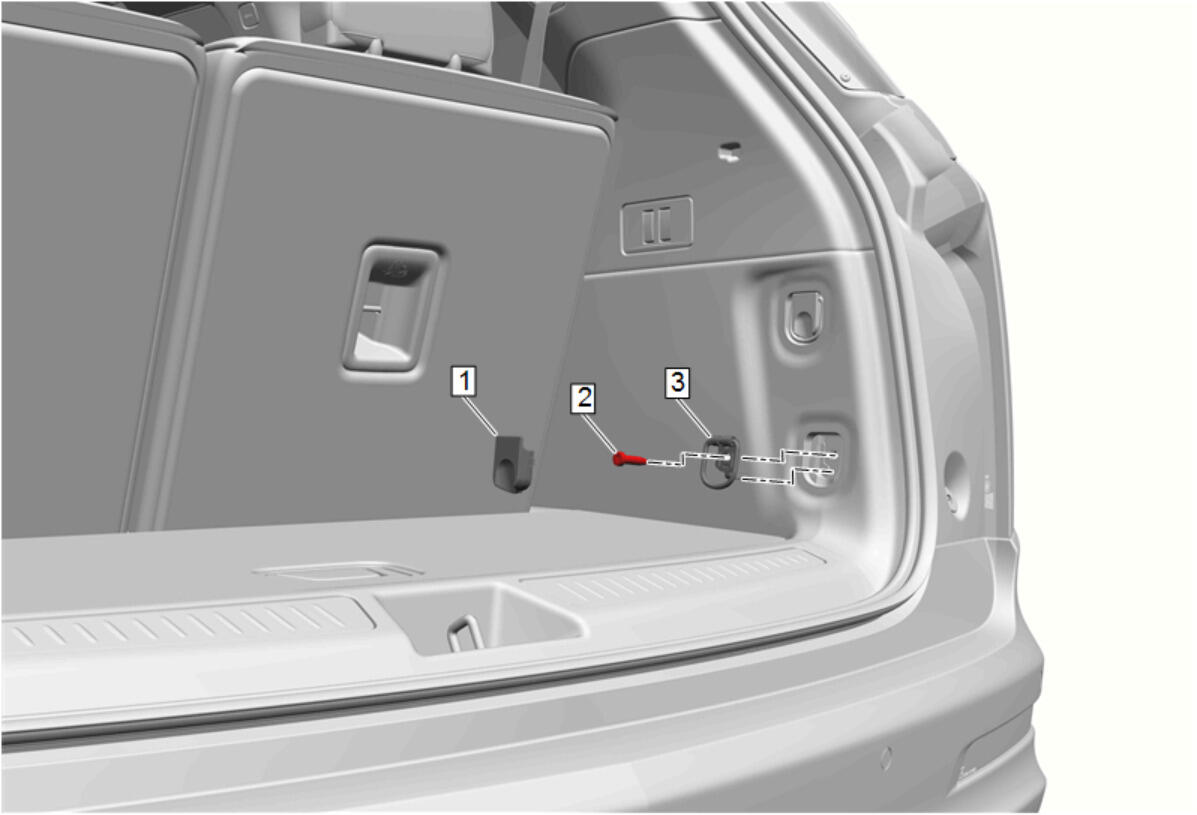

Cargo Tie Down Loop (3) - Install - Cargo Tie Down Loop Replacement

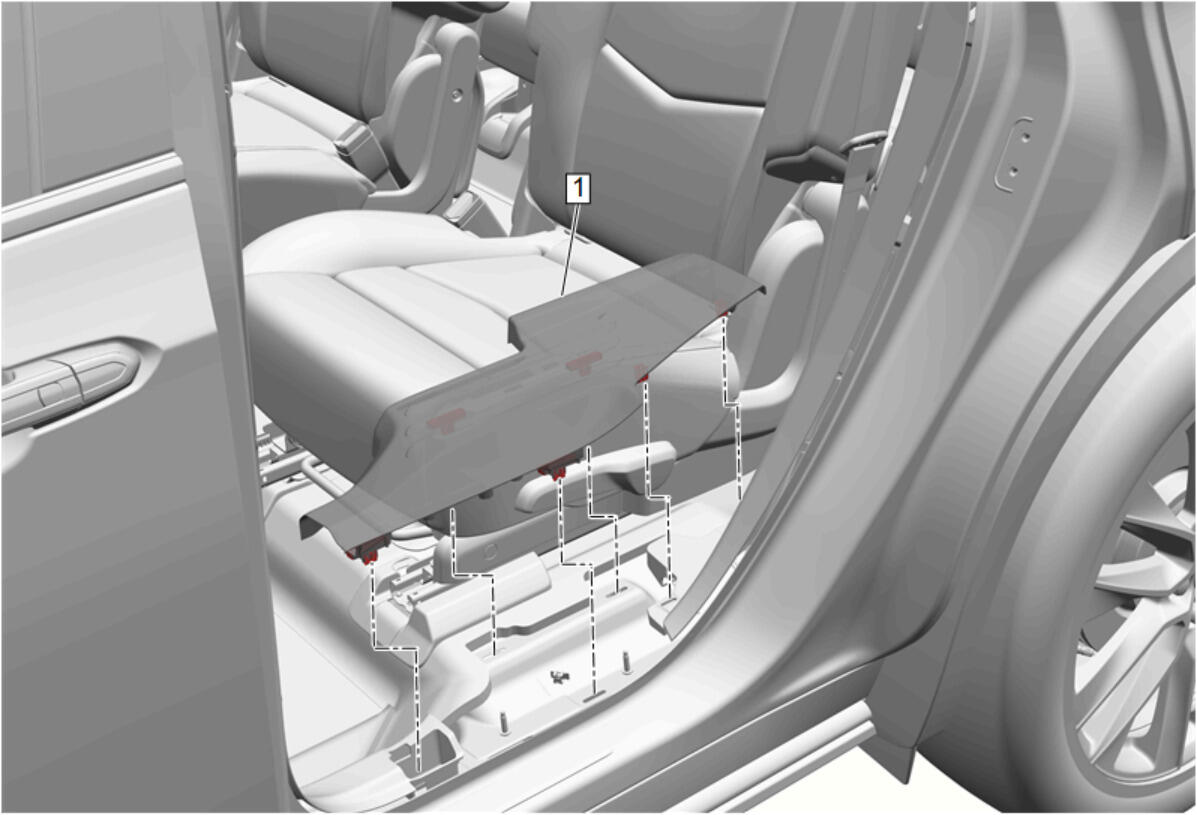

Rear Side Door Sill Garnish Molding (1) - Install - Rear Side Door Sill Garnish Molding Replacement

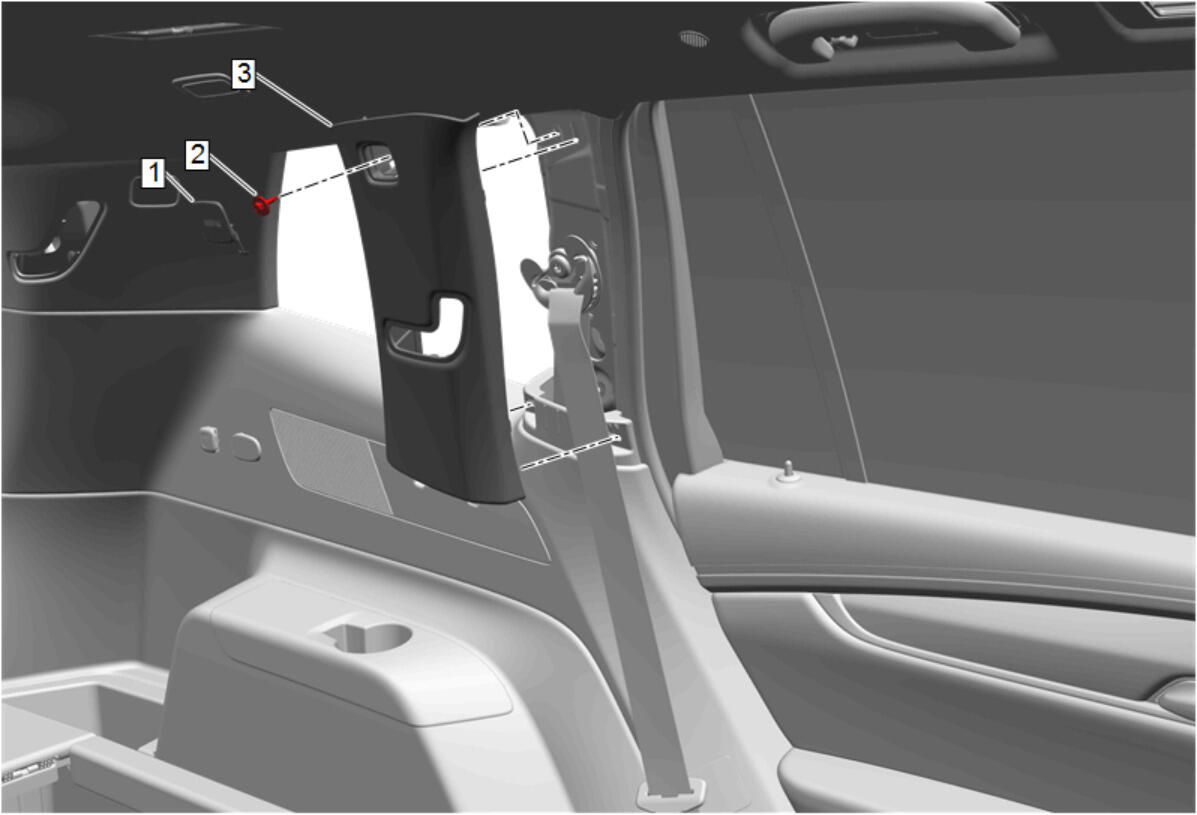

Body Lock Pillar Upper Trim Panel (3) - Install - Body Lock Pillar Upper Trim Panel Replacement
Body Rear Corner Upper Garnish Molding (3) - Install - Body Rear Corner Upper Garnish Molding Replacement

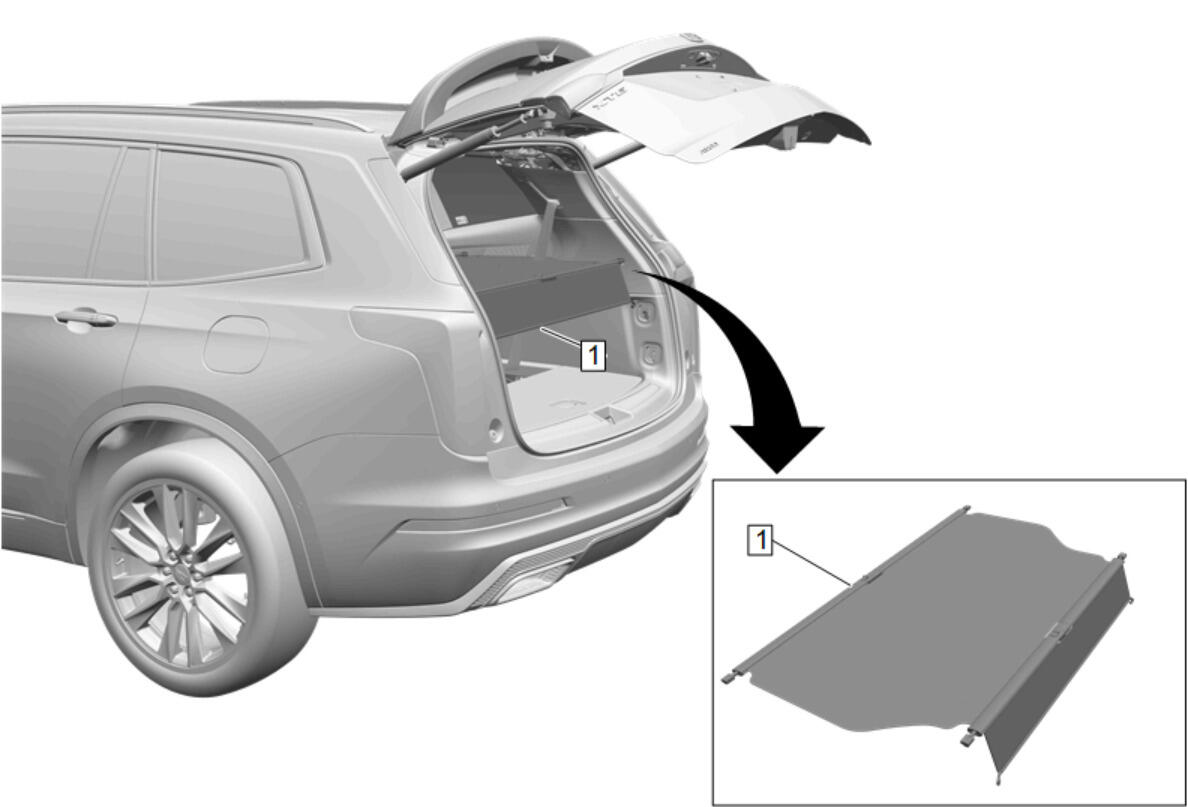

Luggage Shade (1) - Install - Luggage Shade Replacement

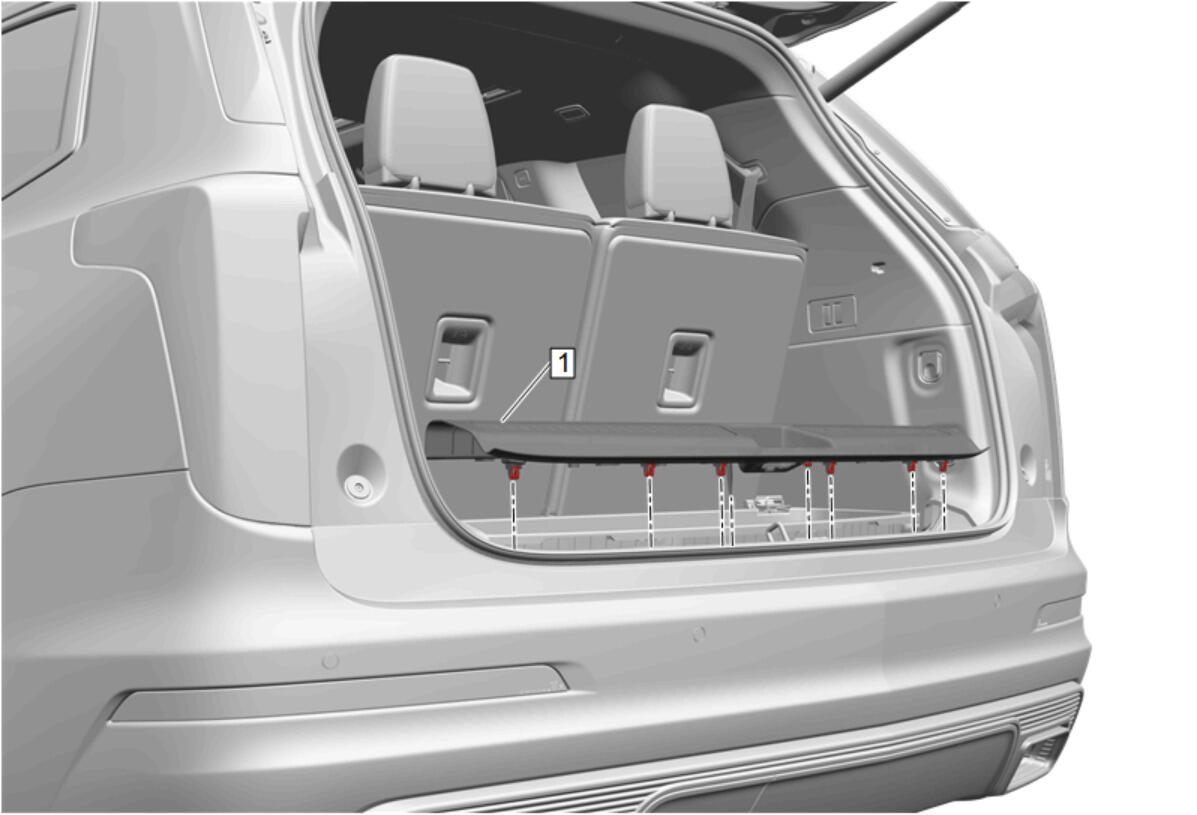

Liftgate Sill Garnish Molding (1) - Install - Liftgate Sill Garnish Molding Replacement

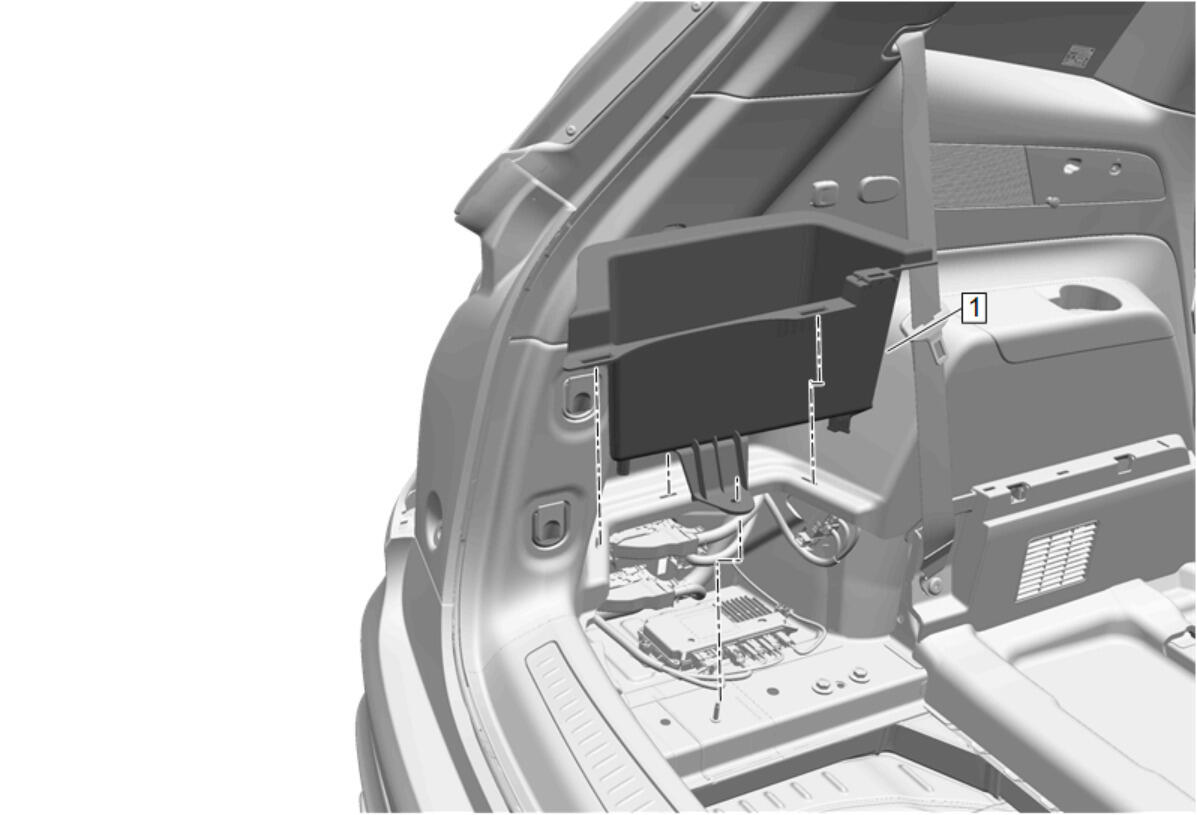

{If equipped} Rear Compartment Floor Stowage Side Rear Compartment (1) - Install - Rear Compartment Floor Stowage Side Rear Compartment Replacement

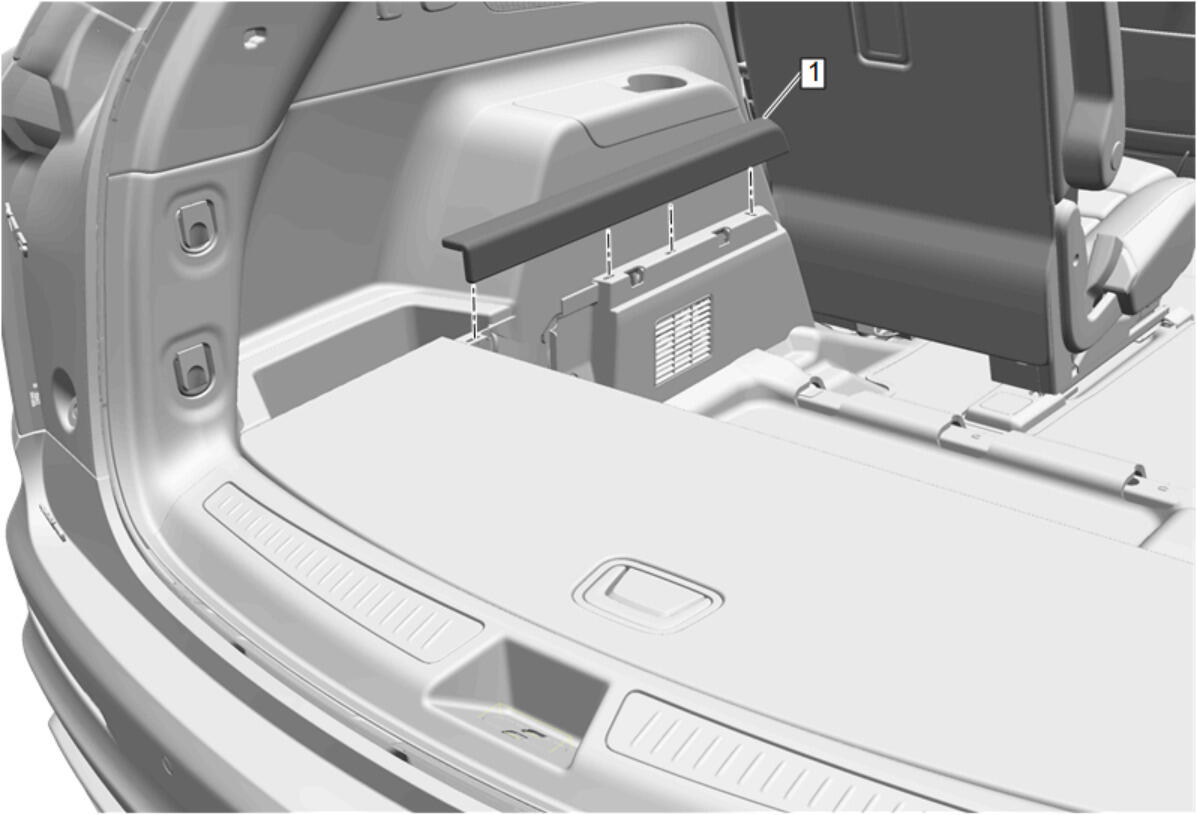

Load Floor Side Trim Panel (1) - Install - Load Floor Side Trim Panel Replacement

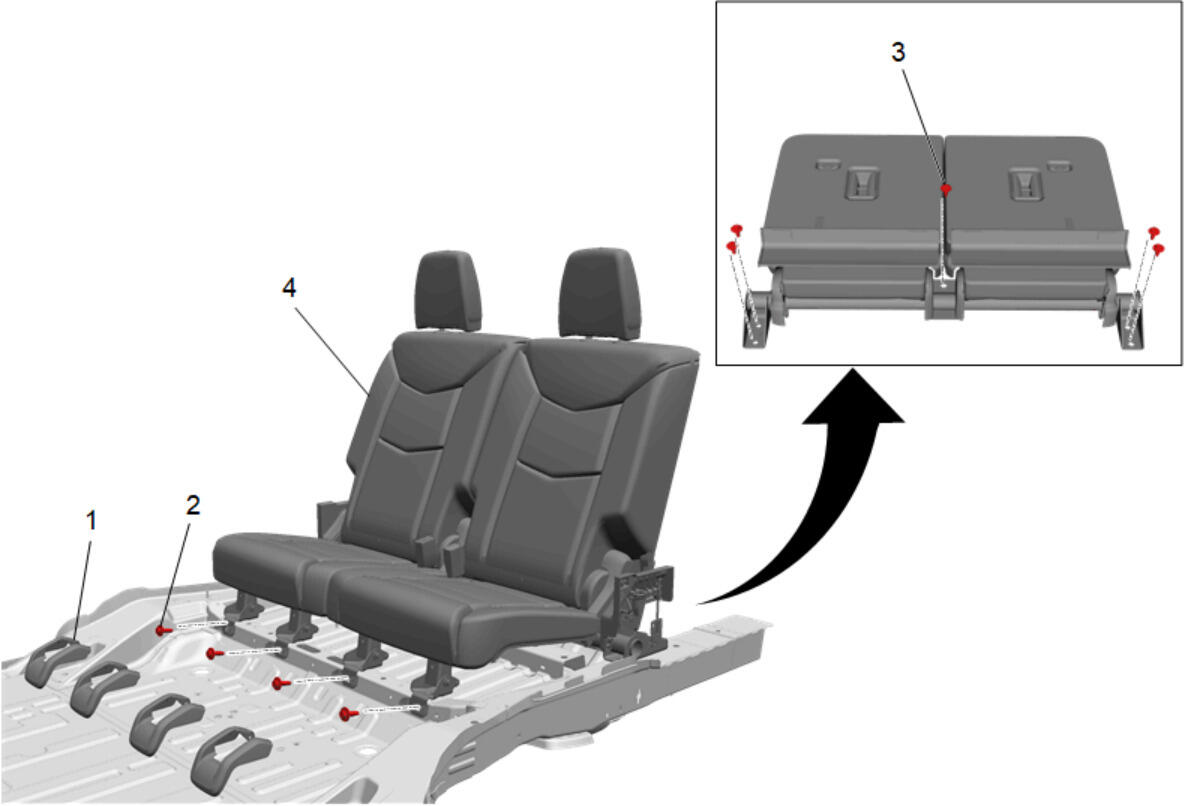

3rd Row Seat (4) - Install - 3rd Row Seat Removal and Installation
- Perform the necessary programming and setup procedure: Control Module References
