Accelerator Pedal with Position Sensor Assembly Replacement

Courtesy of GENERAL MOTORS COMPANY

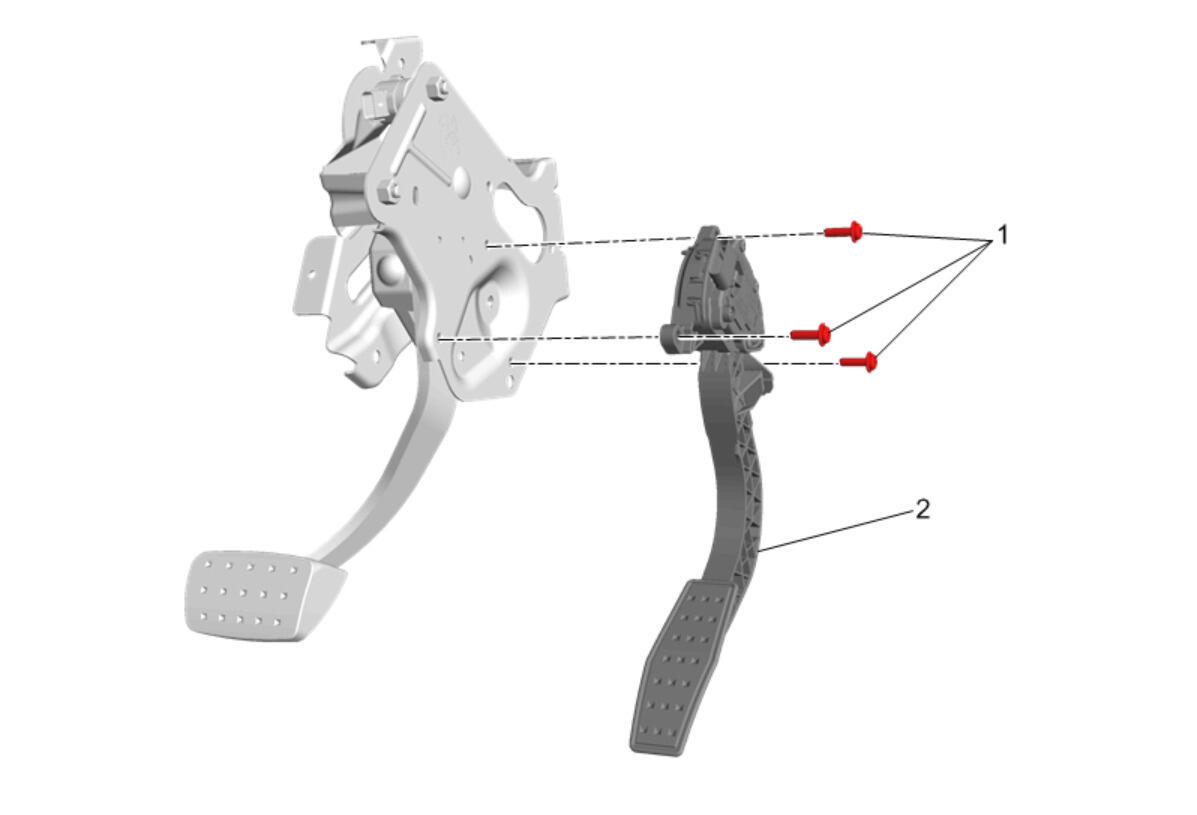

Callout	Component Name
Preliminary Procedure  Front Floor Console Extension Panel Replacement - Left Side
1	Accelerator Pedal Assembly Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten  9 N.m (80 lb in)
2	Accelerator Pedal Assembly Procedure  Disconnect the electrical connector.
