Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

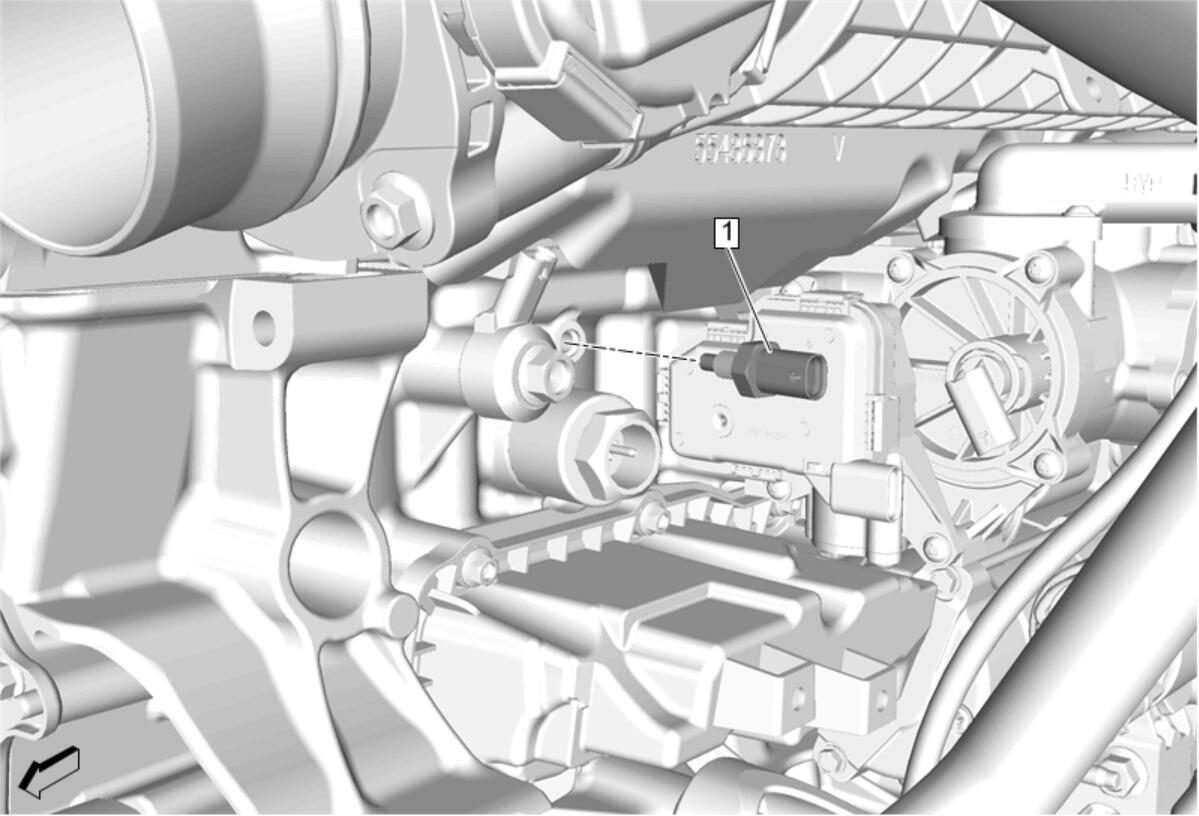

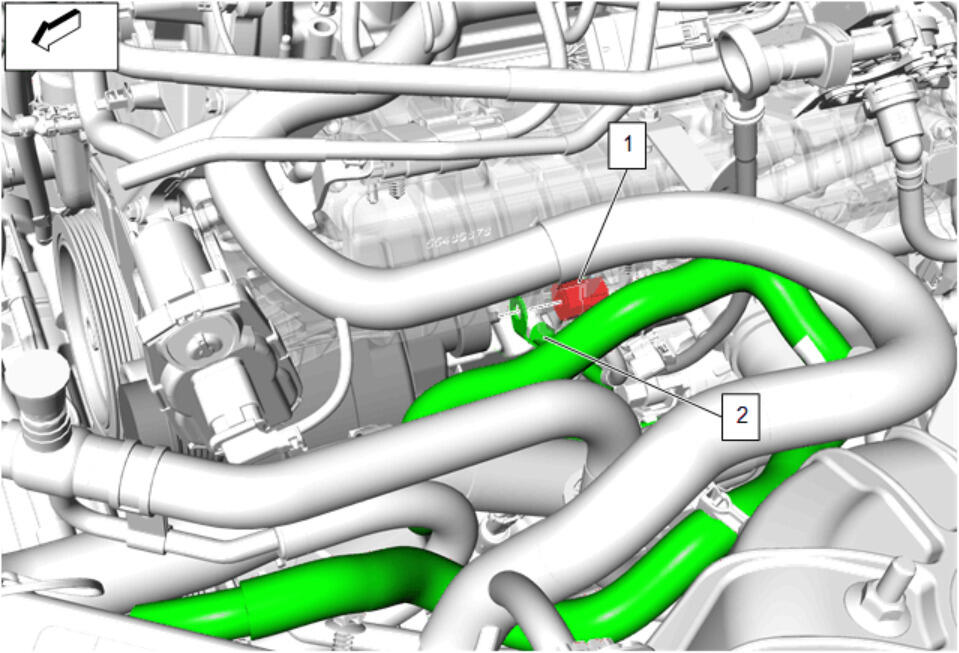

Engine Coolant Temperature Sensor (1) - Install and tighten - Fastener Specifications
Connect the electrical connector.
Courtesy of GENERAL MOTORS COMPANY

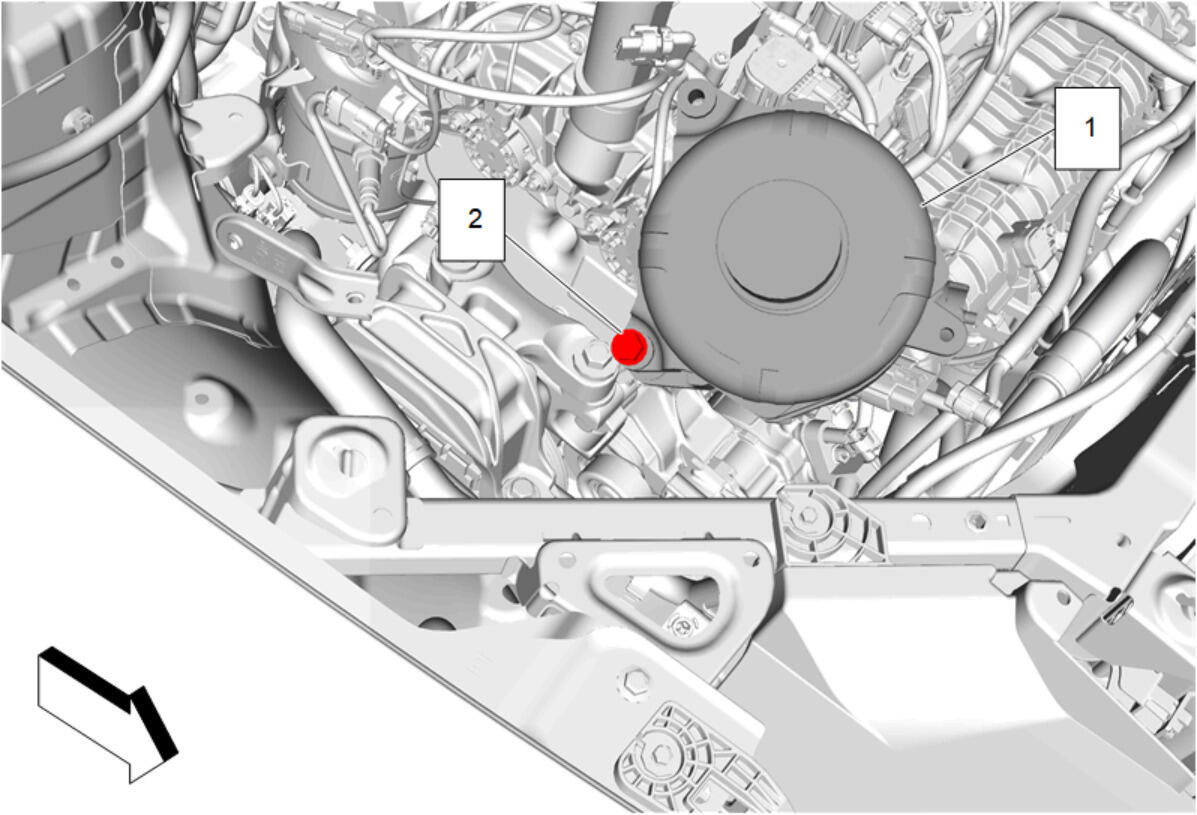

Install the generator (1) with the lower generator mounting bolt (2).
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

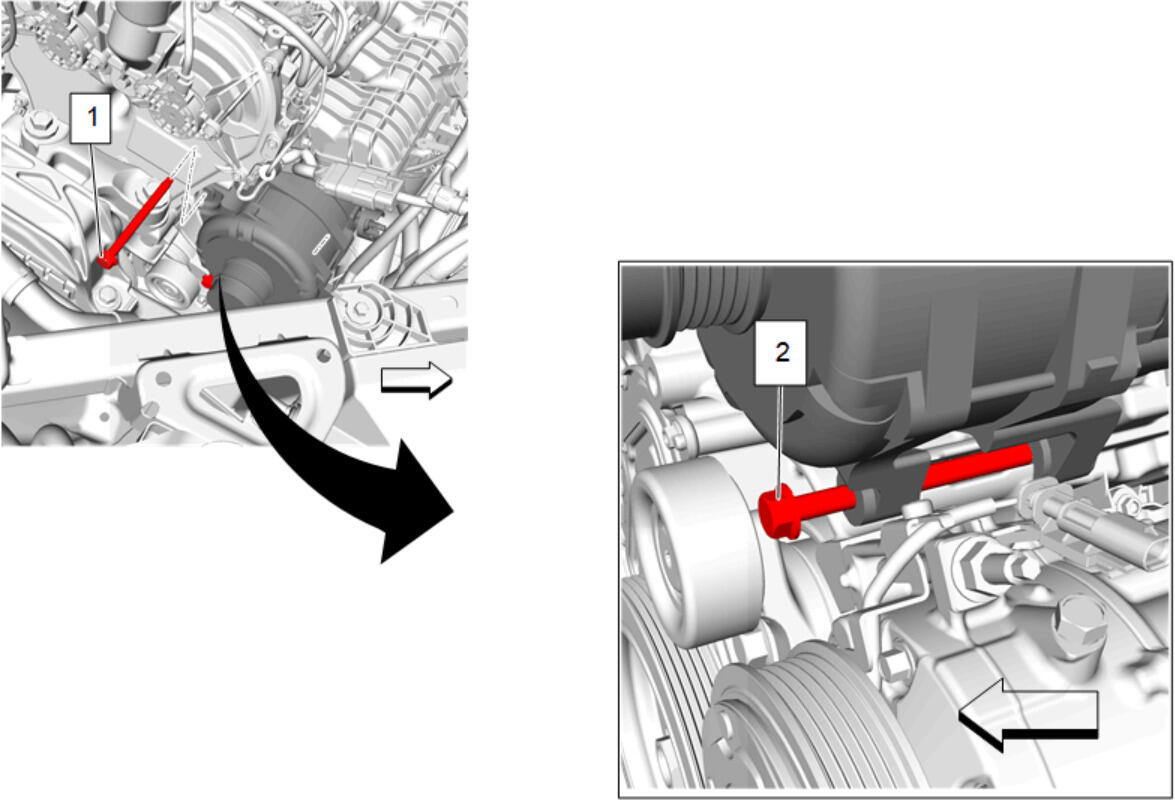

Generator Bolt (1) - Install and tighten - Fastener Specifications
Generator Bolt (2) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Intake manifold is shown transparent for graphic clarity.

Auxiliary Generator Battery Jumper Cable (2) - Install
Battery Positive Cable Nut (1) @ Generator - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

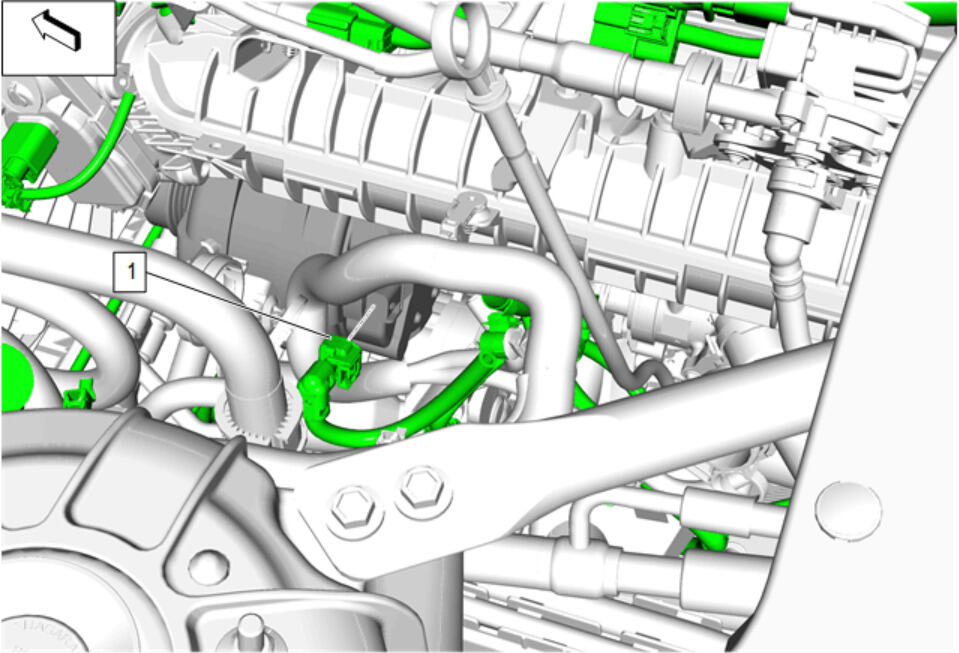

Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

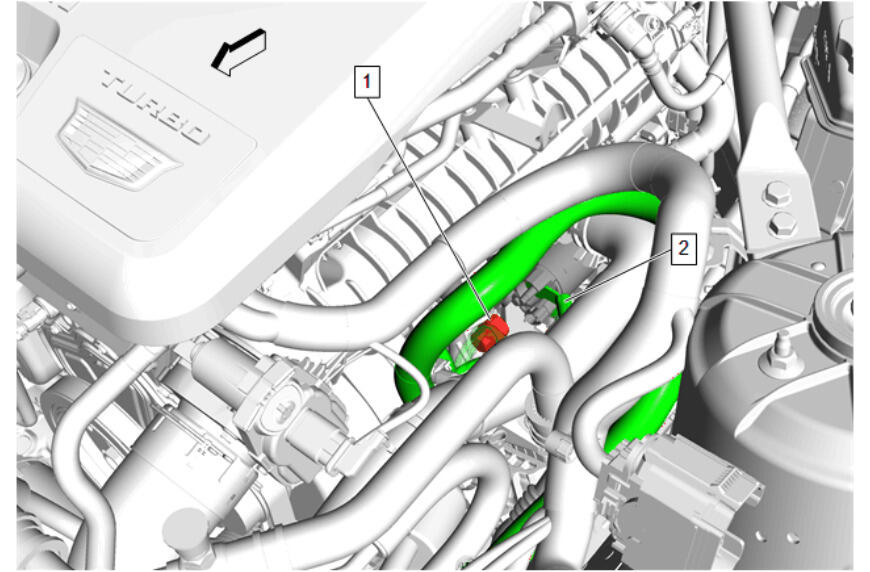

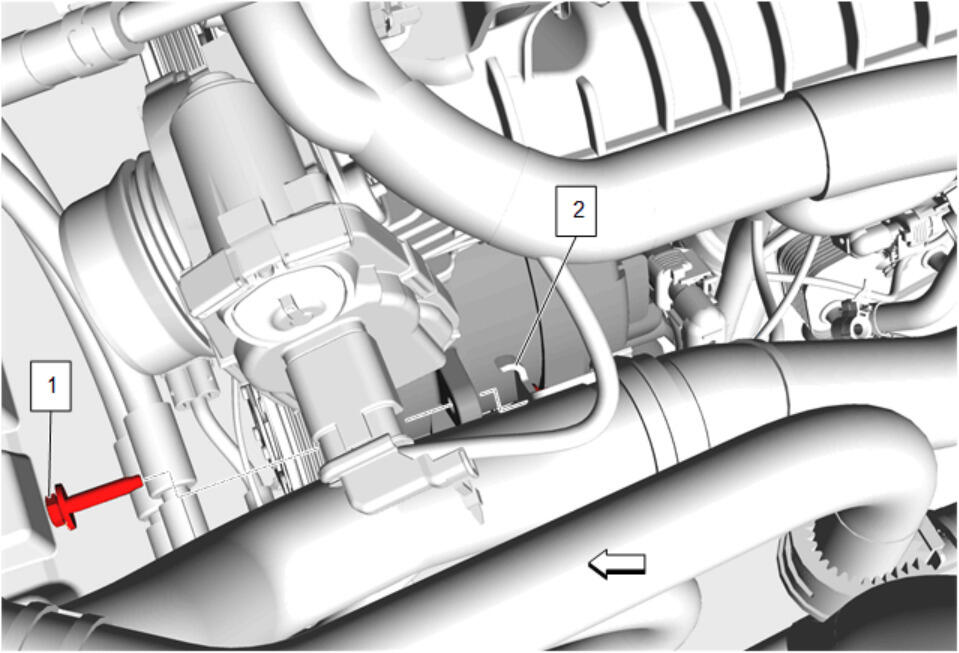

Radiator Inlet Hose Bracket (2) - Install
Radiator Inlet Hose Bracket Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

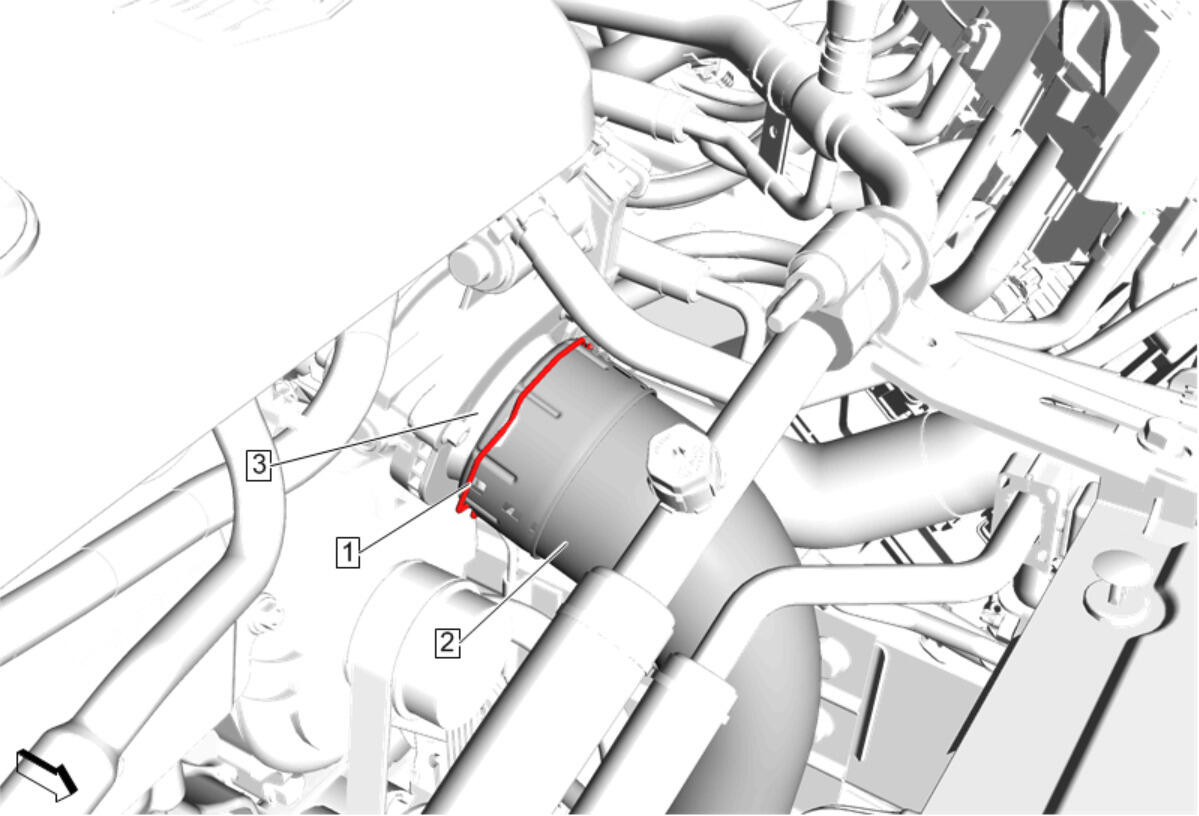

Charge Air Cooler Outlet Air Tube (2) @ Throttle Body (3) - Install
Retainer Spring (1) - Install
Courtesy of GENERAL MOTORS COMPANY

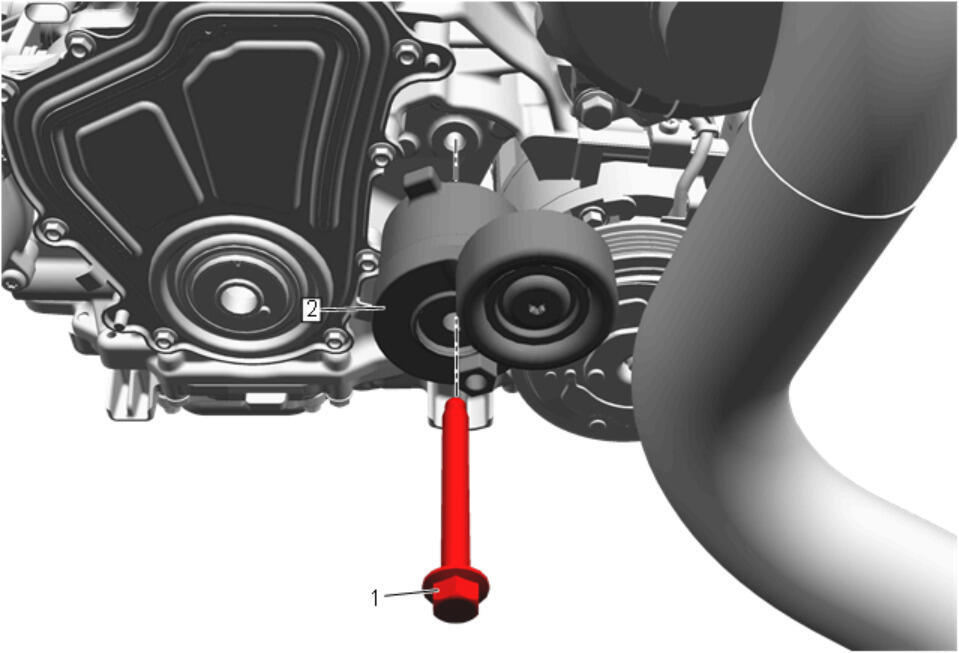

Drive Belt Tensioner (2) - Install

CAUTION:

Refer to Fastener Caution .

Drive Belt Tensioner Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

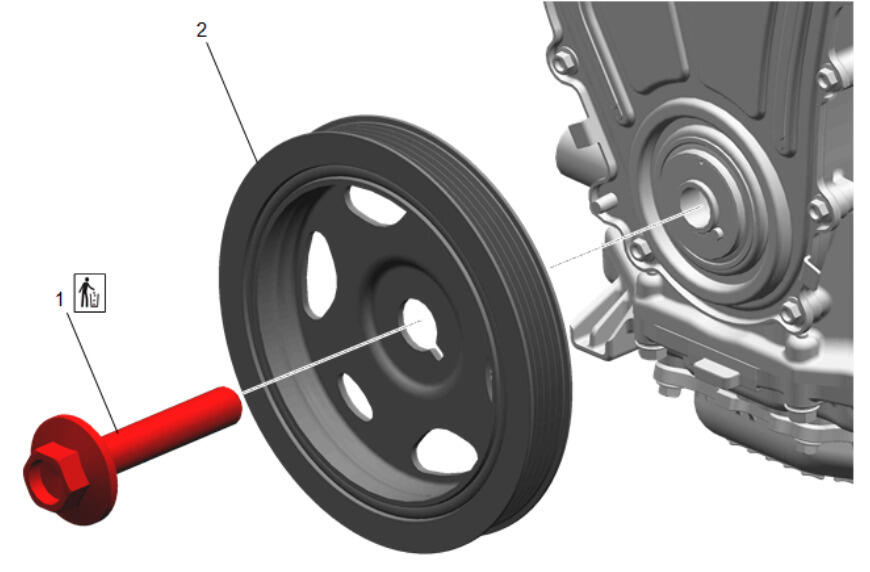

Crankshaft Balancer (2) - Install
Crankshaft Balancer Bolt (1) - Install NEW and tighten - Fastener Specifications
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

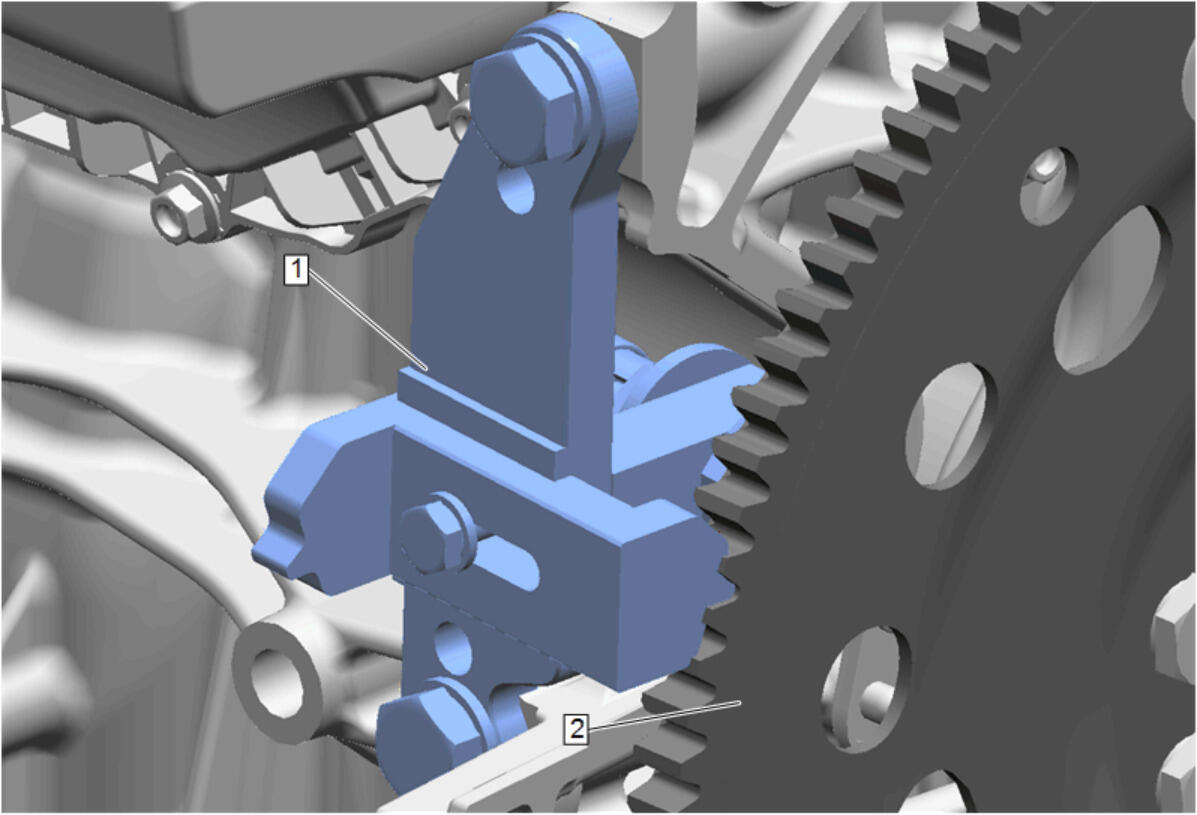

Remove the EN-52476 Flywheel Lock and Alignment Tool (1) from the automatic transmission flexplate.
Courtesy of GENERAL MOTORS COMPANY

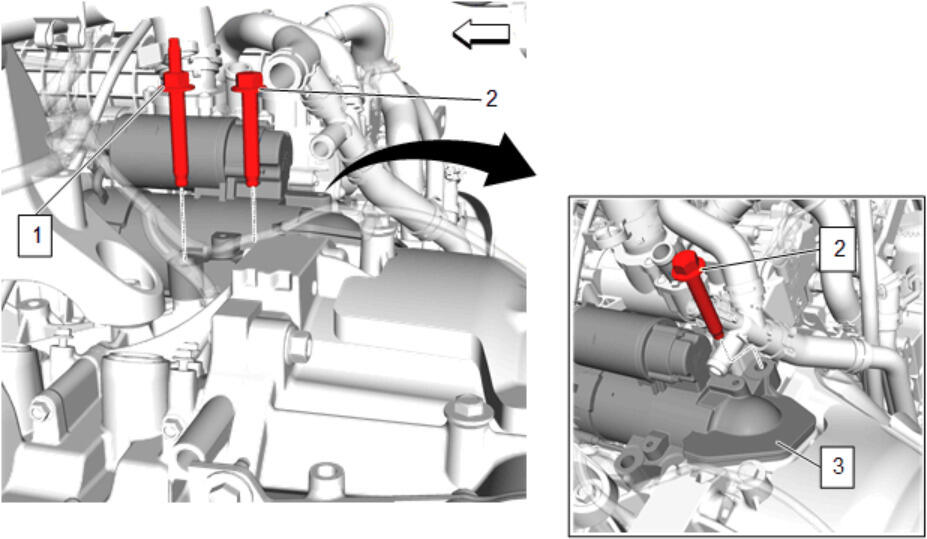

Starter (3) - Install
Starter Bolt (2) - Install and tighten [2x] - Fastener Specifications
Starter Stud (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Auxiliary Generator Battery Jumper Cable (2) - Install
Battery Positive Cable Nut (1) @ Starter Solenoid - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

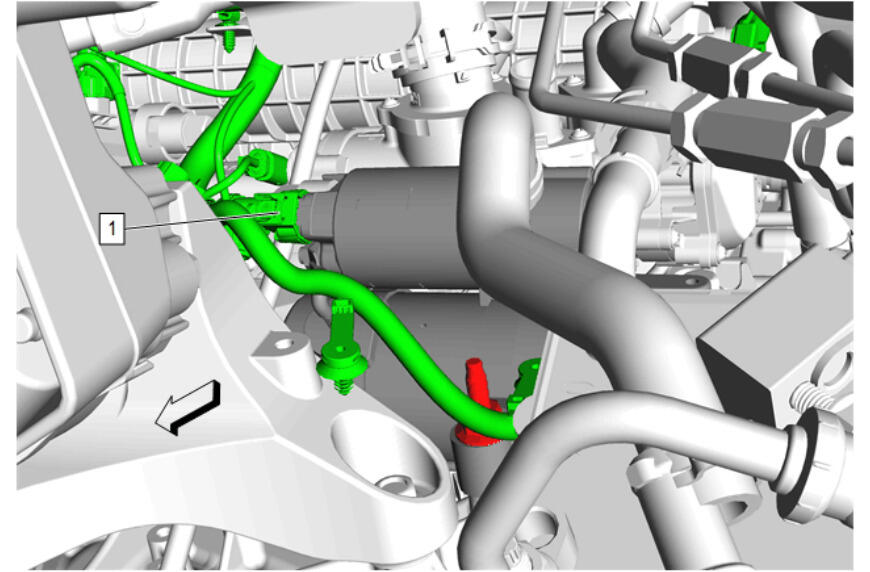

Electrical Connector (1) - Connect
Courtesy of GENERAL MOTORS COMPANY

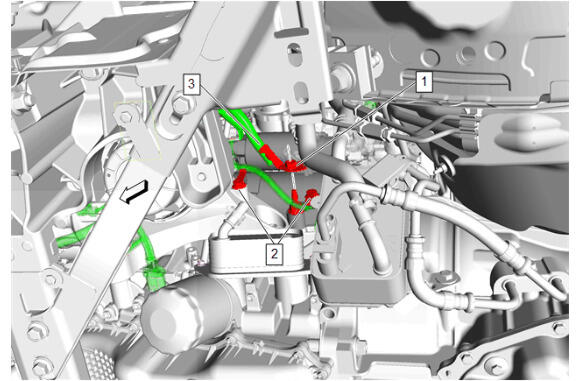

Auxiliary Generator Battery Jumper Cable (3) - Install
Battery Negative Cable Nut (1) @ Starter Stud - Install and tighten - Fastener Specifications
Engine Wiring Harness Retainer (2) - Engage [2x]
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

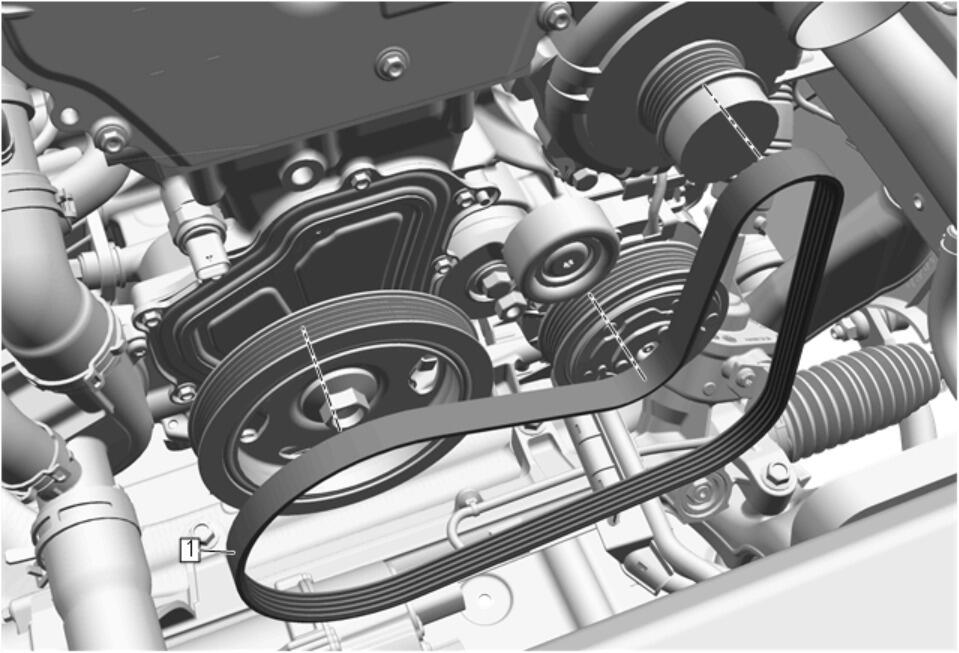

Accessory Drive Primary Belt (1) - Install
Courtesy of GENERAL MOTORS COMPANY

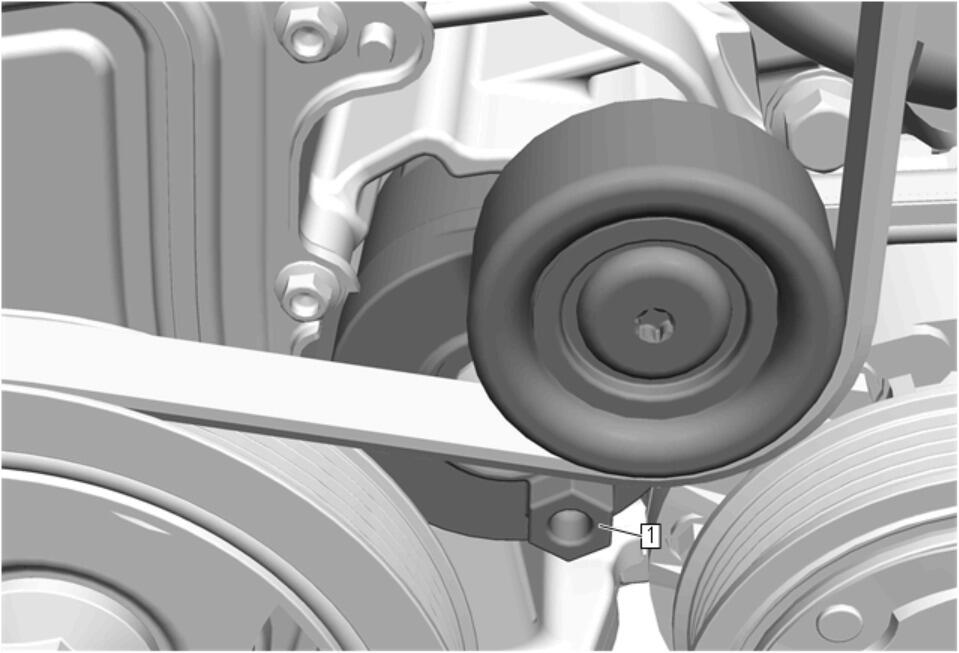

Use a suitable tool to rotate the drive belt tensioner (1) counterclockwise and hold.
Slowly release tension on the drive belt tensioner.
Courtesy of GENERAL MOTORS COMPANY

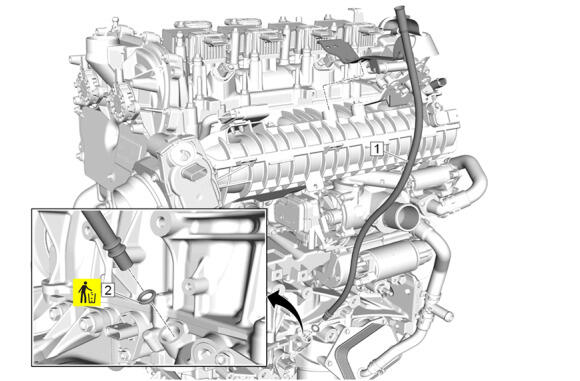

Oil Level Indicator Tube Seal (2) - Install NEW
Oil Level Indicator Tube (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Oil Level Indicator Tube Bracket Bolt (2) - Install and tighten - Fastener Specifications

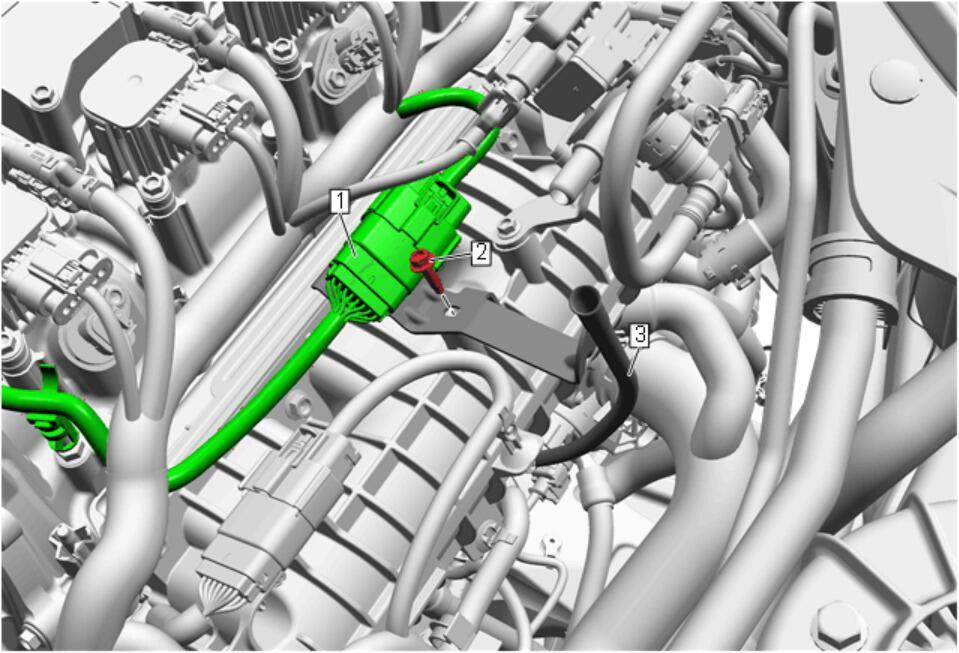

Electrical Connector (1) @ Oil Level Indicator Tube (3) - Clip
Courtesy of GENERAL MOTORS COMPANY

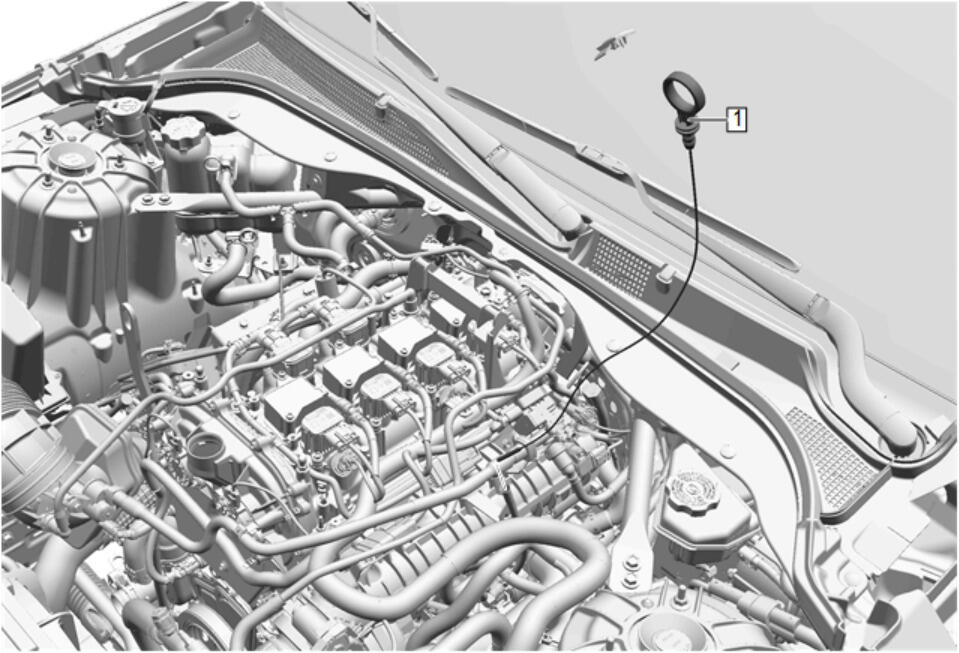

Oil Level Indicator (1) - Install
Courtesy of GENERAL MOTORS COMPANY

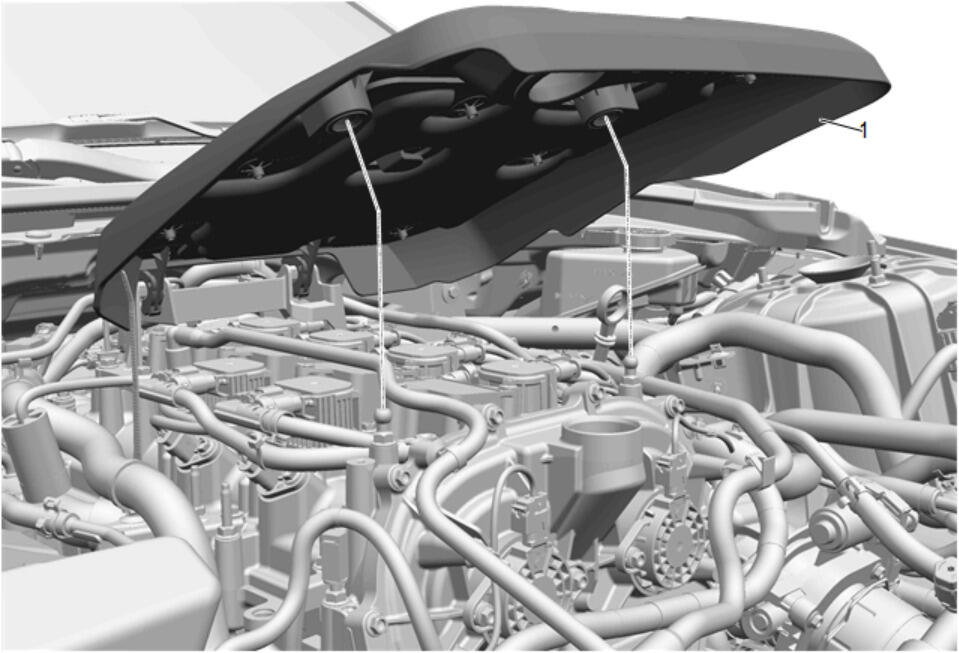

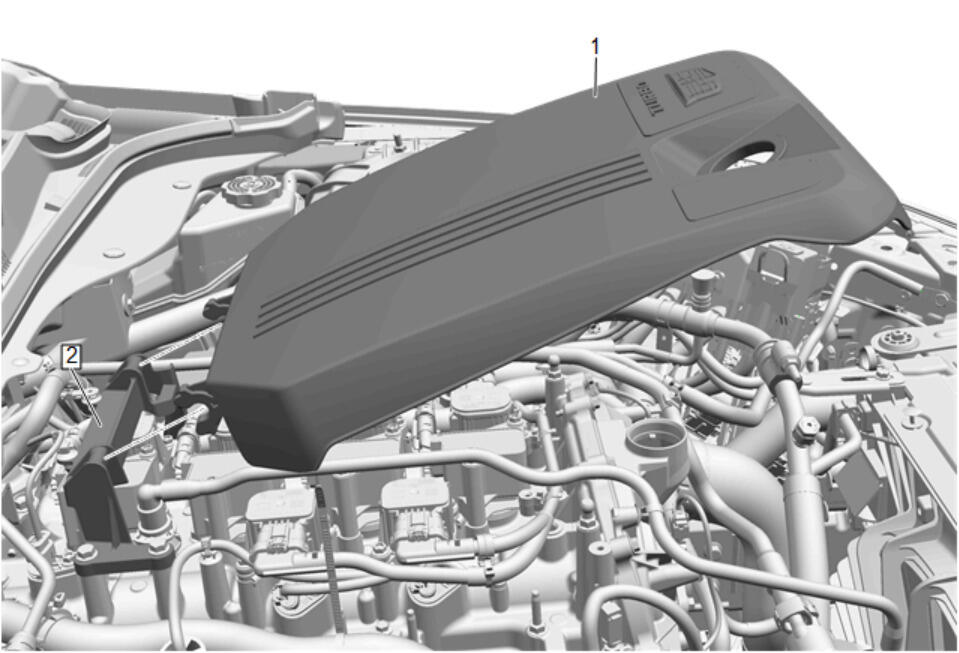

Intake Manifold Cover (1) @ Upper Intake Manifold Bracket (2) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure the engine sight shield retainers fully engage the intake manifold cover studs.

Push down on the front of the intake manifold cover (1) engaging the intake manifold cover retainers to the intake manifold cover studs.
Install the oil fill cap.
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection
Fill the cooling system. Cooling System Draining and Filling (LSY GE 47716) , or Cooling System Draining and Filling (LSY Static Fill) , or Cooling System Draining and Filling (LSY with V03 Static Fill) , or Cooling System Draining and Filling (LSY with V03 GE 47716) .
