Driver Monitoring System Module Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Insulator Replacement - Right Side

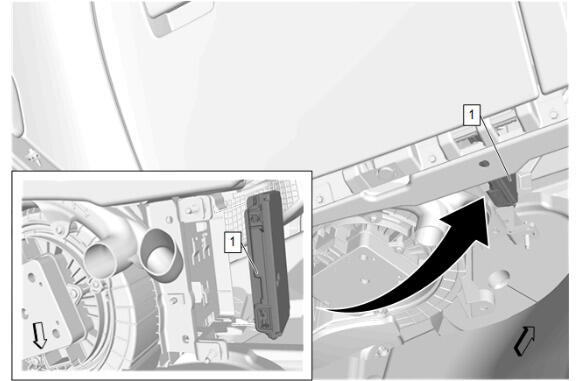

1	Driver Monitoring System Module Procedure Disconnect the electrical connectors. Release the retaining tab. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Driver Monitoring System Module

Procedure

Disconnect the electrical connectors.
Release the retaining tab.
Perform the necessary programming and setup procedure: Control Module References
