Removal Procedure

  1. Steering Wheel Airbag - Remove - Steering Wheel Airbag Replacement

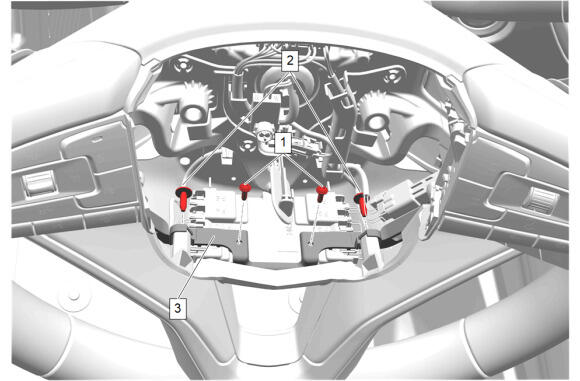

  2. GM6220632Courtesy of GENERAL MOTORS COMPANY

    Steering Wheel Bolt (1) - Remove [2x]

  3. Steering Wheel Spoke Cover Bolt (2) - Remove [2x]
  4. Driver Monitoring System Module Bracket (3) - Remove

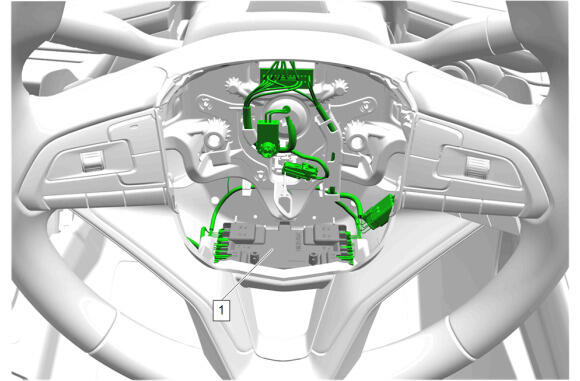

  5. GM6220633Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connectors.

  6. Release the retaining tab.
  7. Driver Monitoring System Module (1) - Remove
