Lower Ball Joint

Replace ball joint if there is any perceptible looseness at joint.

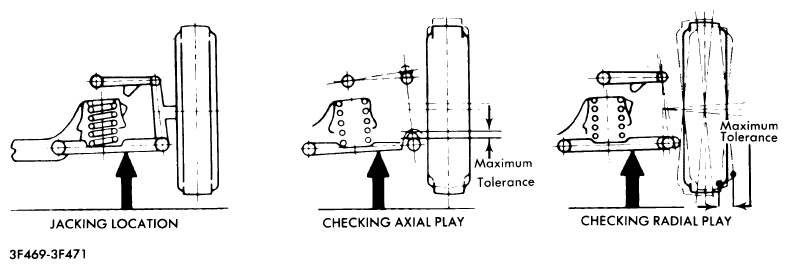

Fig 1: Spring On Lower Control Arm

Courtesy of NOT AVAILABLE

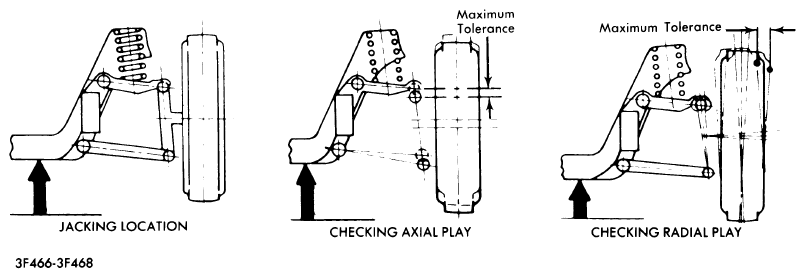

Fig 2: Spring On Upper Control Arm

Courtesy of NOT AVAILABLE
