Tool Application: Notes
NOTE:

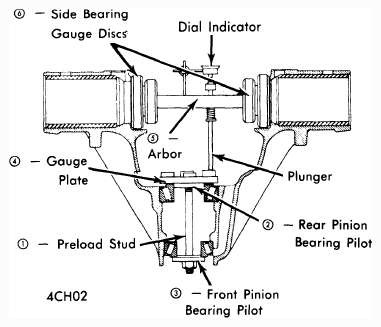

See illustration for component location.
| Tool Location | Tool Part Number |
|---|---|
| BUICK 7 1/2" RING GEAR | |
| (1) | J-21777-43 |
| (2) | J-21777-35 |
| (3) | J-23597-12 |
| (4) | J-23597-11 |
| (5) | J-23597-1 |
| (6) | J-21777-45 |
| BUICK 8 1/2" RING GEAR | |
| (1) | J-8619-13 |
| (2) | J-21777-35 |
| (3) | J-5647-37 |
| (4) | J-21777-29 |
| (5) | J-21777-1 |
| (6) | (Left Side) J-8619-10 |
| (Right Side) J-5647-46 | |
| BUICK 8 7/8" & 9 3/8" RING GEAR | |
| (1) | J-8619-13 |
| (2) | J-21777-8 |
| (3) | J-5647-37 |
| (4) | J-21777-29 |
| (5) | J-21777-1 |
| (6) | (Left Side) J-5647-40 |
| (Right Side) J-5647-41 | |
| CADILLAC SEVILLE 8 1/2" RING GEAR | |
| (1) | J-21777-43 |
| (2) | J-21777-35 |
| (3) | J-21777-42 |
| (4) | J-21777-29 |
| (5) | J-21777-1 |
| (6) | (Small Step) J-21777-45 |
| CHEVROLET NOVA & VEGA 6 1/2" & 7 1/2" RING GEAR | |
| (1) | Not Available |
| (2) | Not Used |
| (3) | J-23597-5 |
| (4) | J-23597-3 |
| (5) | J-23597-6 |
| (6) | J-23597-4 |
| CHEVROLET MONZA 7 1/2" RING GEAR | |
| (1) | J-21777-43 |
| (2) | Not Used |
| (3) | J-21777-42 |
| (4) | J-23597-11 |
| (5) | J-23597-1 |
| (6) | J-21777-45 |
| CHEVROLET 8 1/2" RING GEAR | |
| (1) | J-21777-43 |
| (2) | J-21777-35 |
| (3) | J-21777-42 |
| (4) | J-21777-29 |
| (5) | J-21777-1 |
| (6) | (Small Step) J-21777-45 |
| CHEVROLET 8 7/8" RING GEAR | |
| (1) | J-21777-43 |
| (2) | J-21777-8 |
| (3) | J-21777-42 |
| (4) | J-21777-29 |
| (5) | J-21777-1 |
| (6) | (Large Step) J-21777-45 |
| CHEVROLET CORVETTE | |
| (1) | J-21777-43 |
| (2) | J-21777-35 |
| (3) | J-21777-42 |
| (4) | J-21777-36 |
| (5) | J-21777-1 |
| (6) | (Large Step) J-21777-45 |
| CHEVROLET CHEVETTE | |
| (1) | Not Available |
| (2) | Not Used |
| (3) | J-23597-21 |
| (4) | J-23597-20 |
| (5) | J-23597-6 |
| (6) | J-23597-4 |
| OLDSMOBILE 7 1/2" RING GEAR | |
| (1) | J-8619-3 |
| (2) | Not Used |
| (3) | J-8619-12 |
| (4) | J-23597-11 |
| (5) | J-21777-1 |
| (6) | J-21777-45 |
| OLDSMOBILE 8 1/2" RING GEAR | |
| (1) | J-8619-13 |
| (2) | Not Used |
| (3) | J-8619-12 |
| (4) | (Step A) J-21777-21 |
| (5) | J-21777-1 |
| (6) | J-8619-10 |
| OLDSMOBILE 8 7/8" RING GEAR | |
| (1) | J-8619-13 |
| (2) | Not Used |
| (3) | J-8619-12 |
| (4) | (Step B) J-21777-2 |
| (5) | J-21777-1 |
| (6) | J-21777-3 |
| OLDSMOBILE 9 3/8" RING GEAR | |
| (1) | J-8619-13 |
| (2) | J-21777-8 |
| (3) | J-8619-12 |
| (4) | (Step B) J-21777-21 |
| (5) | J-21777-1 |
| (6) | J-21777-3 |
| PONTIAC 6 1/2" & 7 1/2" RING GEAR | |
| (1) | J-21777-43 |
| (2) | J23597-13 (6 1/2"), J-23597-12 (7 1/2 ") |
| (3) | J-8619-12 |
| (4) | J-23597-11 |
| (5) | J-23597-1 |
| (6) | J-23597-4 |
| PONTIAC 8 1/2" RING GEAR | |
| (1) | J-8619-13 |
| (2) | Not USed |
| (3) | J-8619-12 |
| (4) | J-21777-26 |
| (5) | J-21777-1 |
| (6) | J-8619-10 |
| PONTIAC 8 7/8" RING GEAR | |
| (1) | J-8619-13 |
| (2) | J-21777-8 |
| (3) | J-8619-12 |
| (4) | J-21777-2 |
| (5) | J-21777-1 |
| (6) | J-21777-3 |
