Chevrolet
>>
1982
>>
Camaro L4-151 2.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel System
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Fuel System

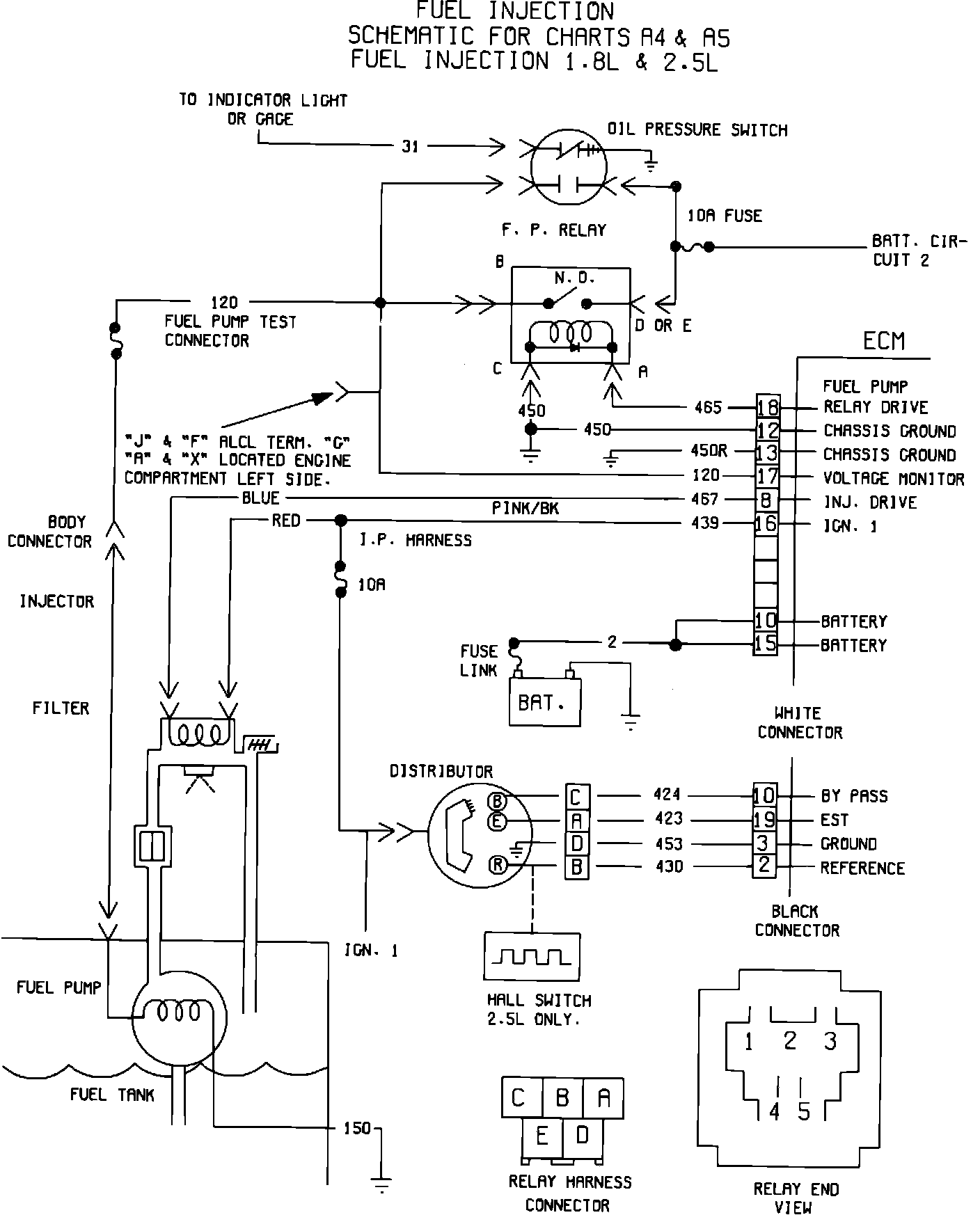

Fig. 8 Fuel System Wiring Diagram: 1982-83 112 (1.8L) & 151 (2.5L):
