Steering Gear

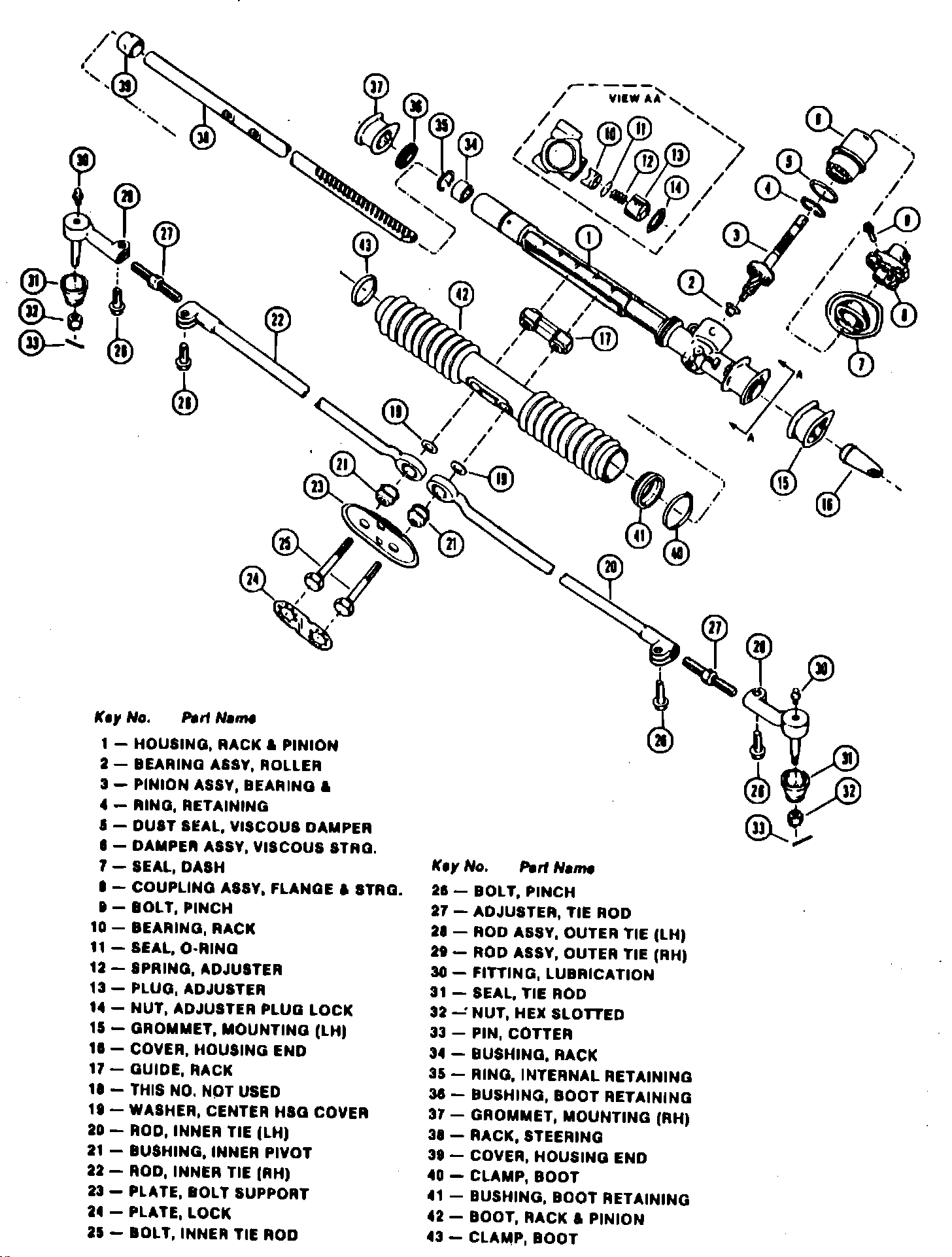

Fig. 5 Exploded view of Saginaw rack & pinion steering gear. Cavalier, Firenza, Skyhawk & 2000:
