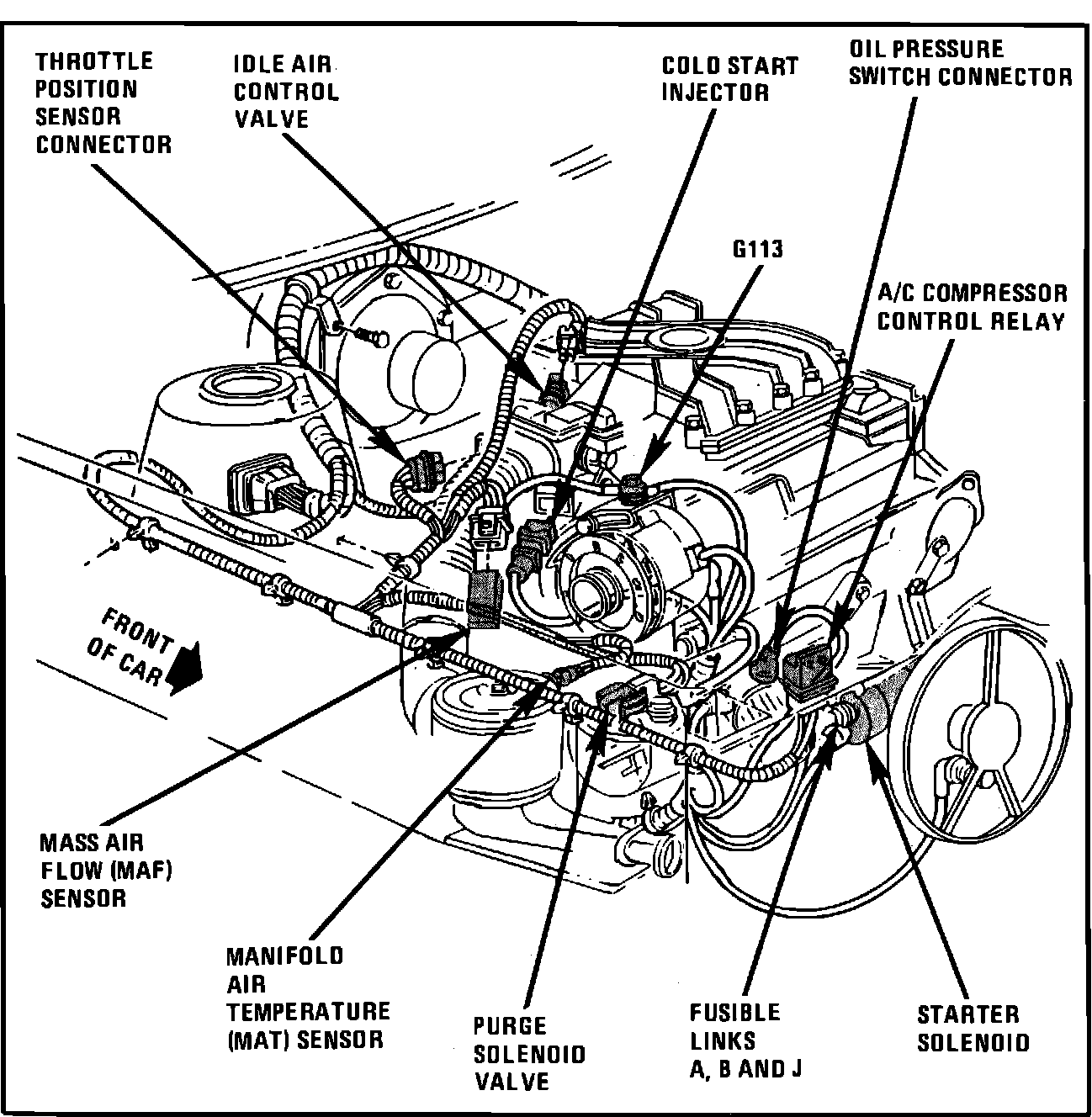

A/C Compressor Control Relay
RH Front Of Engine.:
Upper RH Corner Of Engine Dash On Bracket
Applicable to: Celebrity w/V6-173 VIN W
