Diode: Locations

Upper RH Rear Of Engine.:




Engine Harness, Near Glow Plug Controller

Applicable to: 1984-85 Celebrity w/Diesel

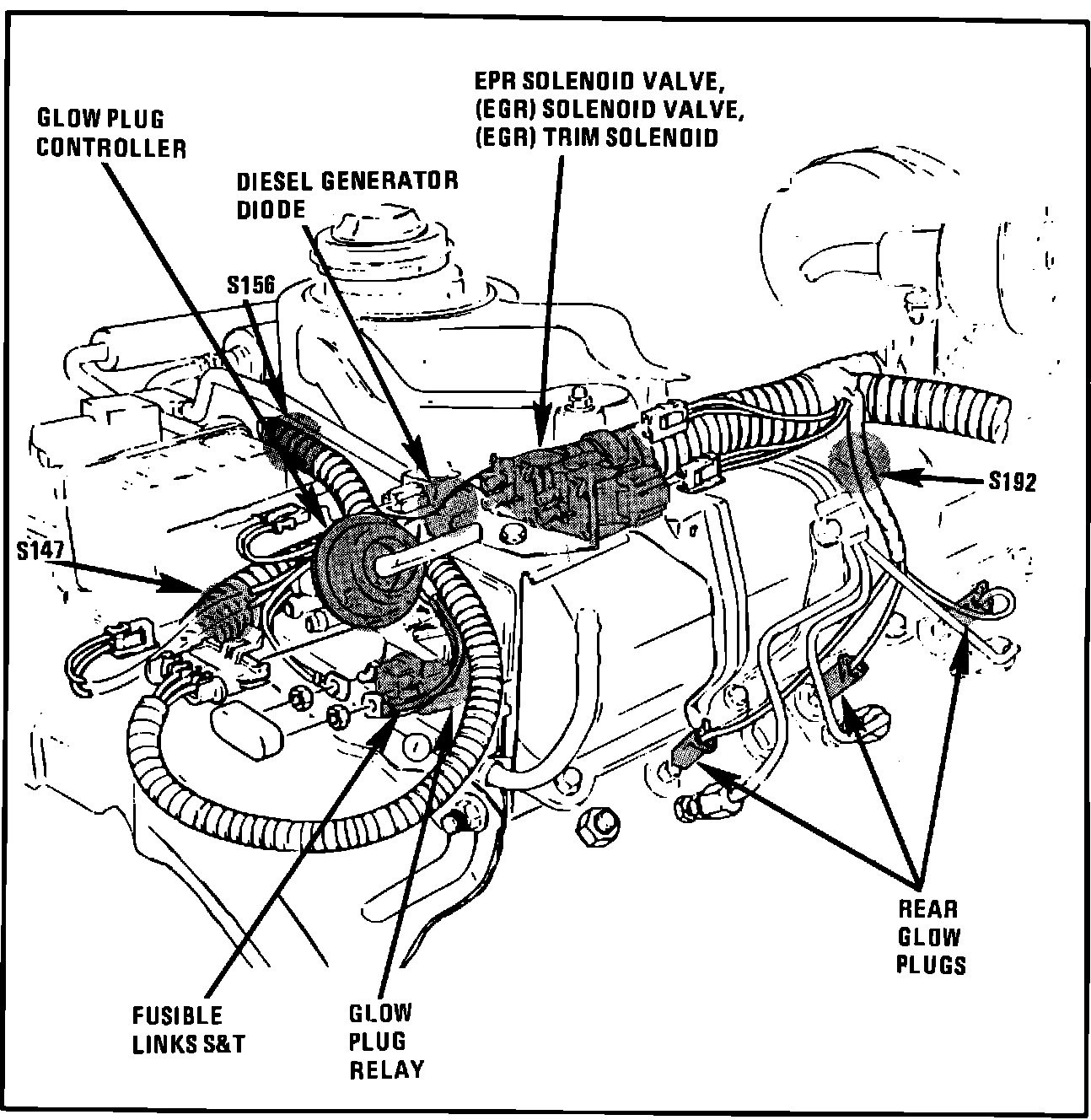

LH Rear Of Engine.:




Engine Harness, Near Glow Plug Controller

Applicable to: 1984 Celebrity w/Diesel
