EFE Relay: Locations

EFE Relay.:




Left Fender Above Diagnostic Connector

Applicable to: Gasoline Engine

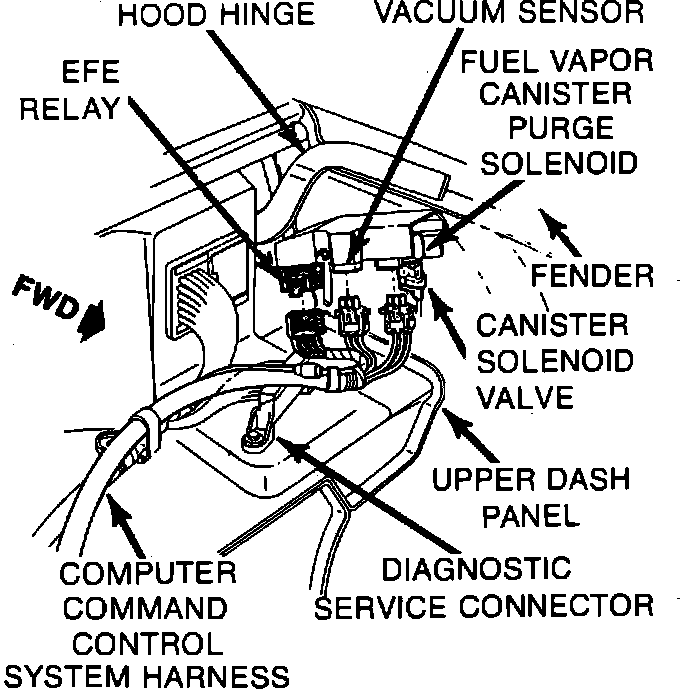

Computer Command Control System Wiring:




Left Fender Above Diagnostic Connector
