Front Injector
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

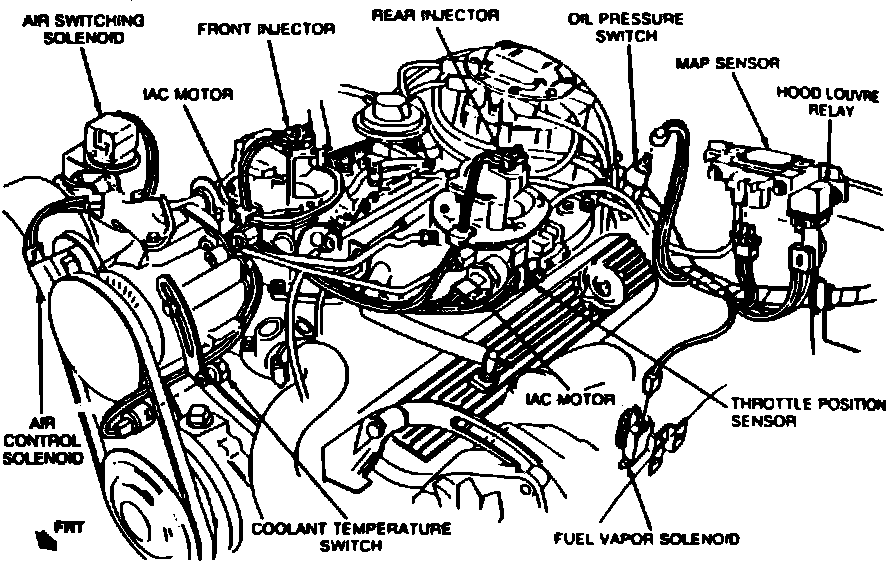

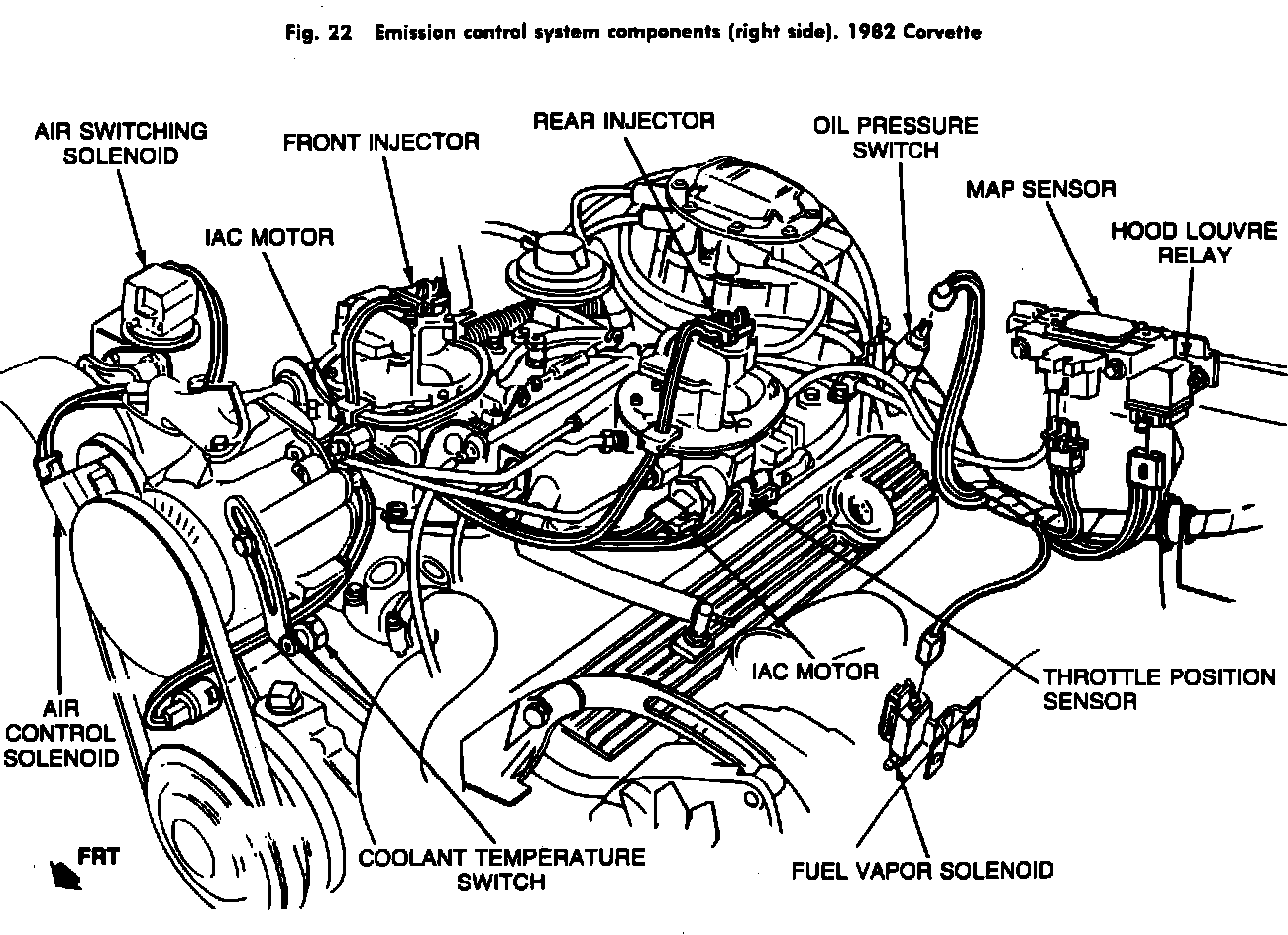

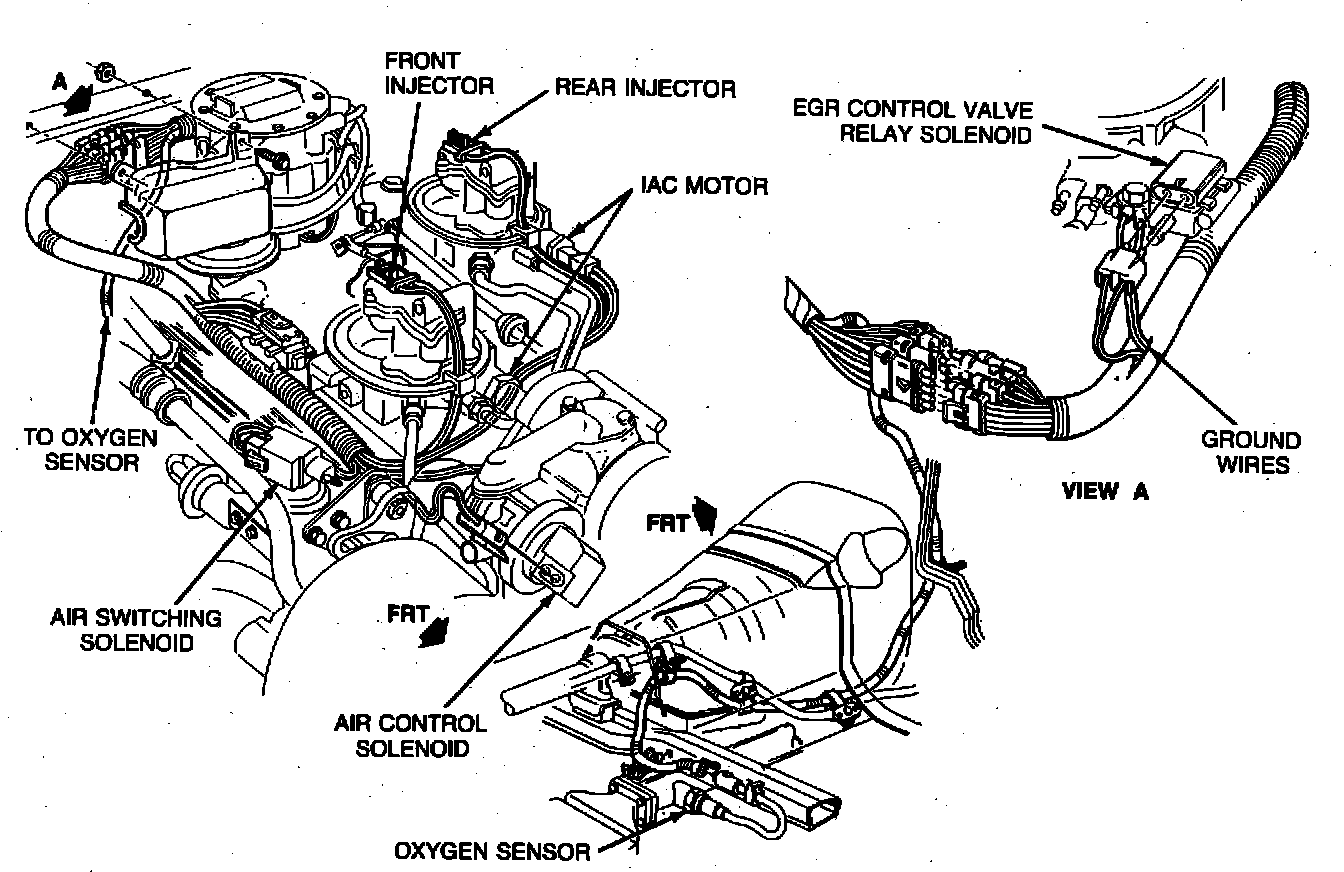

Front Injector
Front LH Side Of Engine.:
Front RH Side Of Engine.:
Top Of Engine.:
Top RH Side Of Engine
Applicable to: 1981-82
