Performance Check - EST

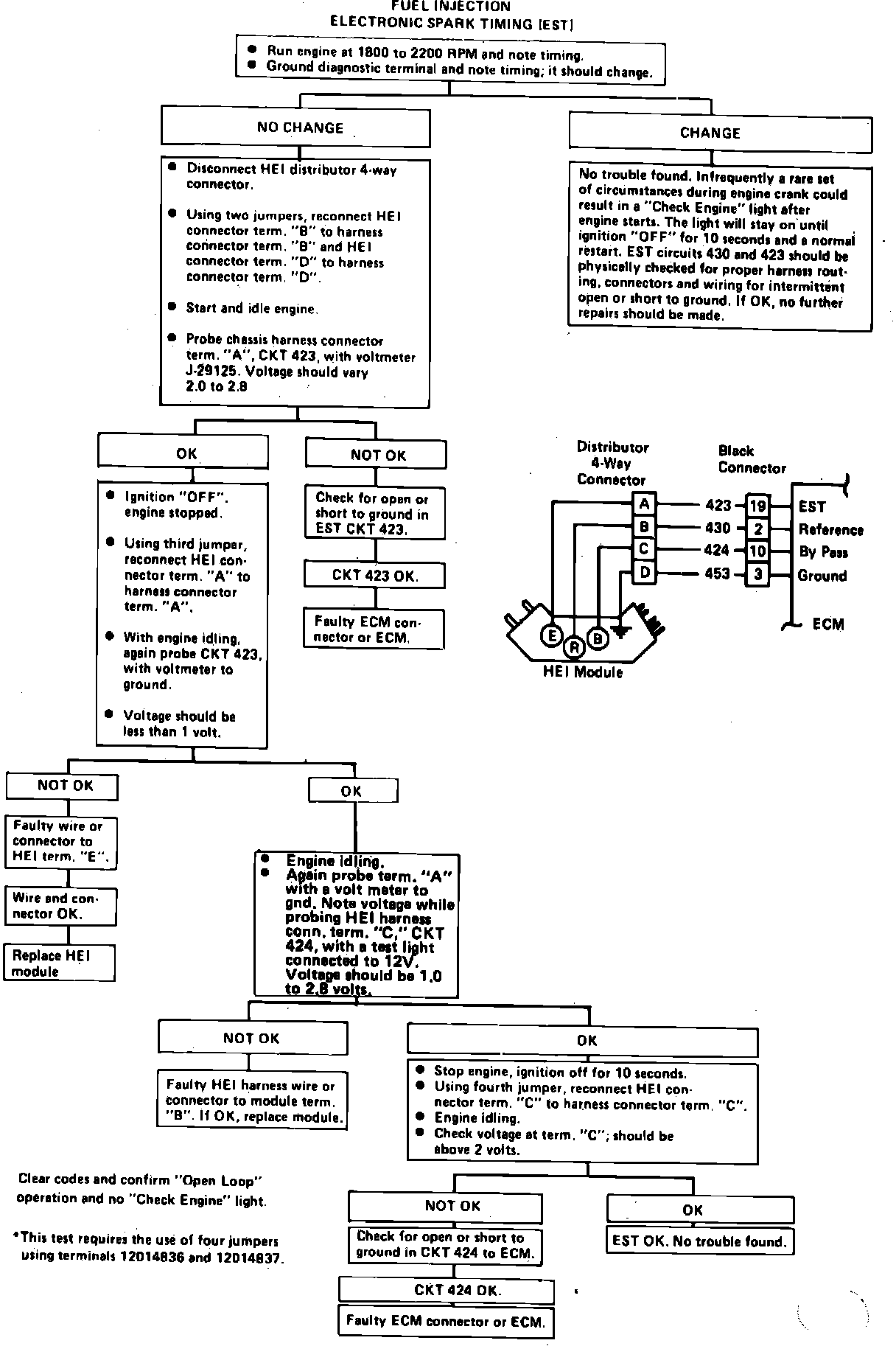

Fig.5a Code 42 chart. V8 models with throttle body fuel Injection (TBI) (Use this chart with HEI-EST ignition system diagnostic charts):
