Fuel Injector

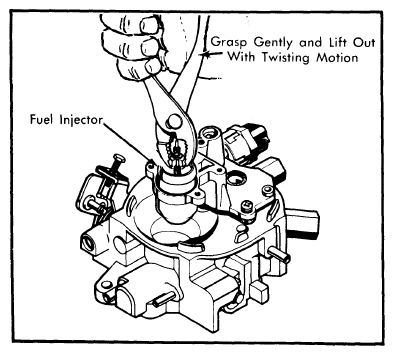

- Using a pair of pliers, gently grasp center collar of injector between electrical connectors. Carefully pull injector out with a twisting motion. See Fig 1NOTE: Use care in removing injector to prevent damage to electrical connectors, fuel filter and nozzle. Injector is serviced as complete assembly only. Injectors are not interchangeable between front and rear units.
- Carefully rotate injector filter back and forth to remove from base of injector. Remove large "O" ring and steel back-up washer at top of injector cavity in fuel meter body. Remove small "O" ring at bottom of injector cavity.
