1.9L CEC Tests W/Codes
>>
Chart 6 - No Code 12
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Chart 6 - No Code 12

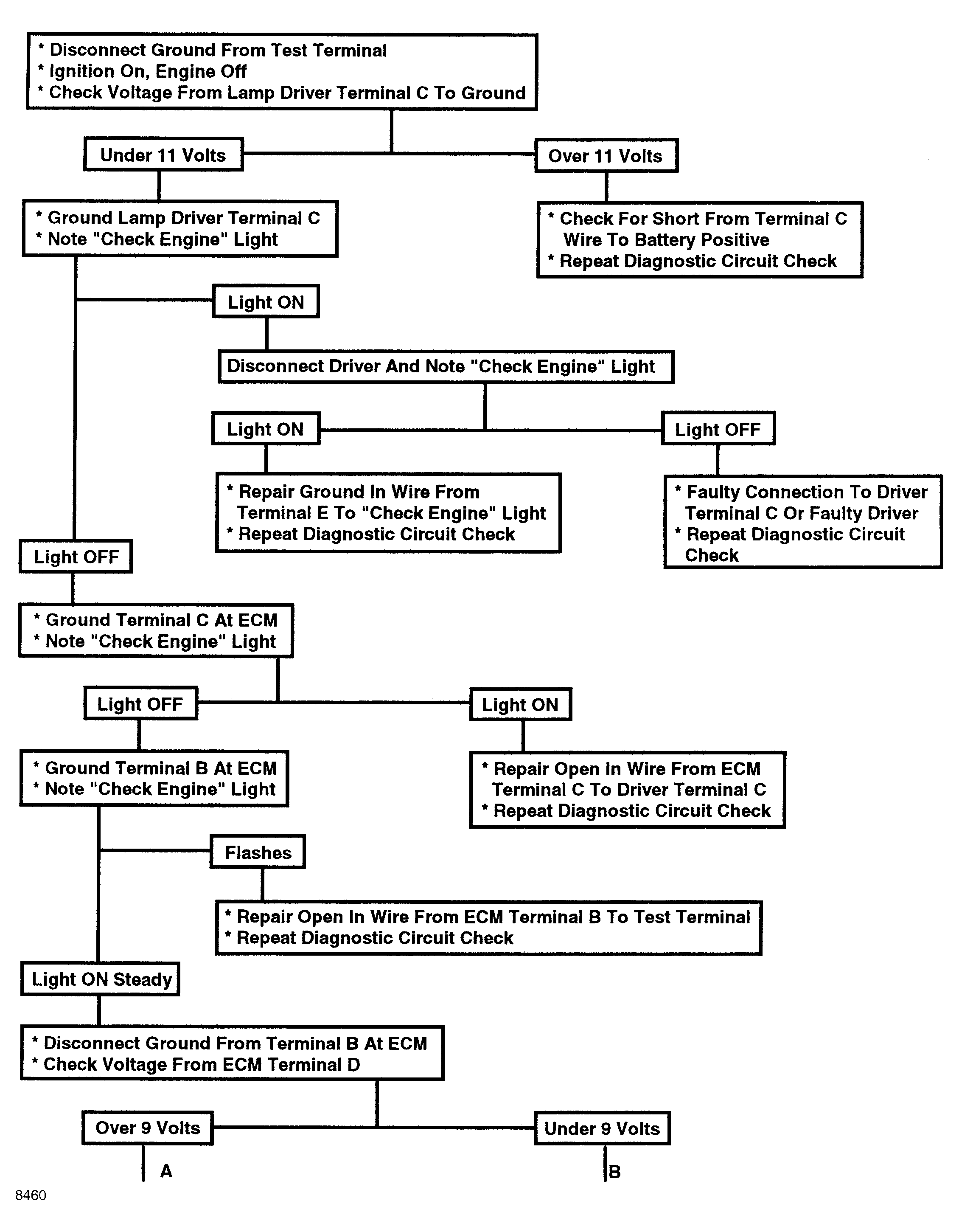

Fig 1: Chart No. 6 - Won't Flash Code 12

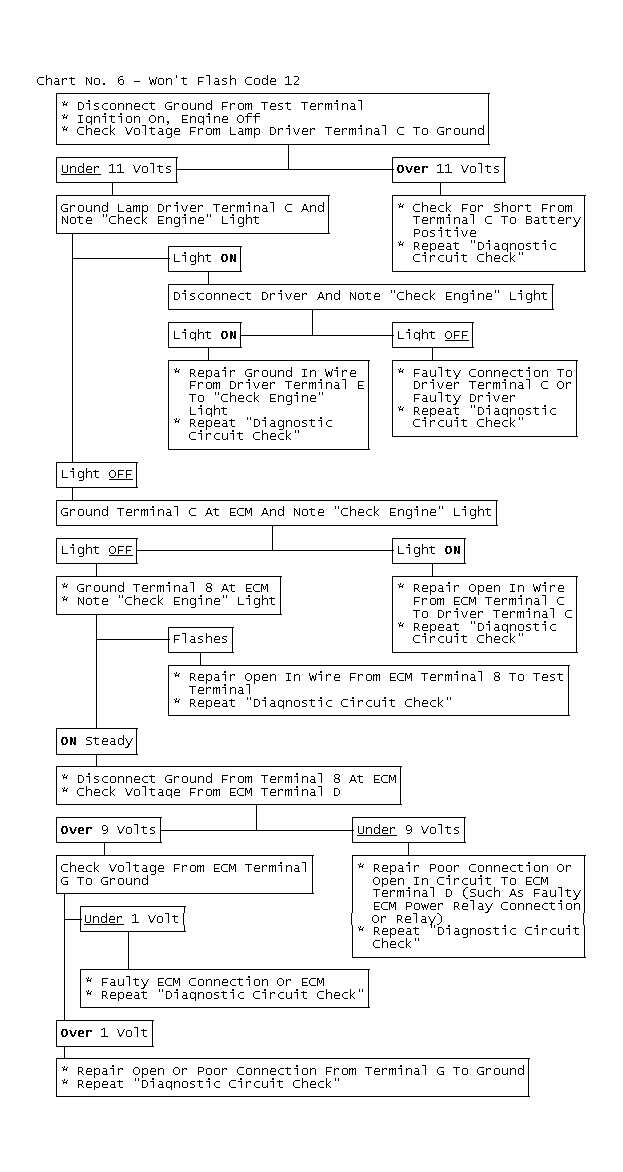

Fig 2: Chart No. 6 - Won't Flash Code 12
