Home
>>
Chevrolet
>>
1983
>>
Cab & Chassis S10, Standard
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
1.9L CEC Tests W/Codes
>>
Vacuum Control Valve Check
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Vacuum Control Valve Check

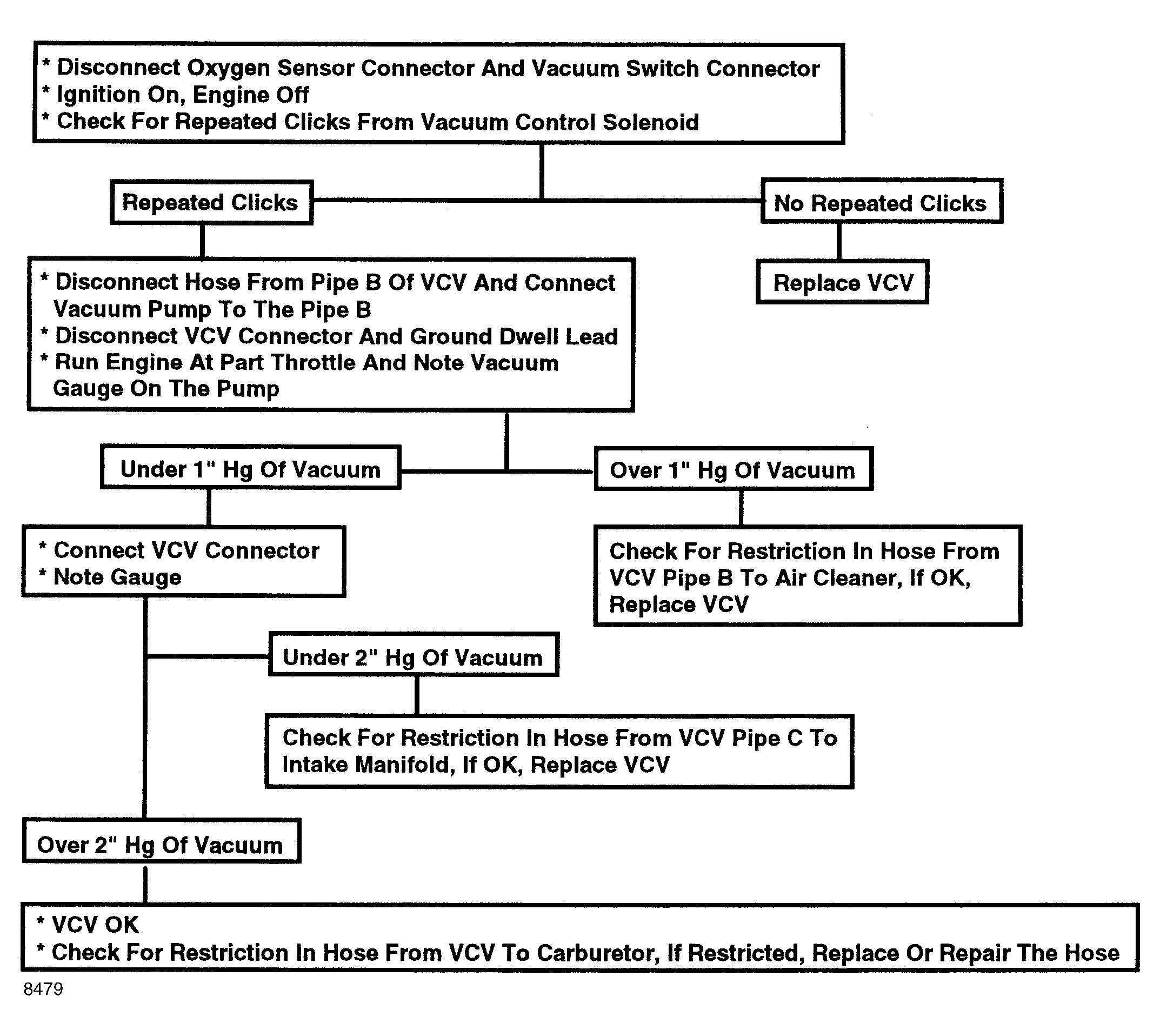

Fig 1: Flow Chart - Vacuum Control Valve Check
Fig 2: Flow Chart - Vacuum Control Valve Check
