Code 24 - VSS Circuit

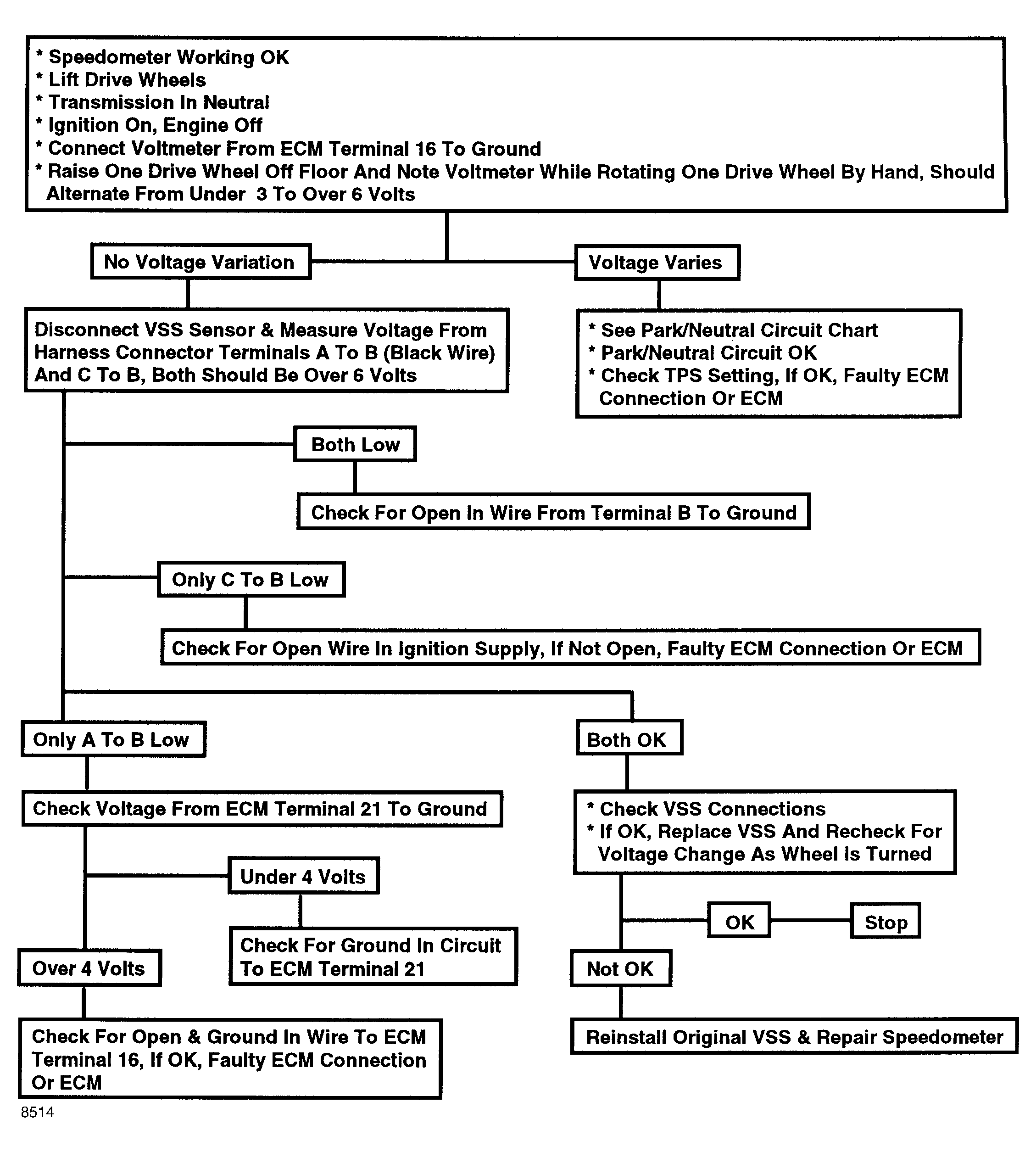

Fig 1: Flow Chart, Code 24 - Buffer & VSS Remote from Inst Panel Cluster
G8514

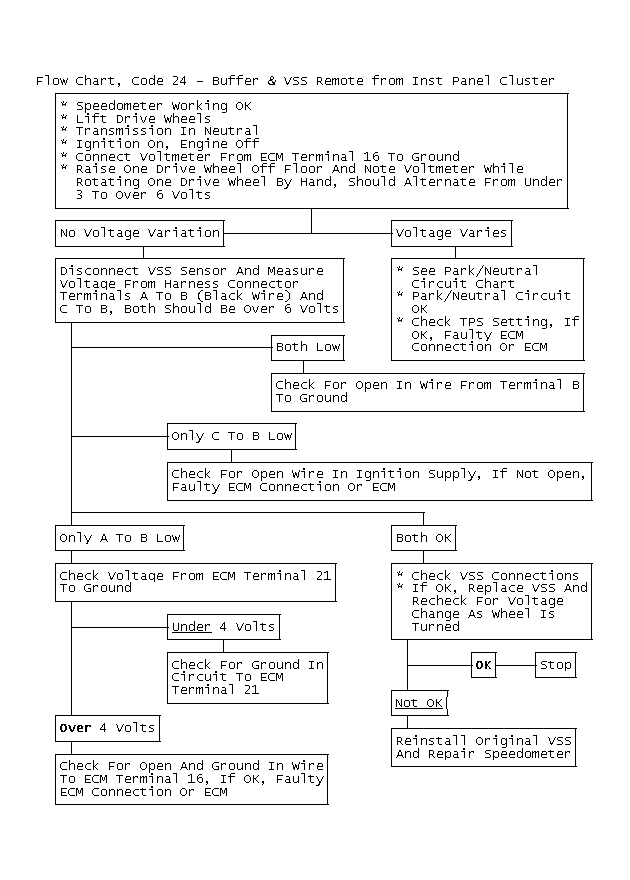

Fig 2: Flow Chart, Code 24 - Buffer & VSS Remote from Inst Panel Cluster
GB0047700
