Diagnostic Circuit Check

Fig 1: Flow Chart - Diagnostic Circuit Check Chart
G240

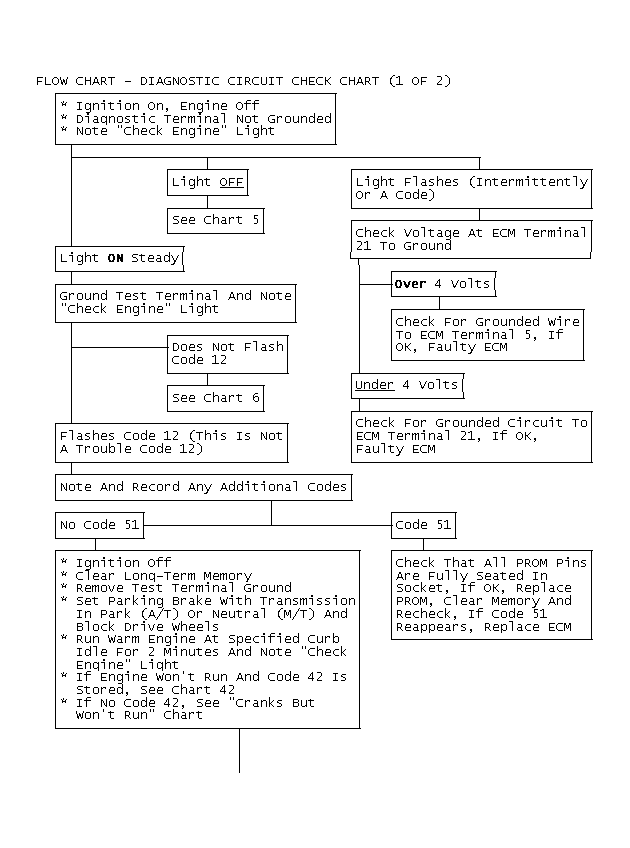

Fig 2: Flow Chart - Diagnostic Circuit Check Chart (1 OF 2)
GB0045585
Fig 3: Flow Chart - Diagnostic Circuit Check Chart (2 OF 2)
GB0045586
