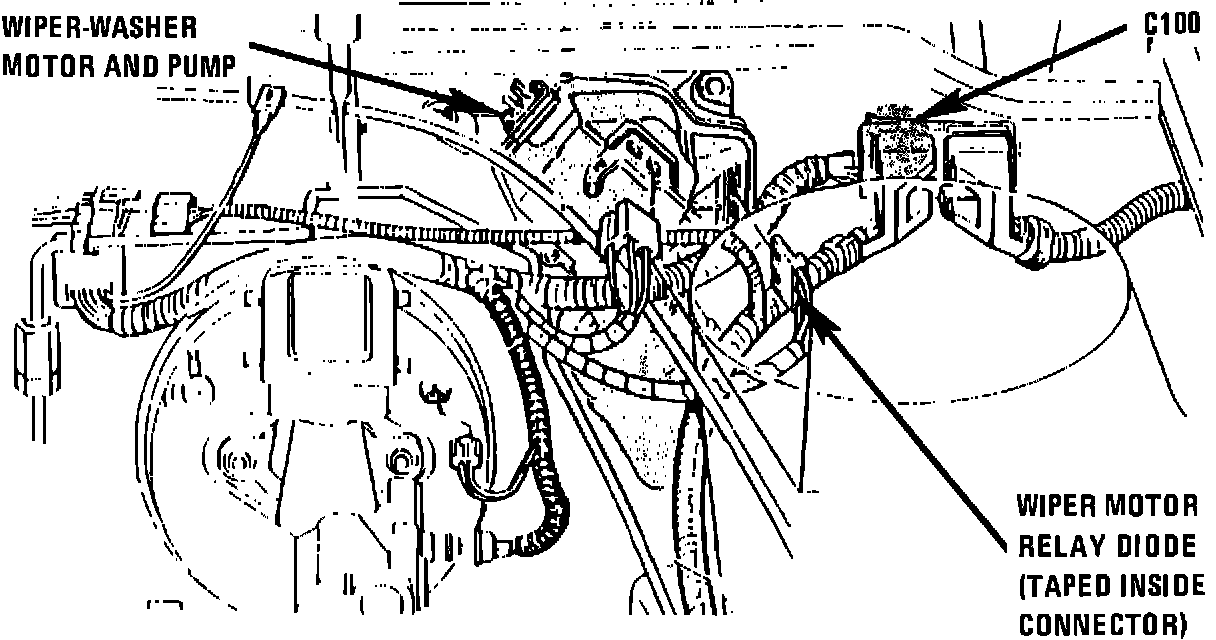

Wiper Motor Relay Diode

LH Side Of Engine Cowl.:

Taped In Wiper/Washer Motor Connector

Applicable to: 1984 Celebrity
