Exploded View M4MEF Quadrajet Carburetor

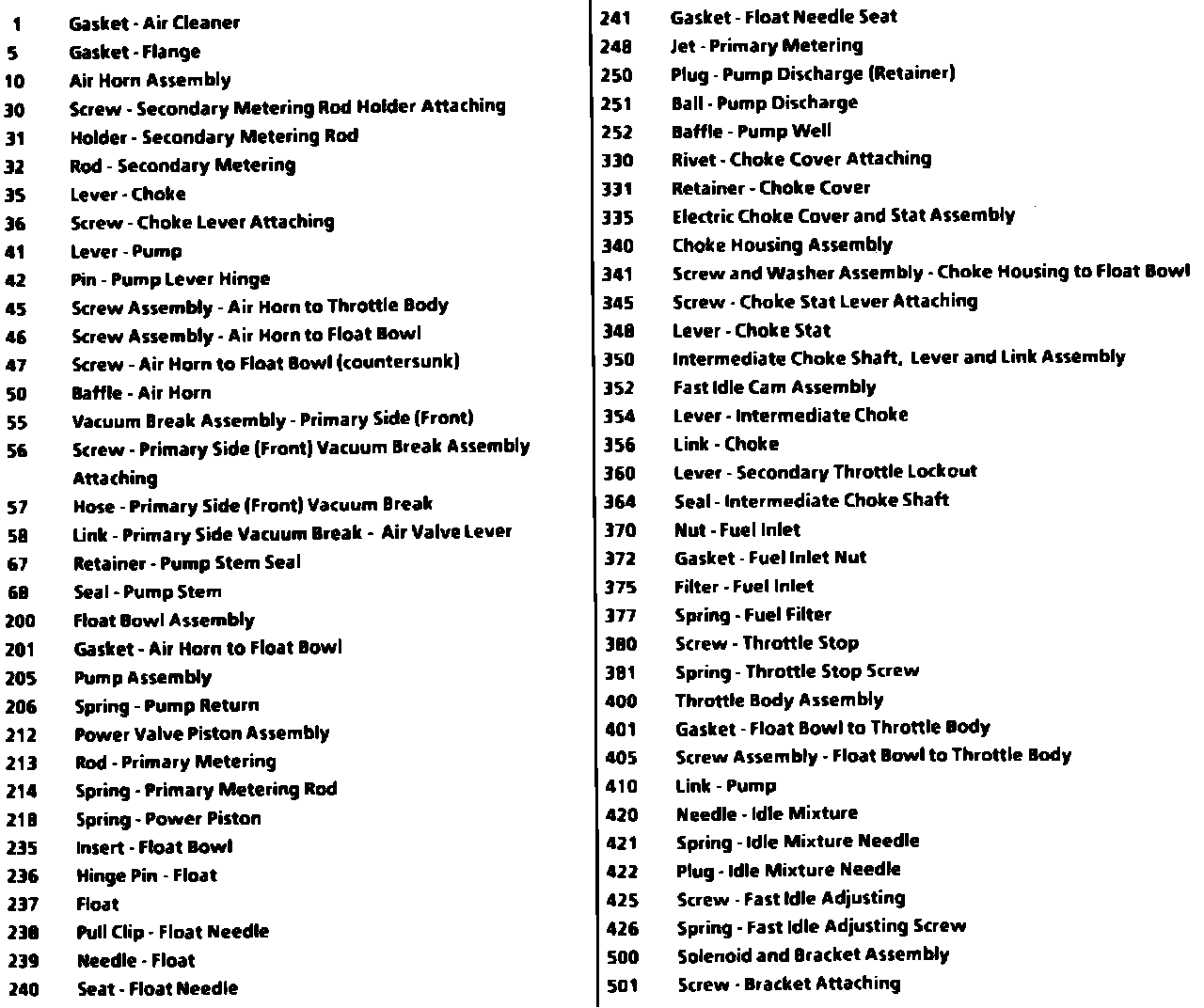

Fig. 5 Exploded view of Rochester M4MEF Quadrajet carburetor (Part 1 of 2):

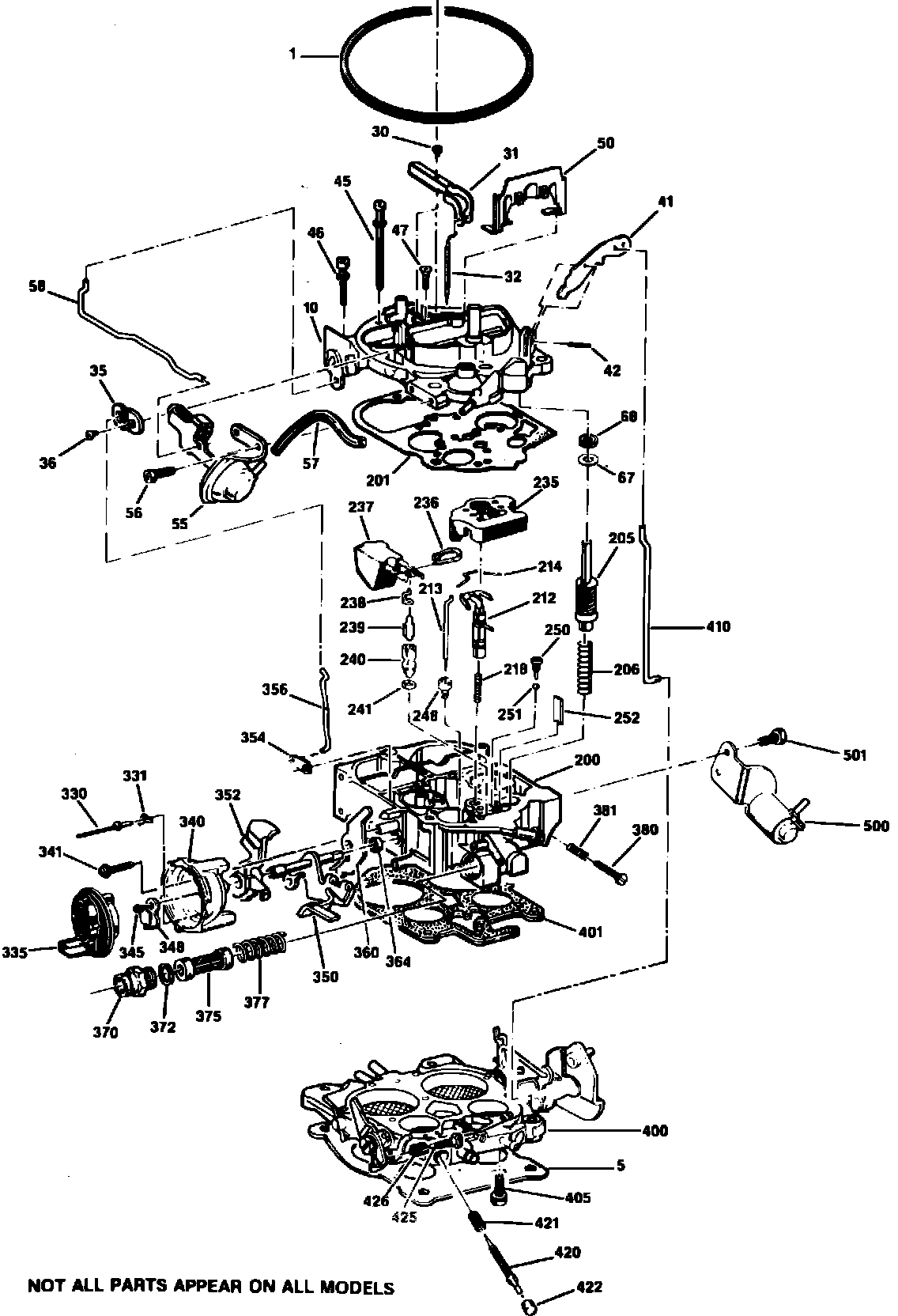

Fig. 5 Exploded view of Rochester M4MEF Quadrajet carburetor (Part 2 of 2):
