Terminal Identification

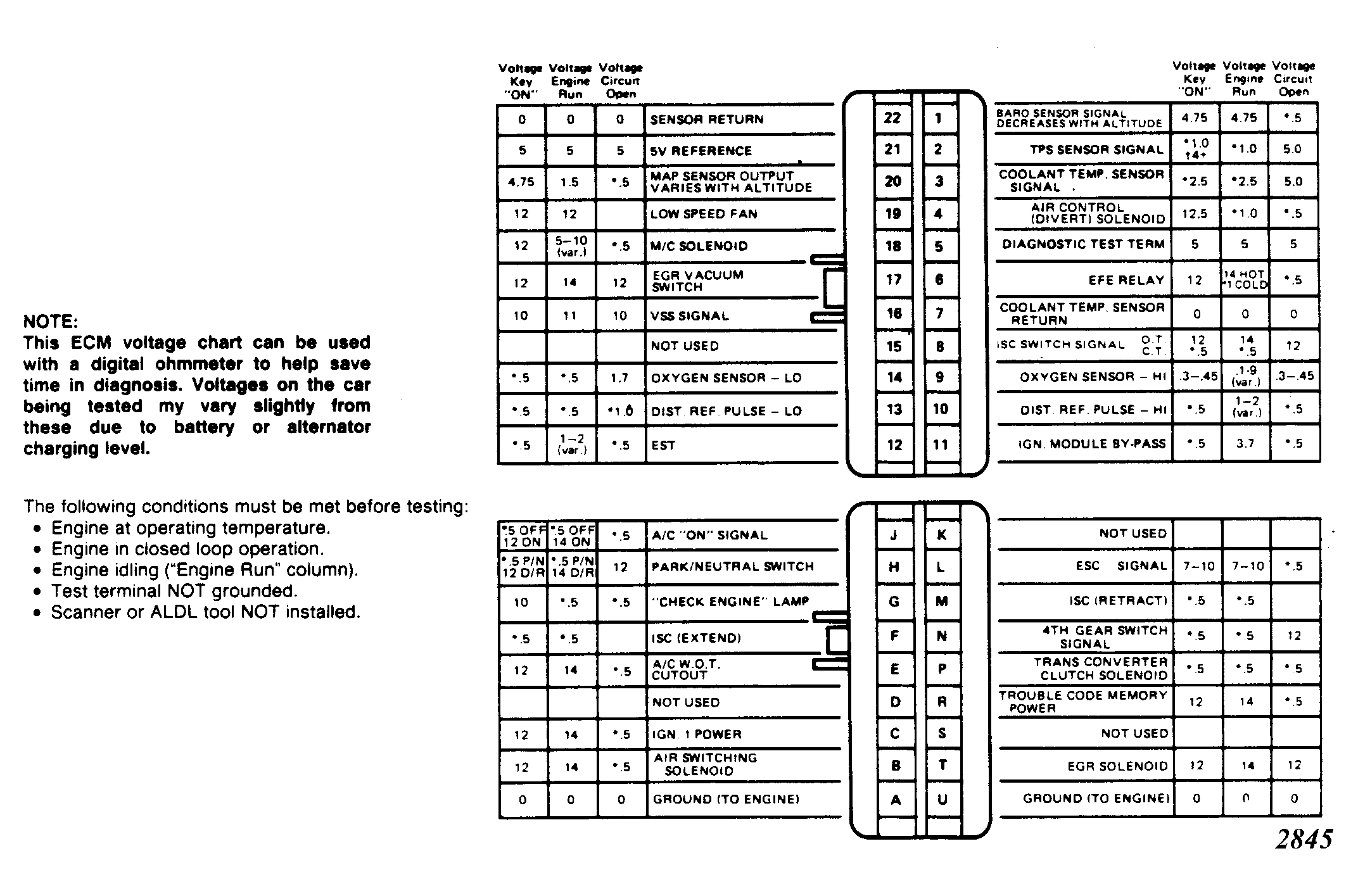

Fig 1: Full Function ECM Terminal Identification 2.8L (VIN X)

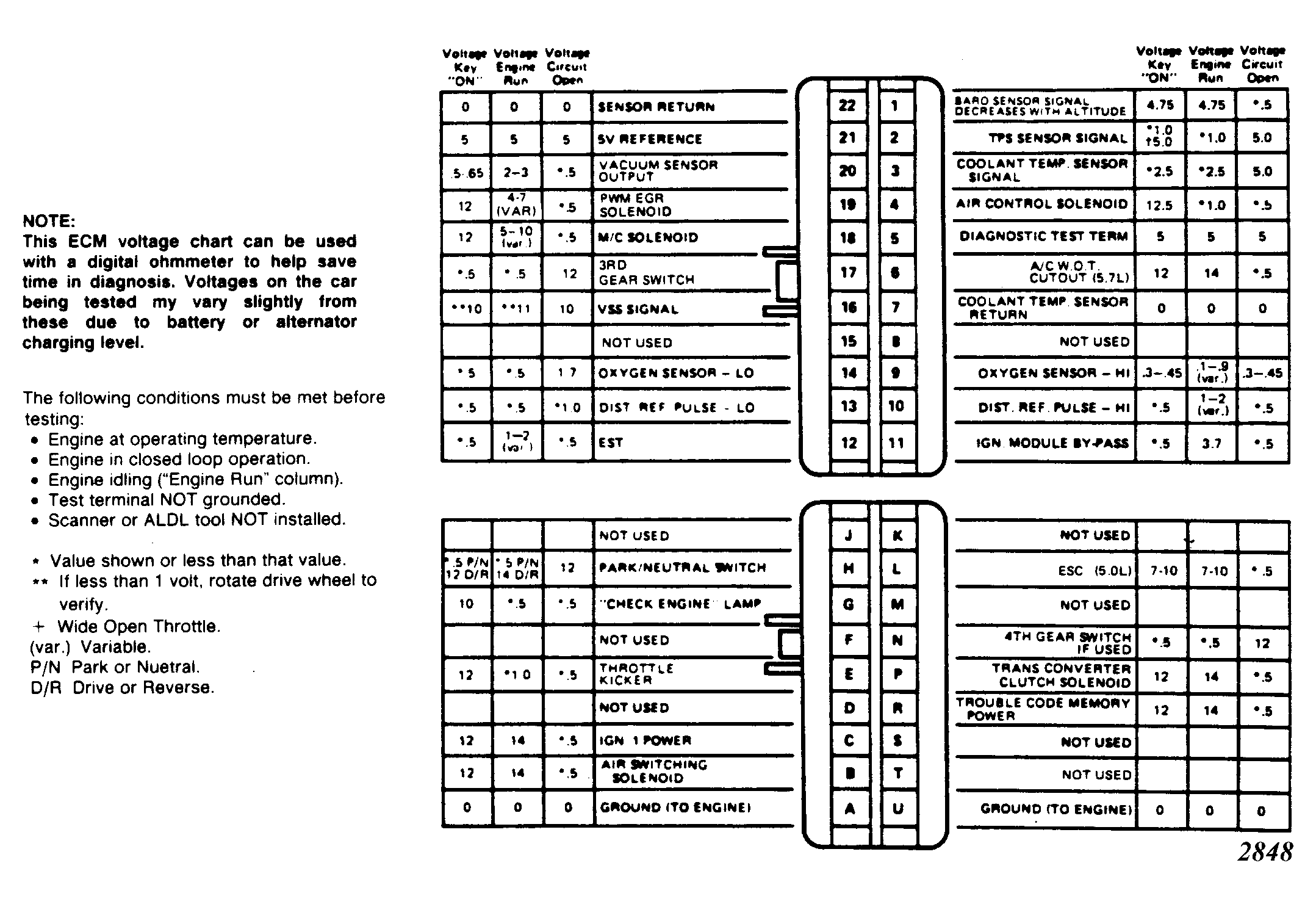

Fig 2: Full Function ECM Terminal Identification 3.0L (VIN E)

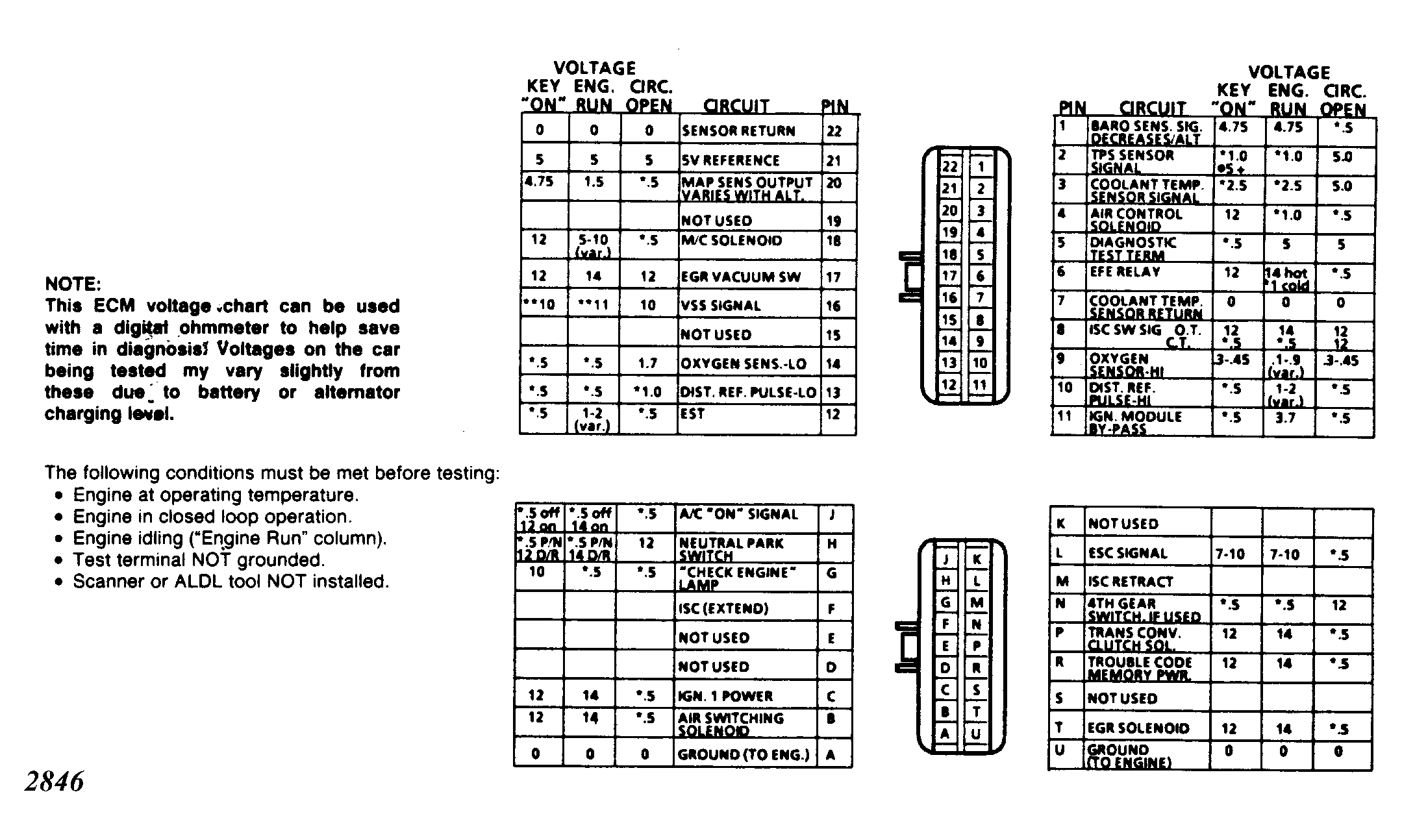

Fig 3: Full Function Terminal Identification 3.8L (VIN A)

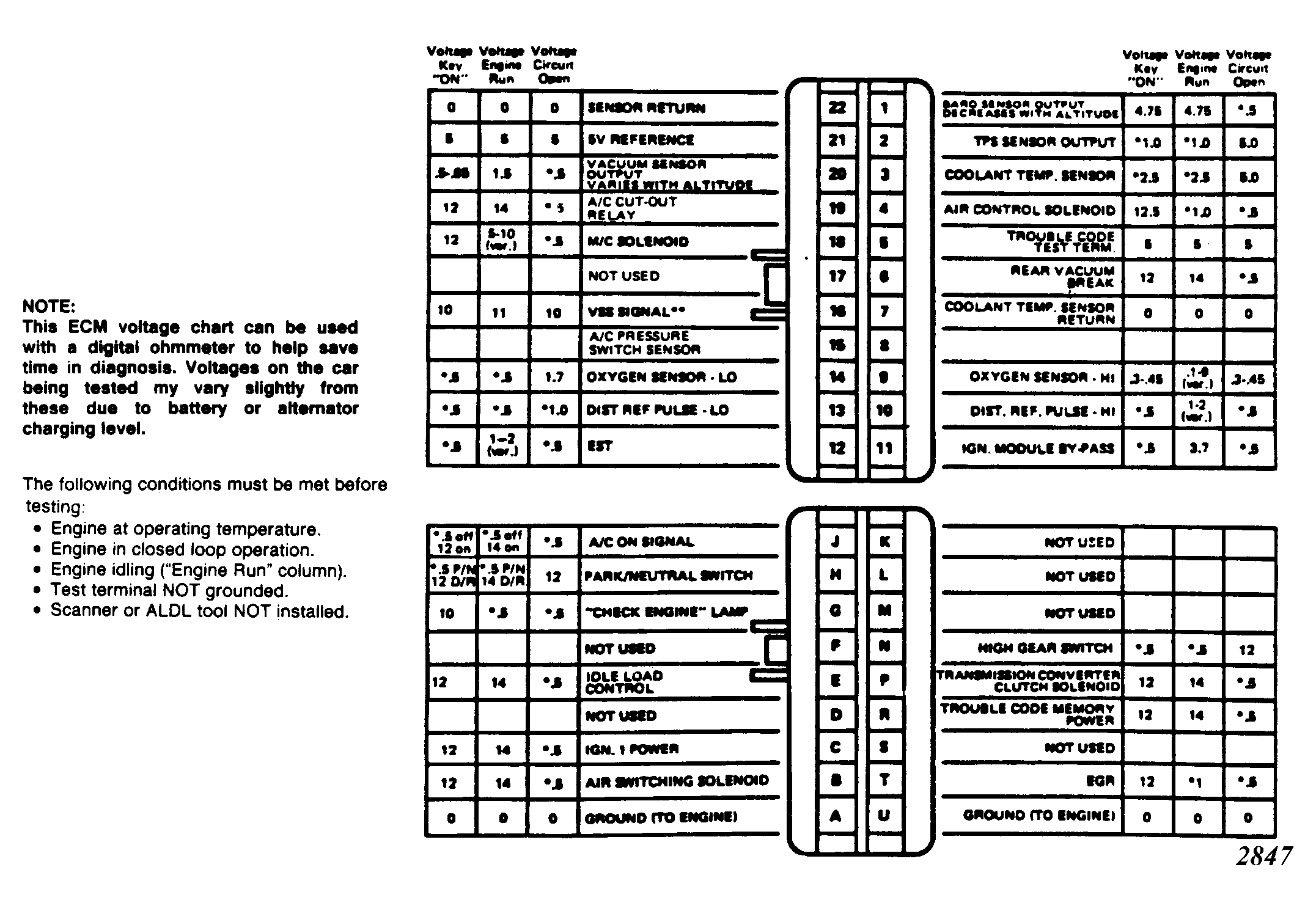

Fig 4: Full Function Terminal Identification 5.0 (VIN G)

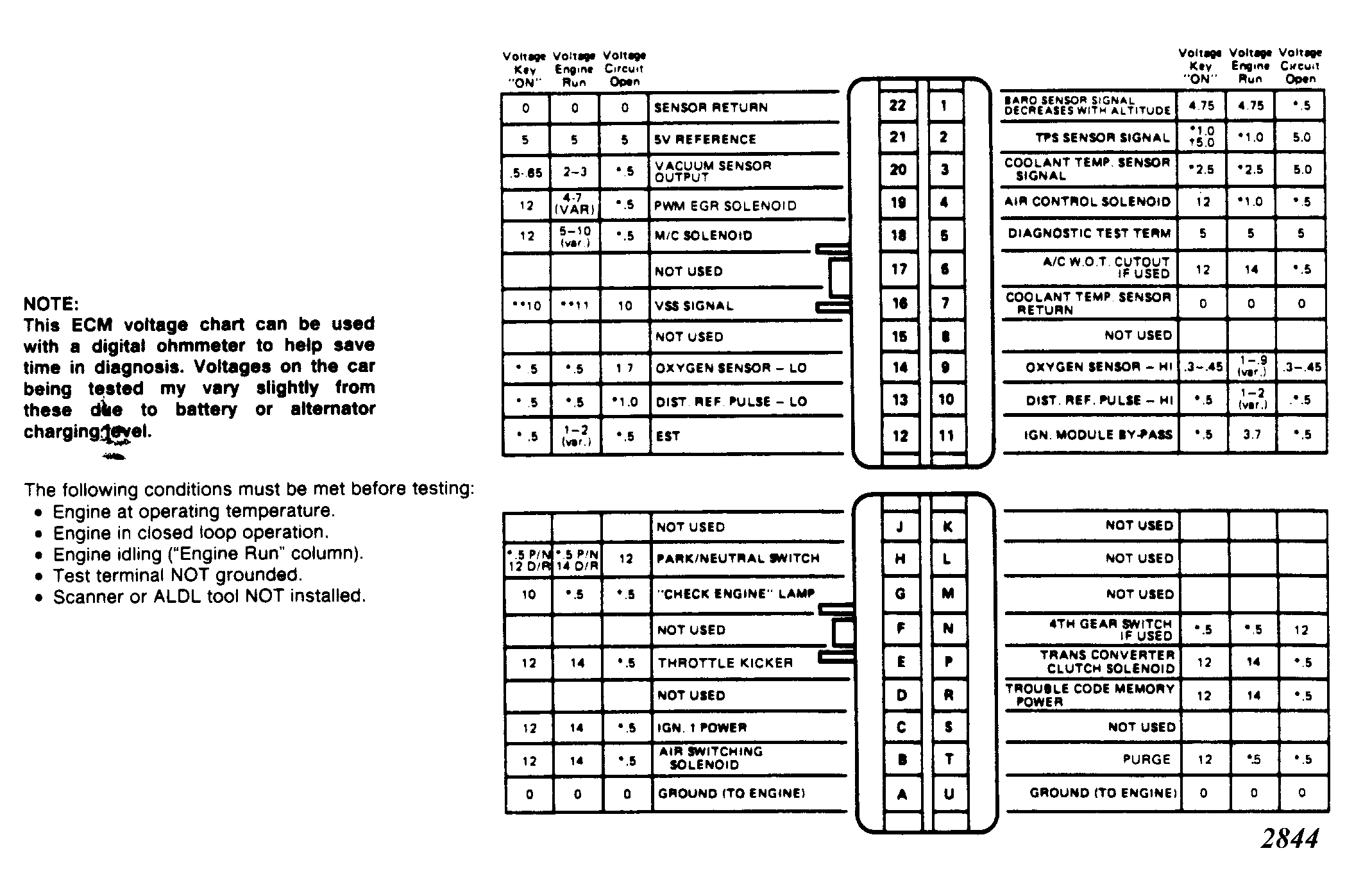

Fig 5: Full Function Terminal Identification 5.0 (VIN H) & 5.7L
