Torque Specifications

5 SPEED 77MM MANUAL TRANSMISSION
TORQUE SPECIFICATIONS

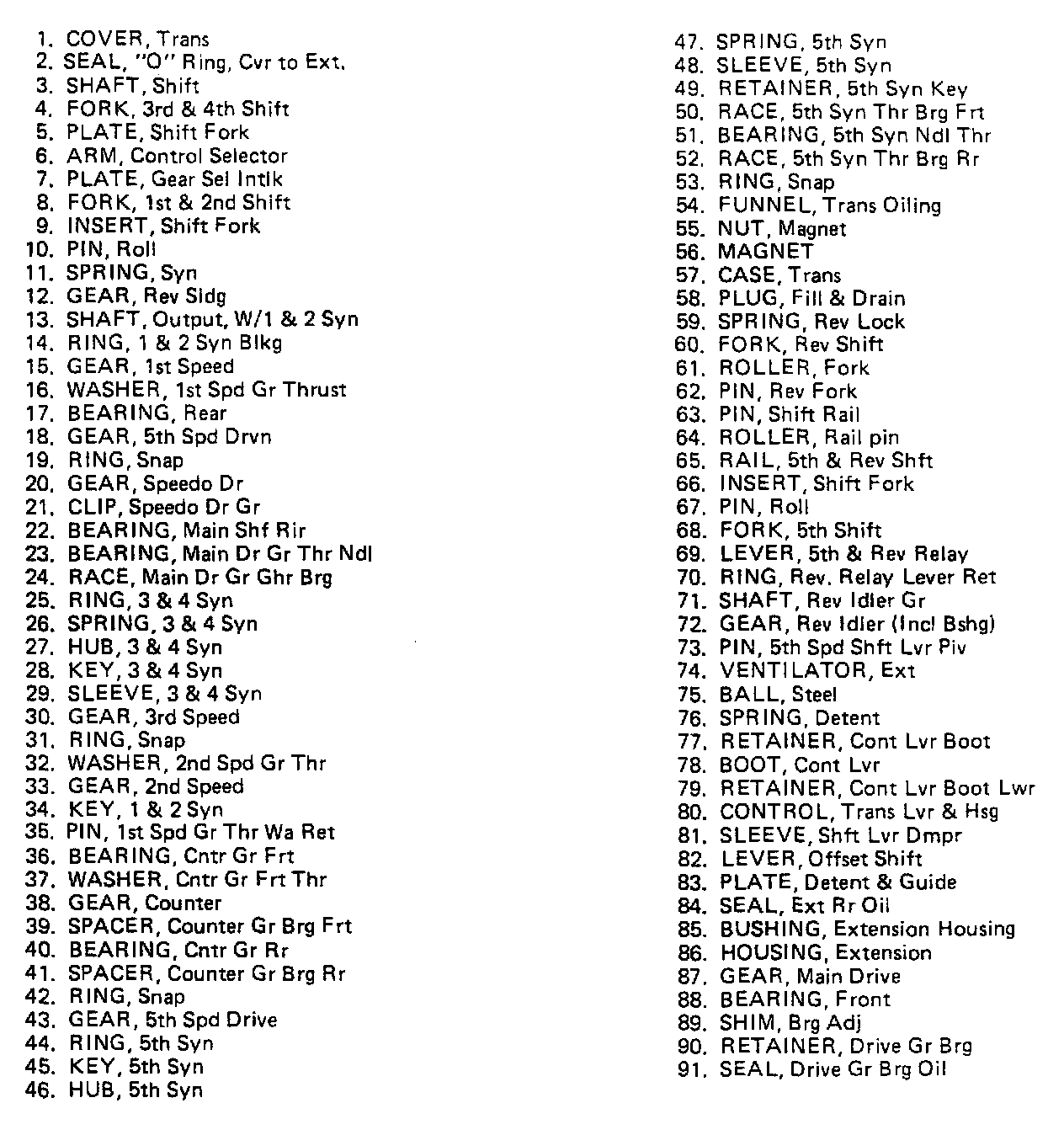

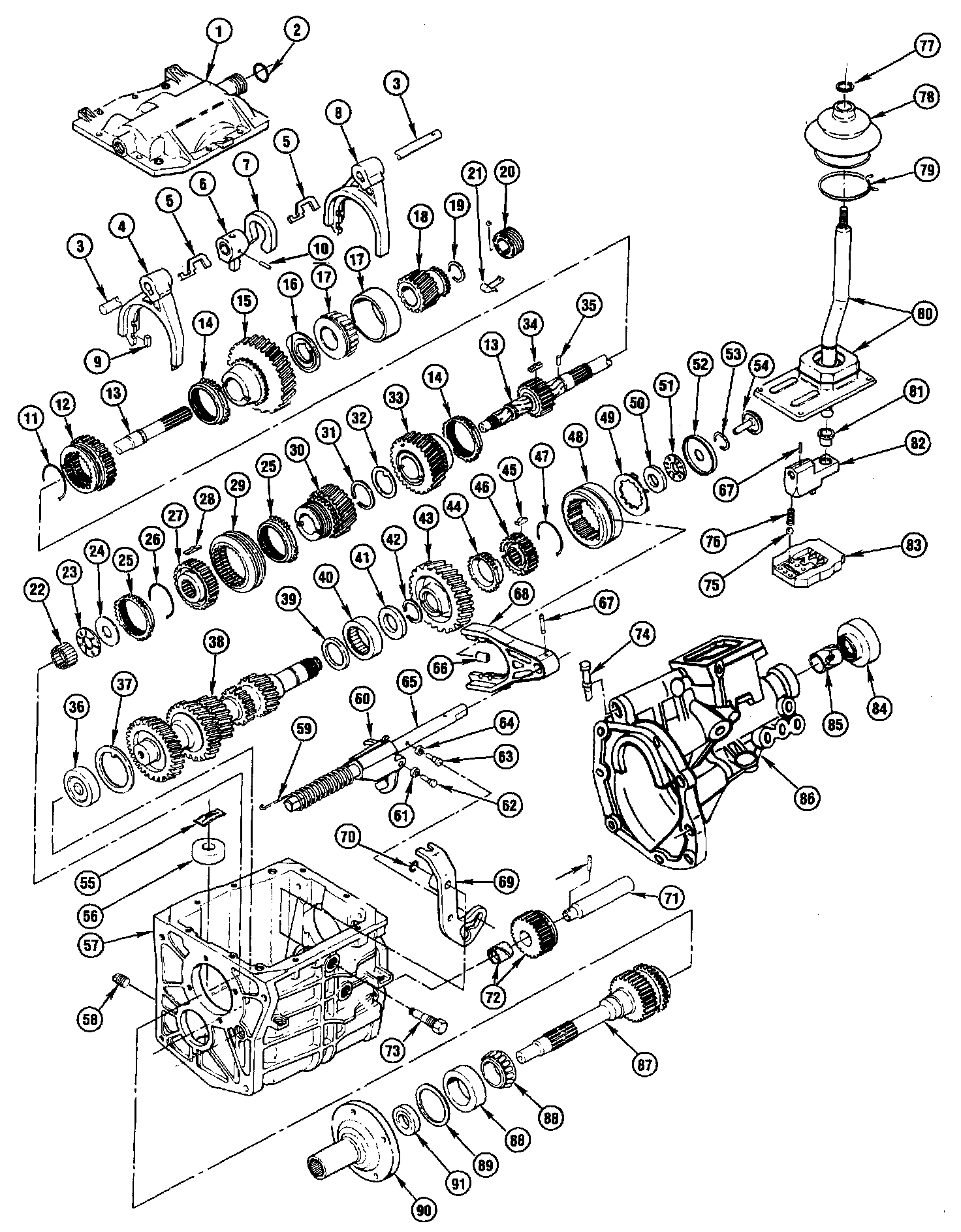

5 Speed 77mm Exploded View:





5 Speed 77mm Exploded view:





Torque Specifications Table:
