Electronic/Powertrain Control Module (ECM/PCM)

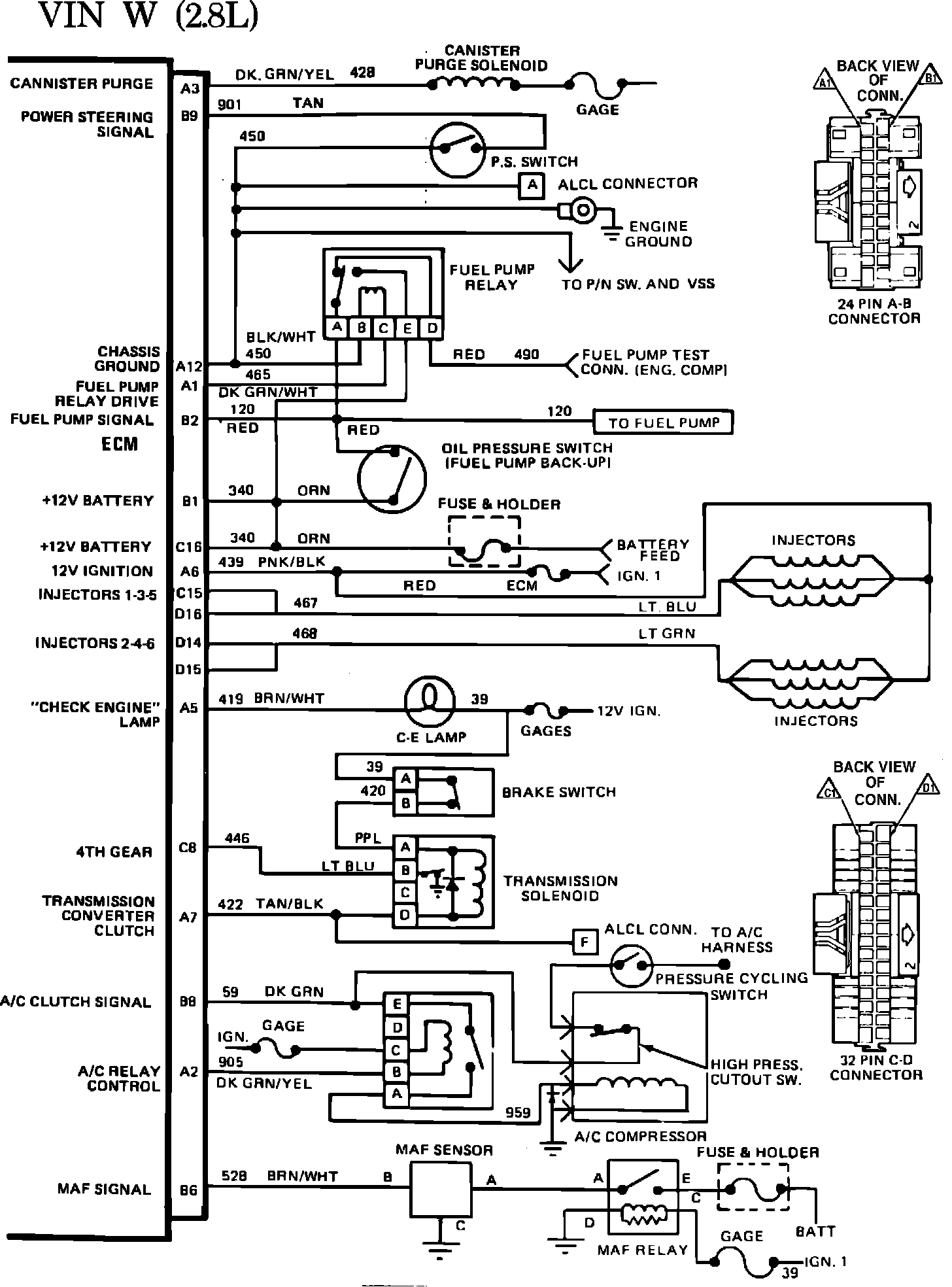

Fig. 037 ECM Wiring Diagram (1 of 2):

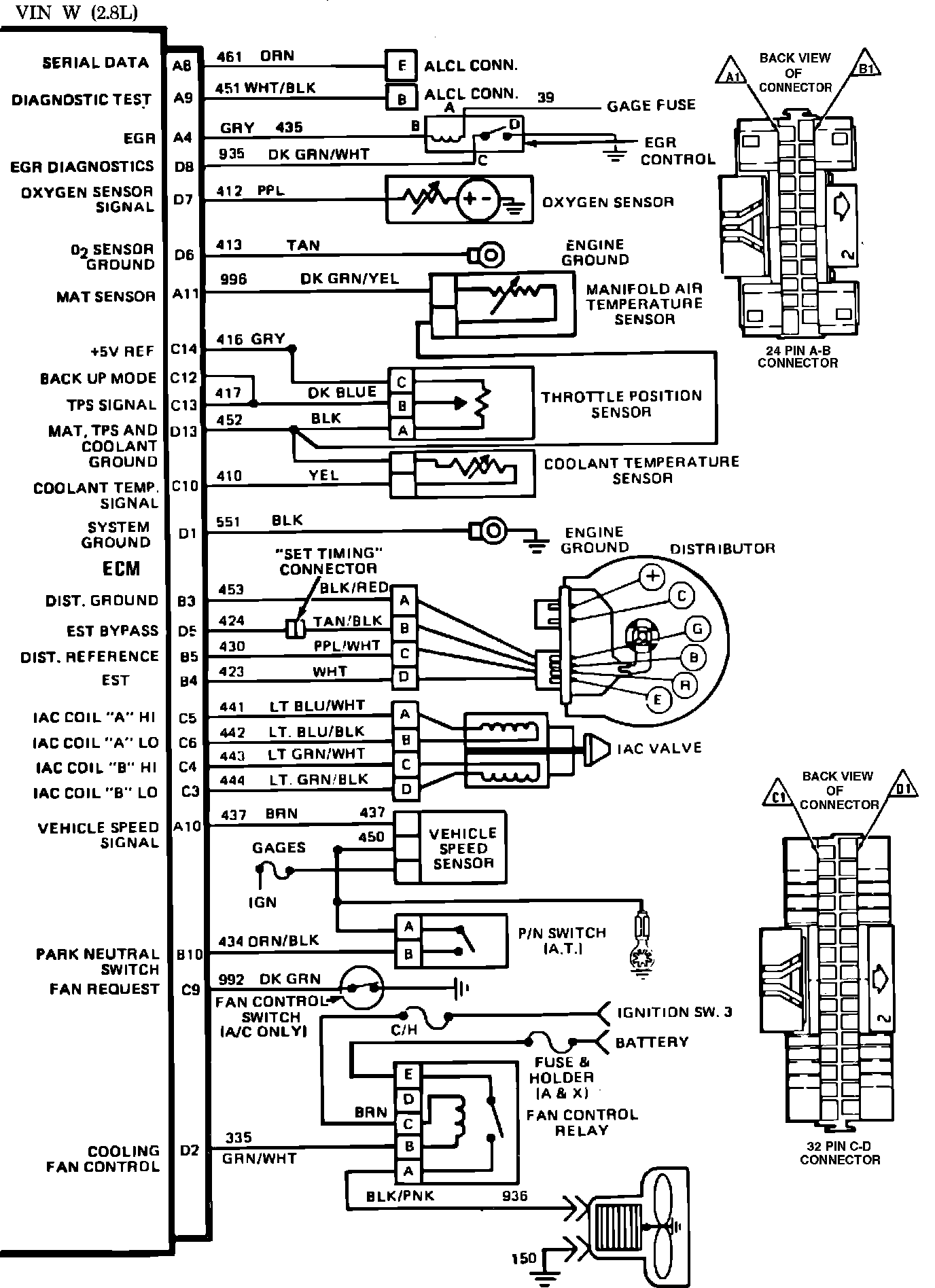

Fig. 038 ECM Wiring Diagram (2 of 2):
