Map Light

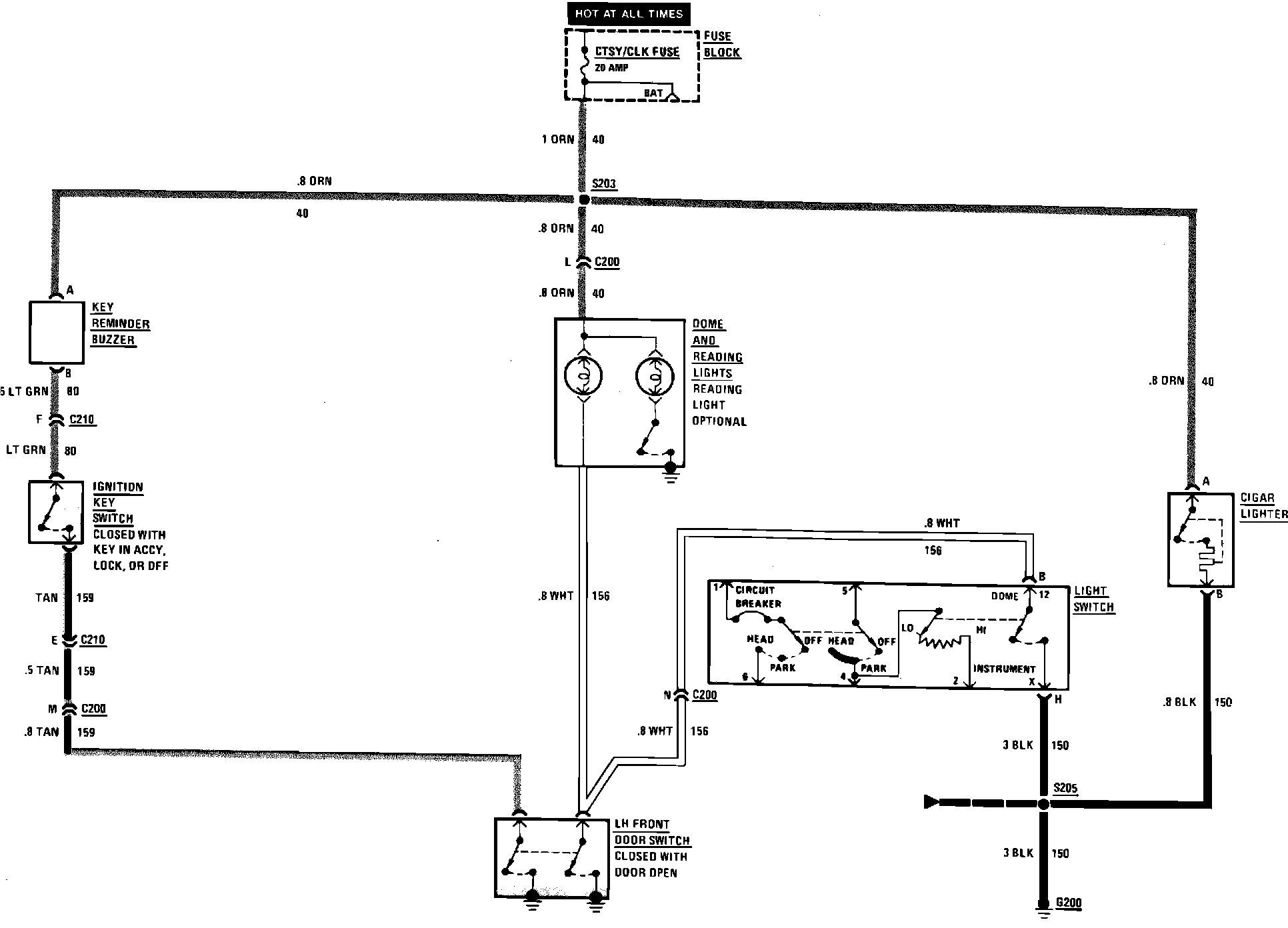

Fig. 21 Interior Lights, Ignition Key Reminder & Cigar Lighter Wiring Circuit. 1985 Chevette & T1000:
