Fuse Block: Locations

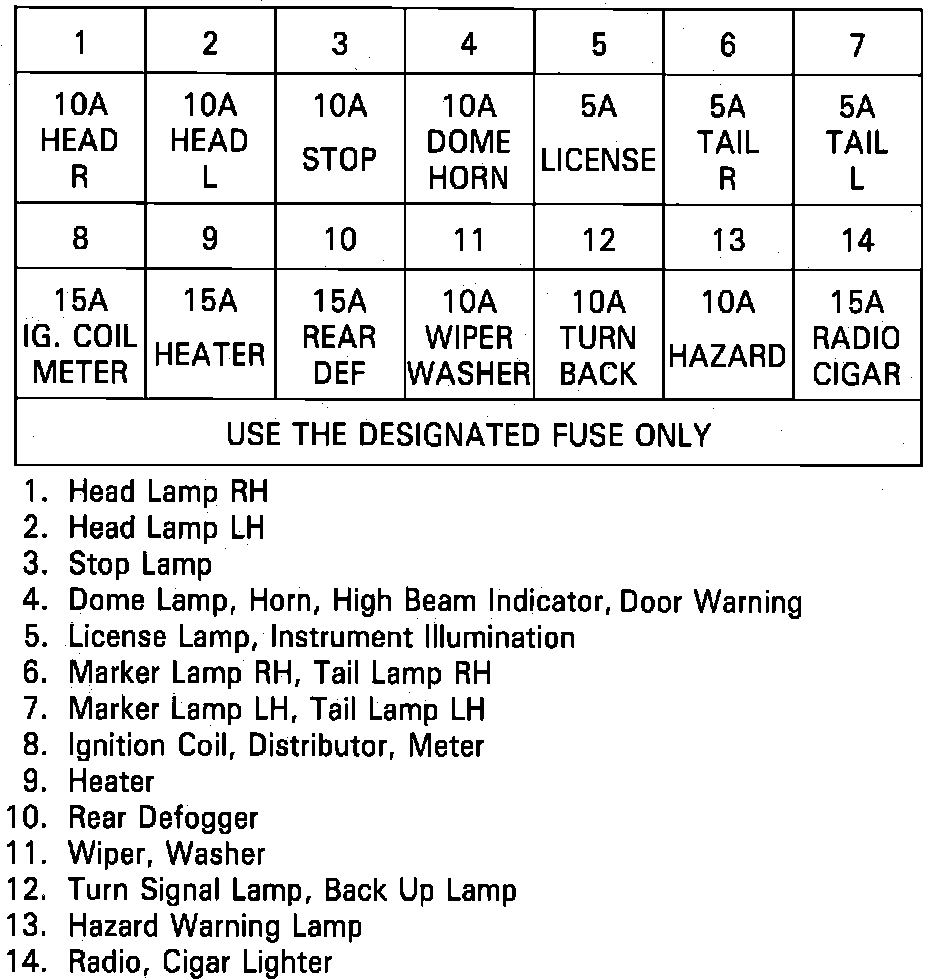

Fig. 001 Fuse Panel:





The fuse panel is located on the left side of the dash panel, to the left of the steering column.
