Manifold Pressure/Vacuum Sensor: Service and Repair

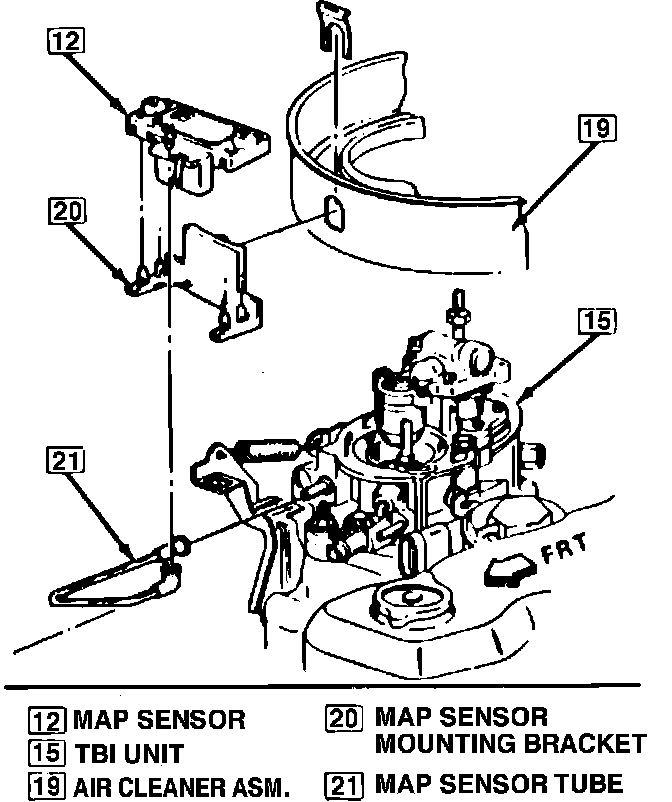

Fig. 337 MAP Sensor Removal (V6 Models Similar):

The MAP sensor unit is not serviceable and must be replaced as a unit.

1. Disconnect vacuum hose from MAP sensor, then remove top of air cleaner assembly.
2. Remove MAP sensor unit retaining clip, then the sensor, Fig. 337.
3. Reverse procedure to install.
