CS-144 Series Alternators

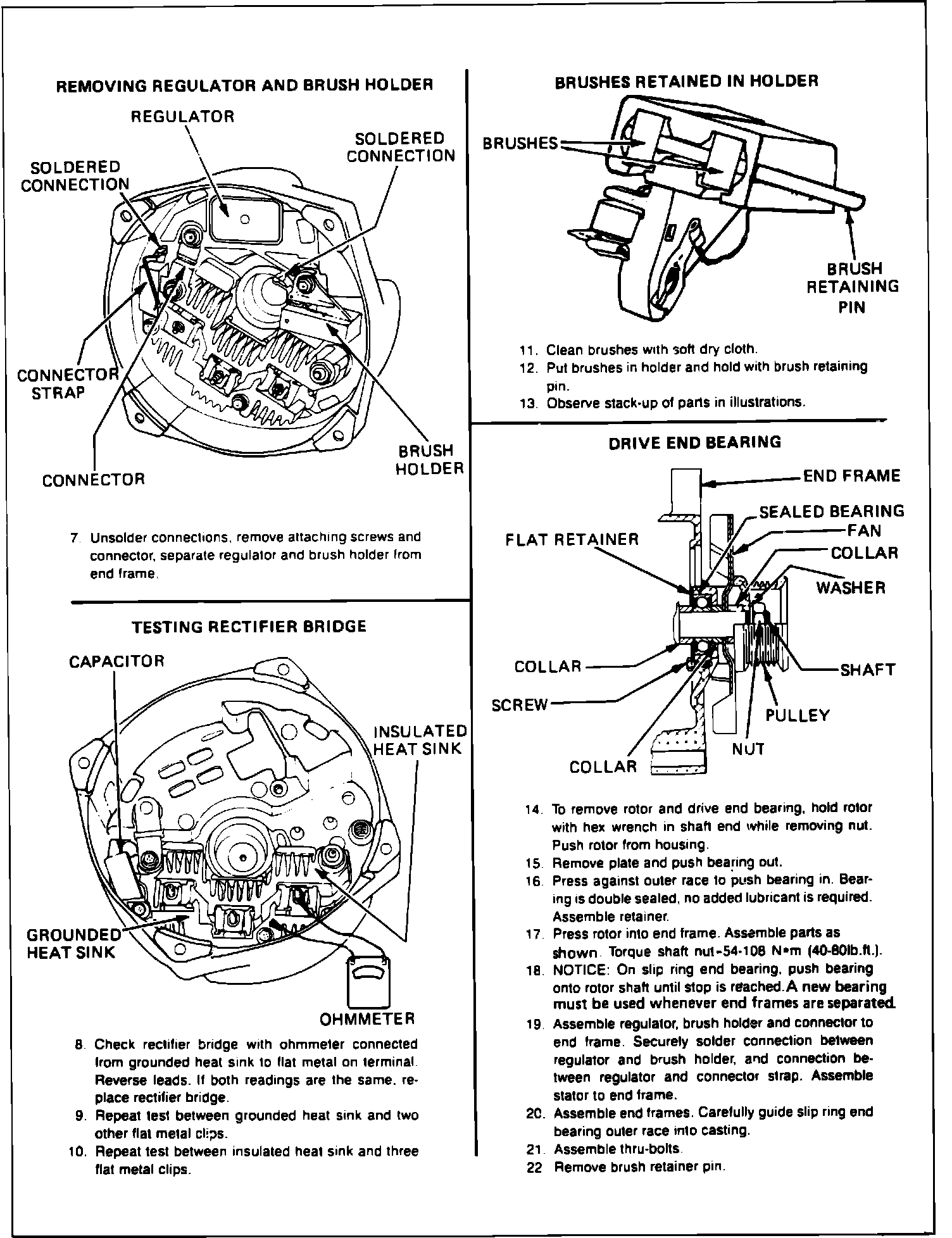

Testing Of CS Series Alternators - Part 1 Of 3:

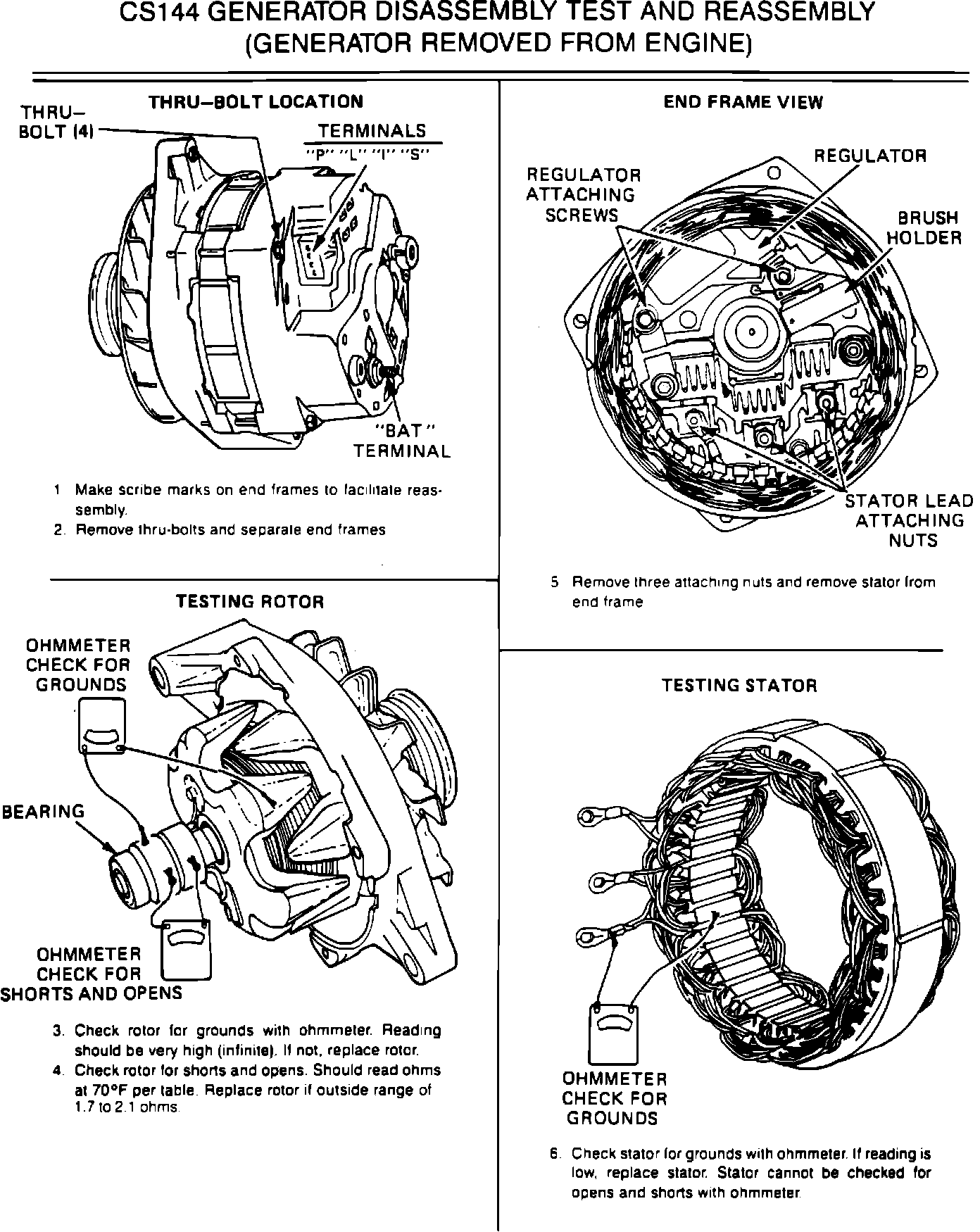

Testing Of CS Series Alternators - Part 3 Of 3:

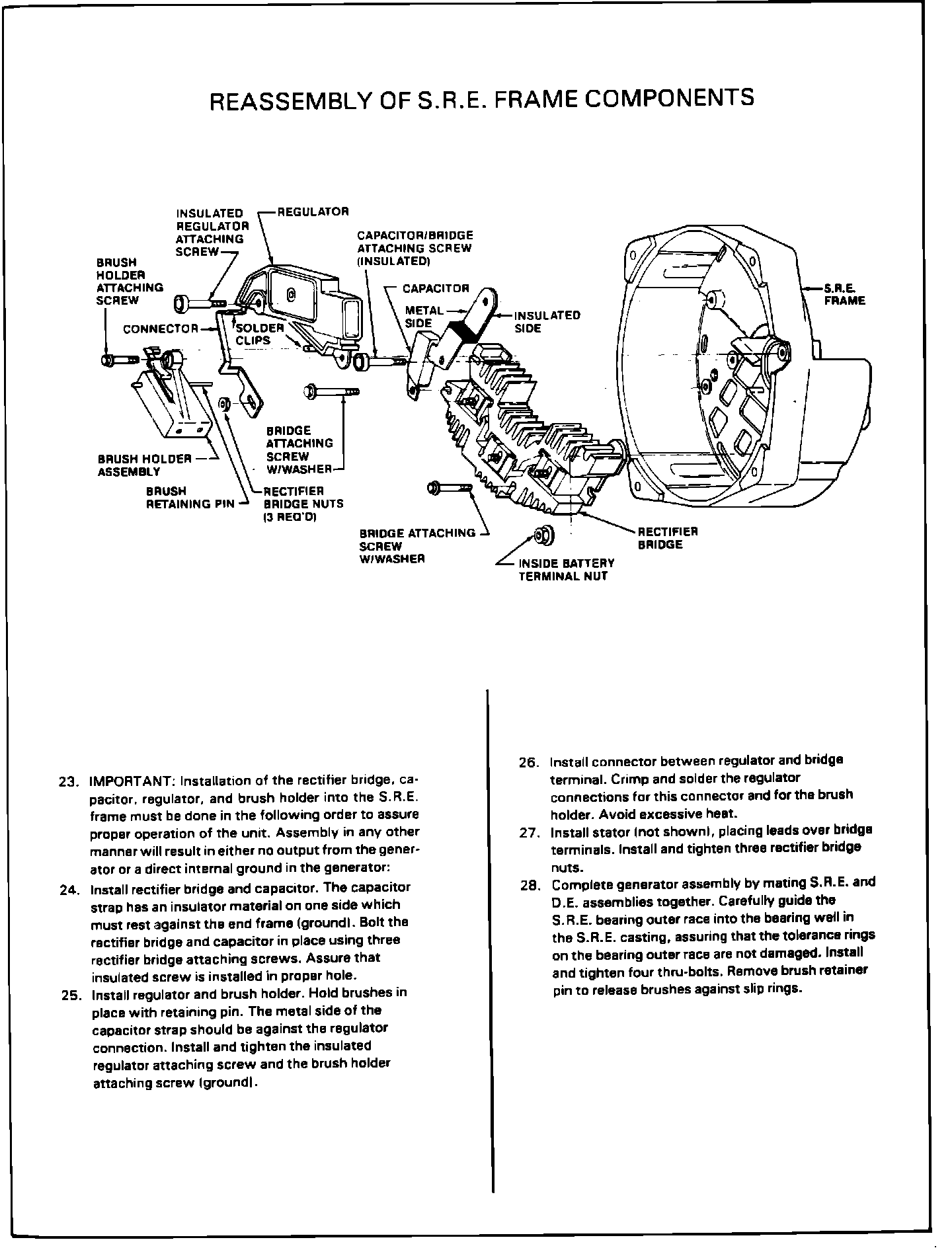

Testing Of CS Series Alternators - Part 2 Of 3:
