Weather Pack

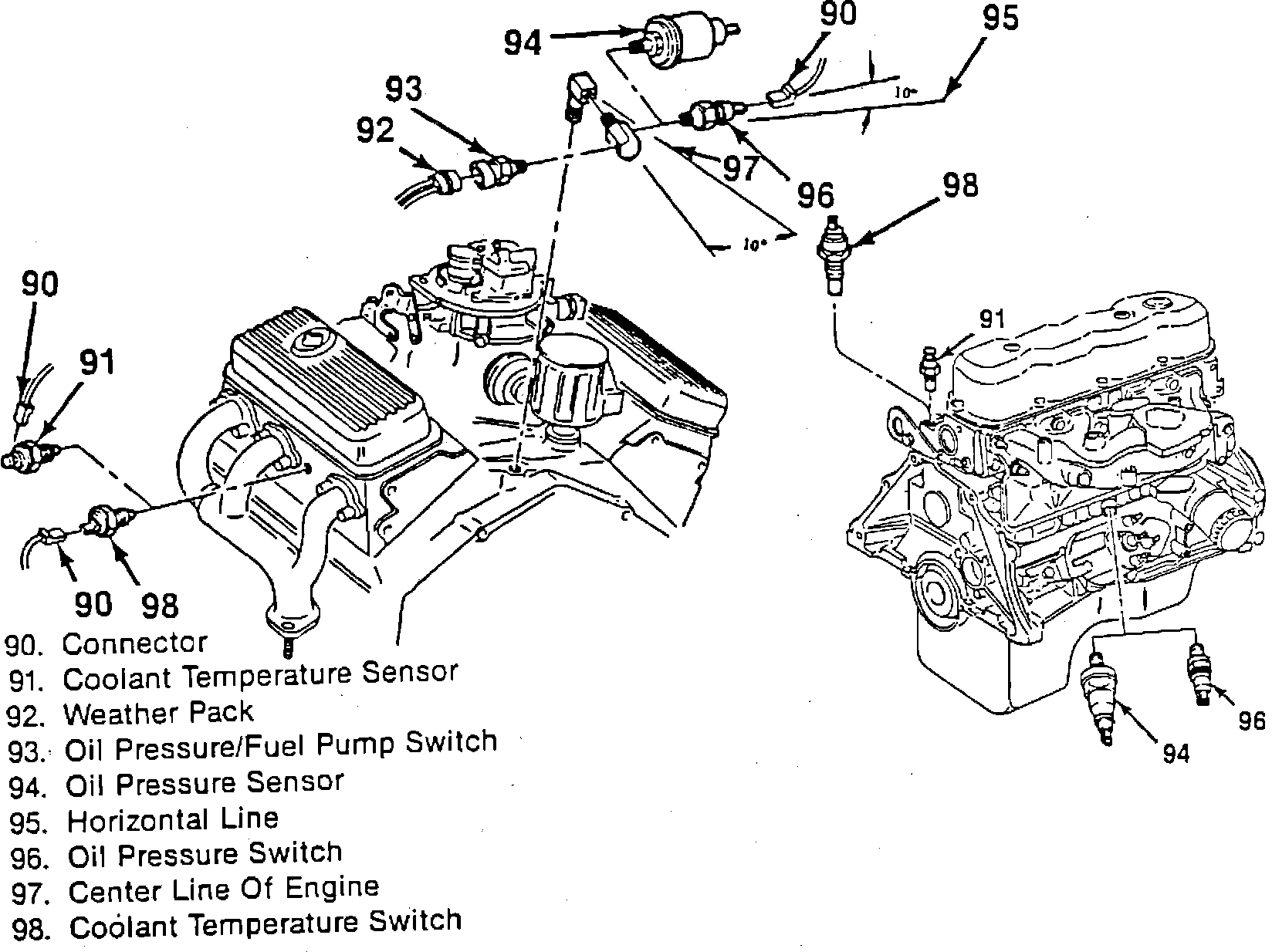

Coolant Temperature & Oil Pressure Sender Locations.:
Near Throttle Body
Applicable to: 1986 Astro Van & Safari
