Compressor Controls

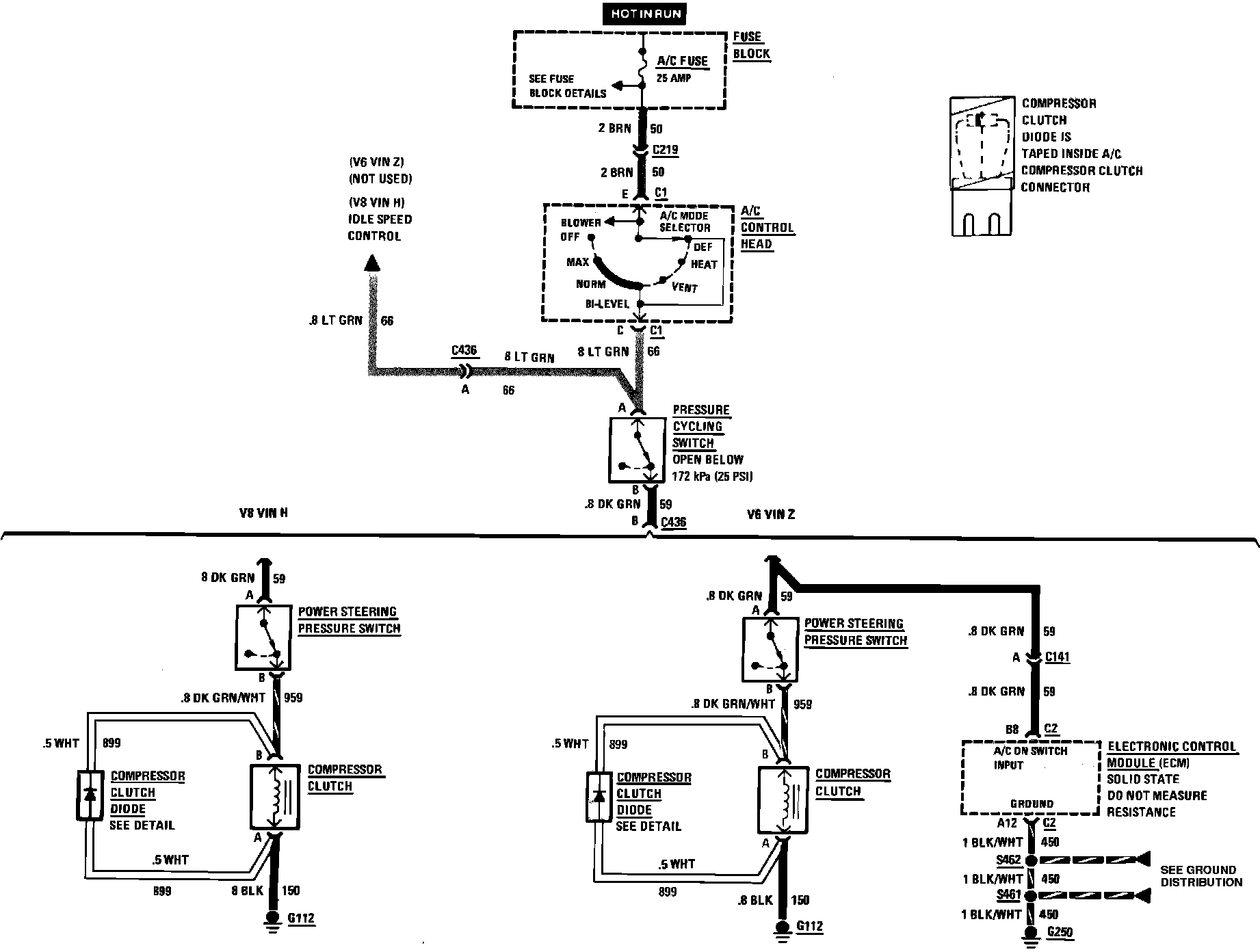

A/C Compressor Controls Wiring Circuit (W/V6-262/4.3L & V8-305/5.0L VIN H Engine):
