Th-700-R4


700-R4 Specifications

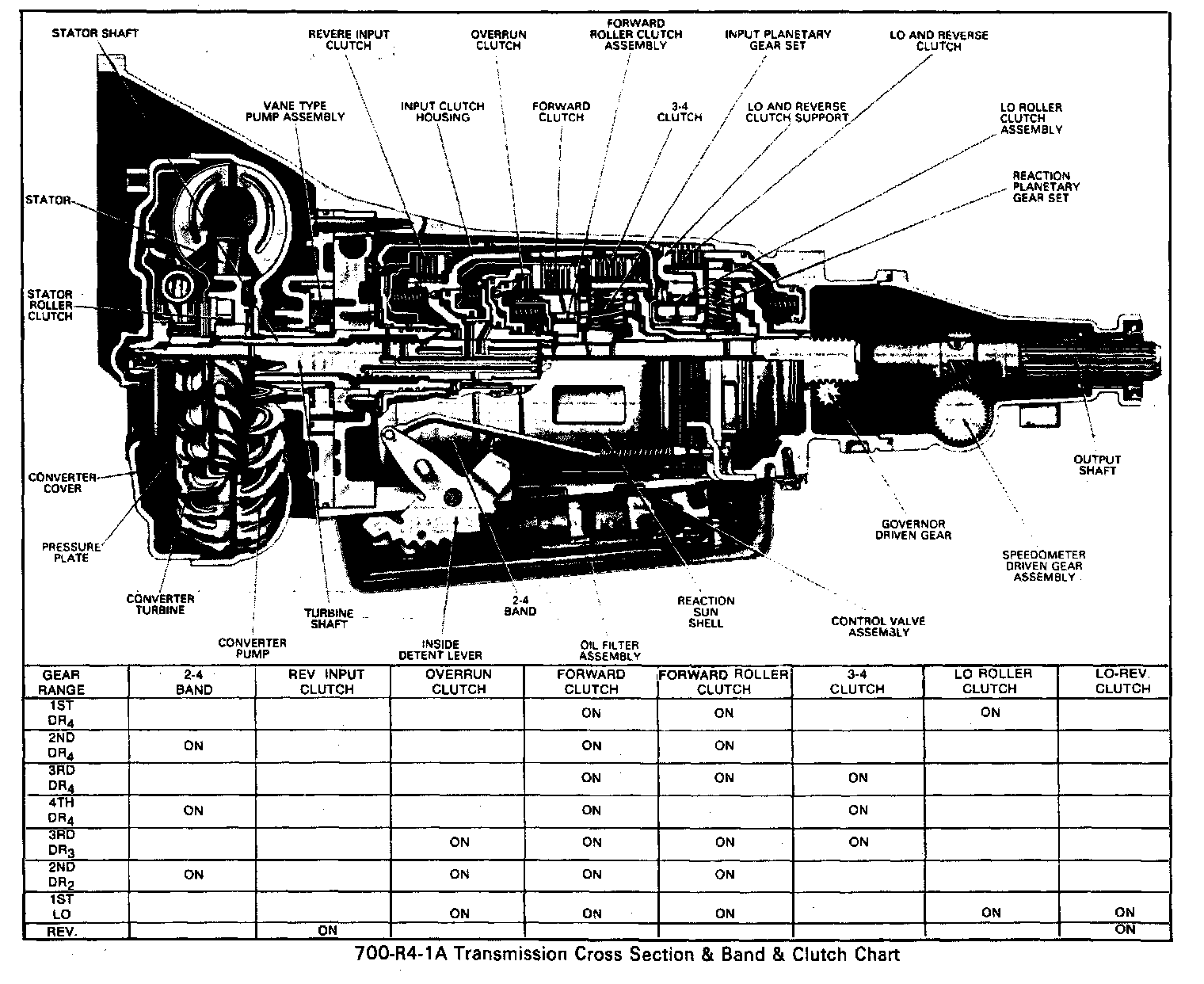

Transmission Cross Section & Band & Clutch Chart:





GEAR RATIOS

FIRST 3.06

SECOND 1.62

THIRD 1.00

FOURTH .70

REVERSE 2.29

Forward Clutch Plate Chart:





3-4 Clutch Plate Chart:





Backing Plate Selection Chart:
