Without Speed Density Update

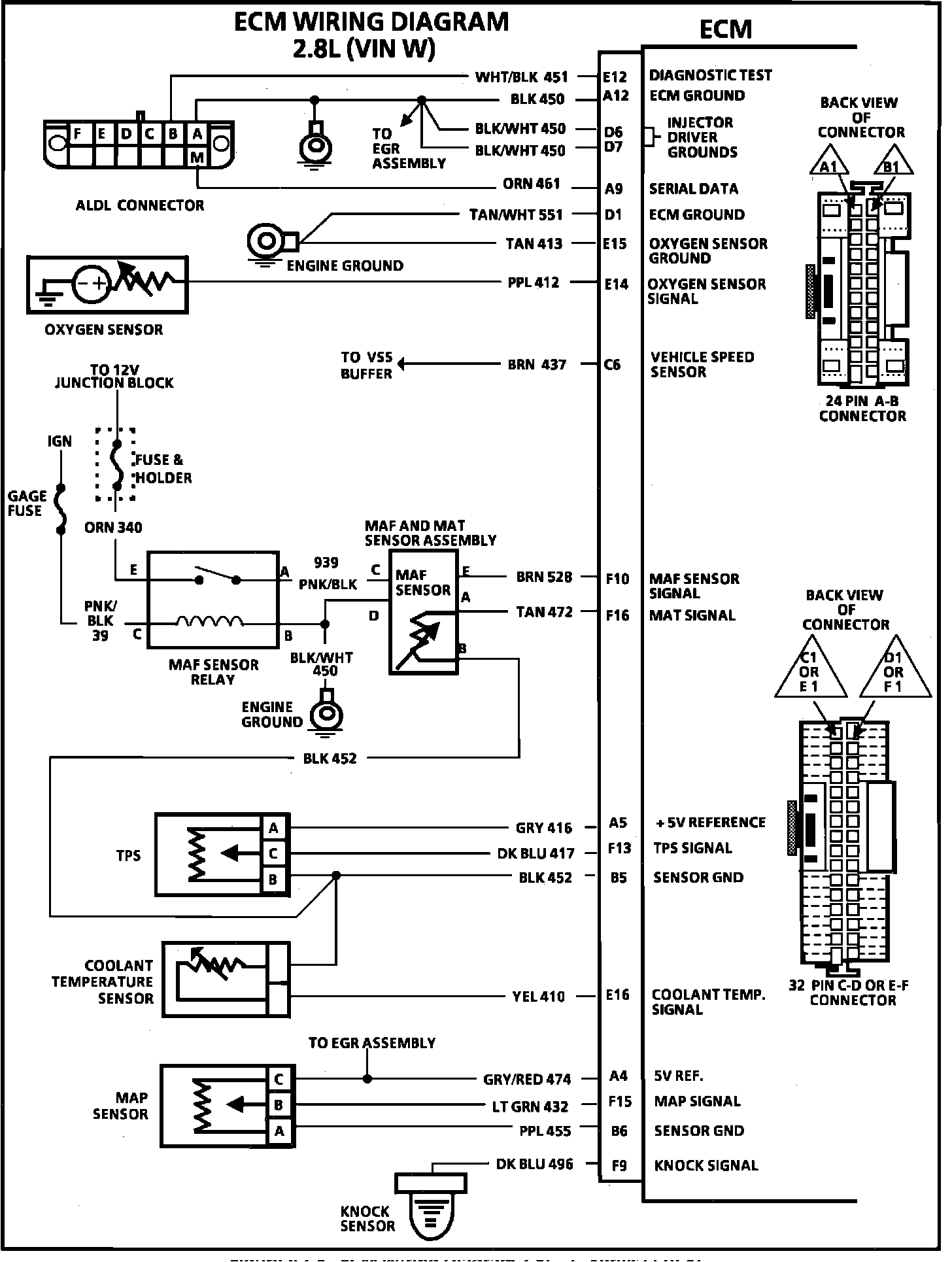

ECM Wiring Diagram (Part 1 of 3):

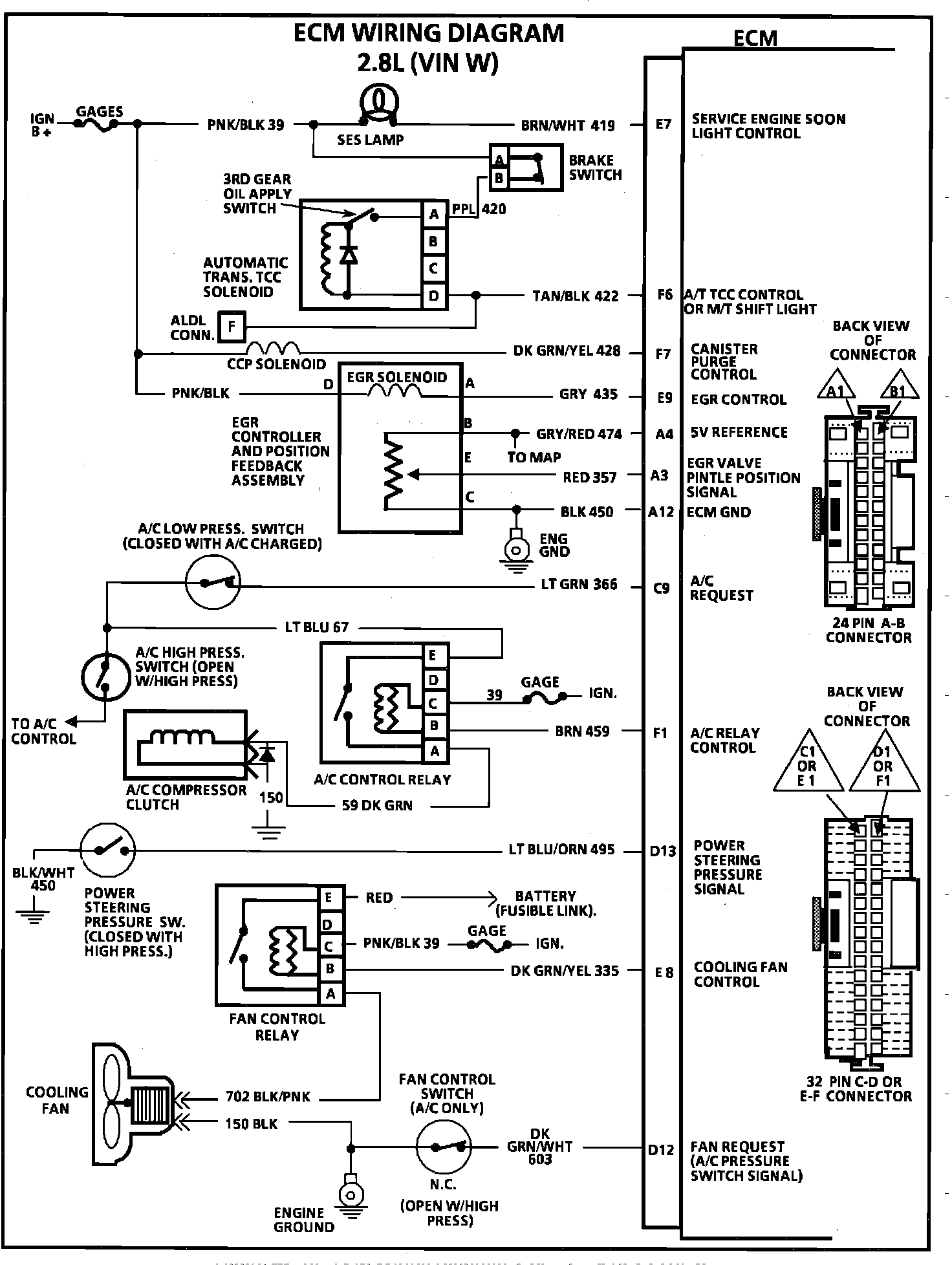

ECM Wiring Diagram (Part 2 of 3):

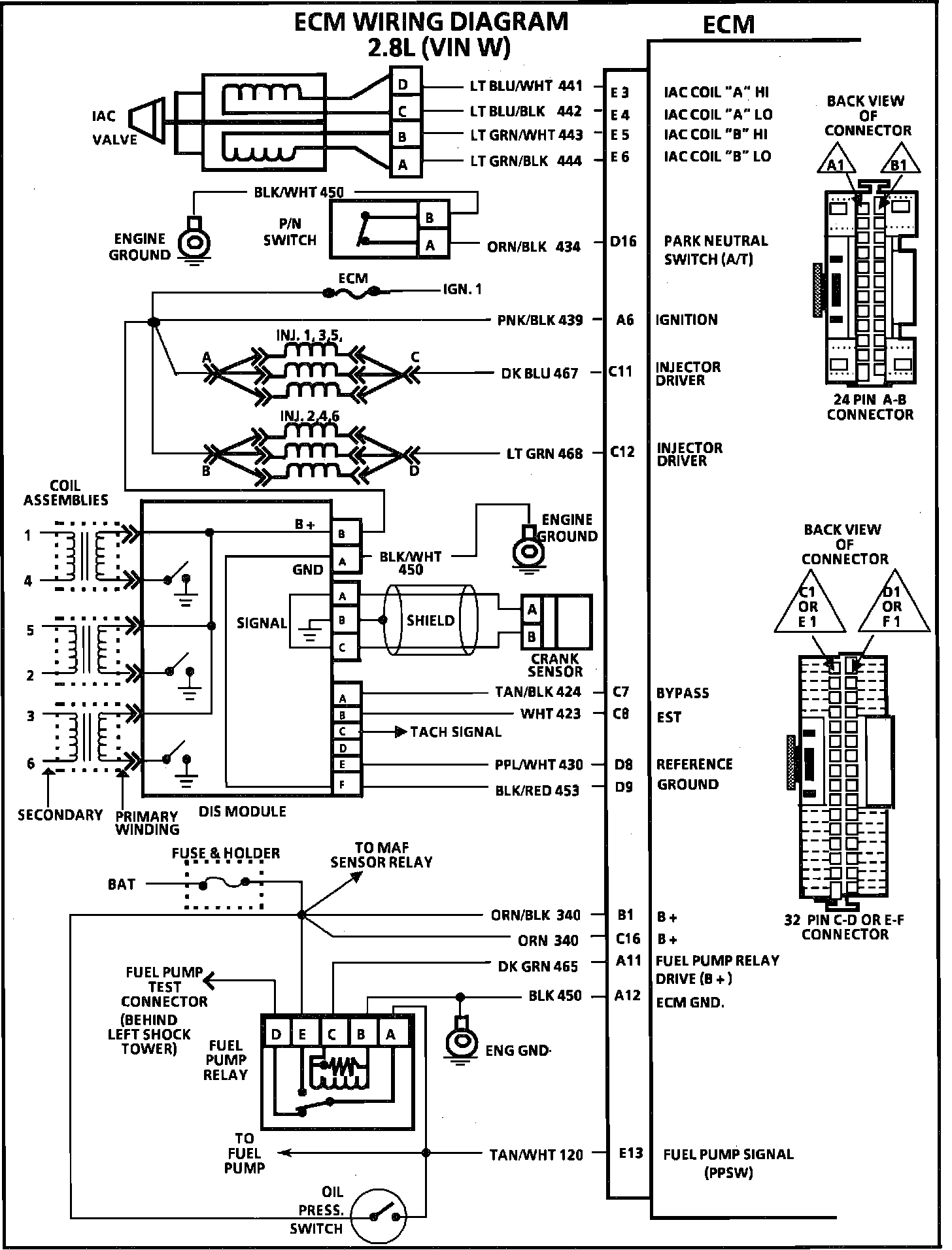

ECM Wiring Diagram (Part 3 of 3):
