Home
>>
Chevrolet
>>
1987
>>
Chevette 4D Hatchback, Standard, MB4
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Feedback Carburetor Tests W/Codes
>>
Component Locations
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Locations

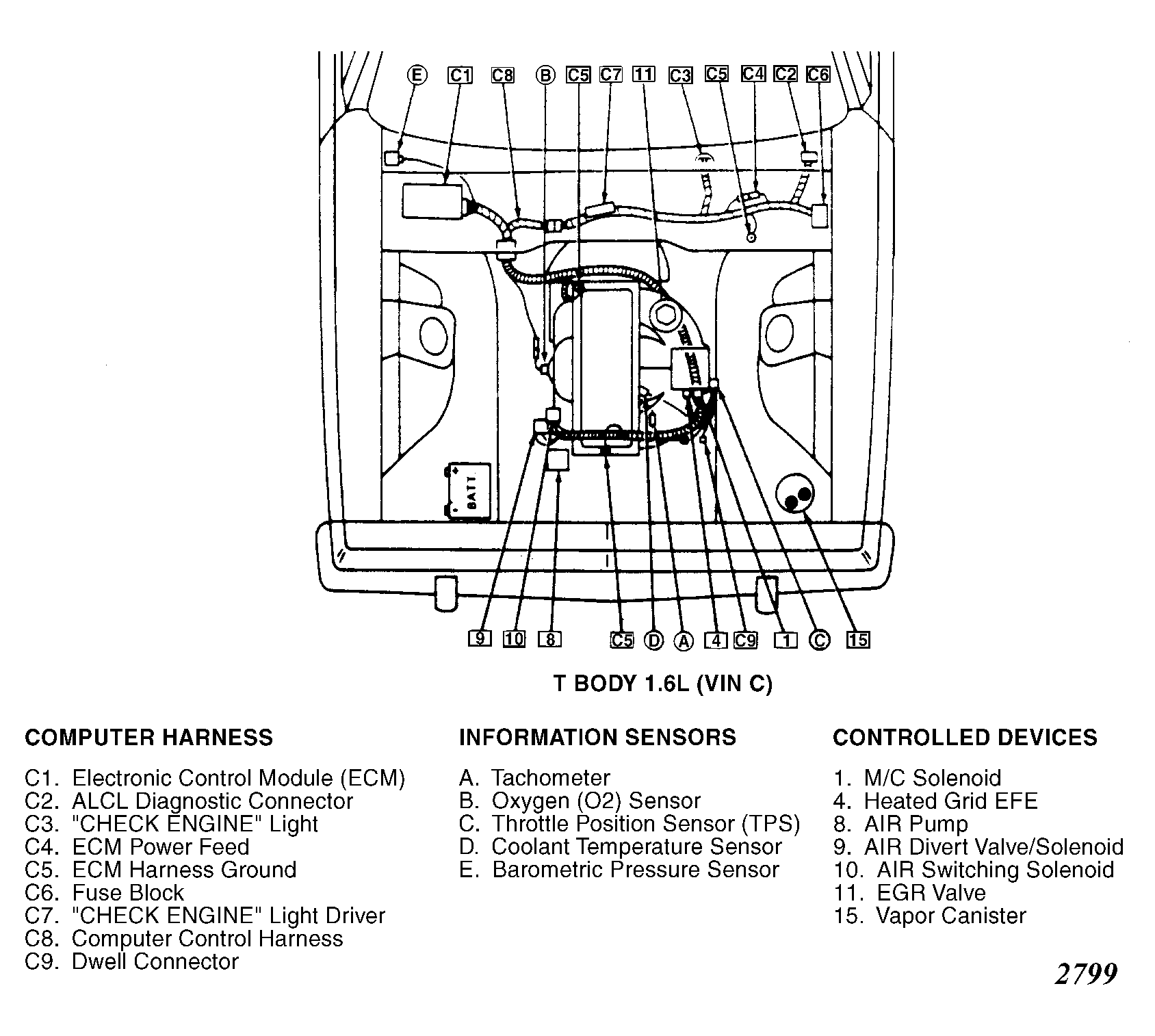

Fig 1: Component Locations For 1.6L Engines
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
